Railway Wheel and Axle: Comprehensive Dimensional & Engineering

The wheelset (wheel + axle) is the most critically stressed component on a railway bogie, directly impacting operational safety. The vast differences in operating speed, axle load, traction, and braking methods across various rolling stock dictate entirely distinct technical routes for wheels and axles. This paper systematically breaks down the structural, dimensional, material, and manufacturing differences across four major categories: High-Speed EMUs, Conventional Passenger Coaches, Freight Wagons, and Diesel/Electric Locomotives.

1. Core Differences in Train Wheels (Wheel Body)

A wheel consists of the flange, tread, rim, web (plate), and hub. Structurally, they are divided into monoblock (solid) wheels and tyred wheels (split/assembled) . Monobloc forged wheels offer the highest strength with seamless integration. Tyred wheels allow the outer steel tyre (tire) to be replaced separately when worn, commonly used in heavy-haul and traditional locomotives.

1.1 Four-Type Wheel Parameter Comparison

Key points to remember:

• High-speed EMUs prioritize lightweighting (12–17 t axle load) and heat dissipation.

• Freight wagons prioritize wear resistance and impact strength (21–30 t axle load).

• Locomotives feature the largest diameters to accommodate traction gear mounting.

1.2 Structural Sub-differences

• Monobloc Rolled Wheels (Mainstream for passenger & high-speed): One-piece forging. High-speed versions use thin rims (~50 mm), thin webs (9–15 mm), and thin hubs to reduce unsprung mass. The web shapes (double-curved, corrugated) utilize large radius arcs to minimize stress concentration.

• Tyred Wheels (Locomotives & Heavy-haul): The outer tyre (high-hardness wear-resistant steel) is heat-shrunk onto a cast steel wheel centre. Why use this? When the tyre wears out, you replace only the tyre, not the entire wheel—significantly reducing maintenance costs for heavy-haul operations. However, cast centres are prone to fatigue cracking due to casting defects (porosity, slag inclusion).

• Web Shape Differences:

  • Passenger & EMU: S-shaped or curved elastic webs for vibration damping and noise reduction.

  • Freight & Locomotive: Straight, thick plate webs for maximum vertical load capacity.

  • High-speed: Smooth, flat webs specifically designed with mounting holes for brake discs.

1.3 Tread Profile and Flange Geometry (Crucial for Curving)

What is the difference between passenger and freight wheel profiles?

• High-speed EMUs: Utilize wear-resistant profiles like LMA/S1002CN. Equivalent conicity is precisely calculated to suppress hunting instability at 350 km/h. Flanges are relatively thinner.

• Conventional Passenger: Standard 1:40 taper, balancing straight-line stability with curve negotiation.

• Freight Wagons: Flanges are higher and thicker (flange height 30–45 mm), with wider treads to prevent derailment under extreme heavy loads.

• Locomotives: Highest flange hardness to withstand frequent starting, stopping, and steep grade traction.

2. Core Differences in Train Axles

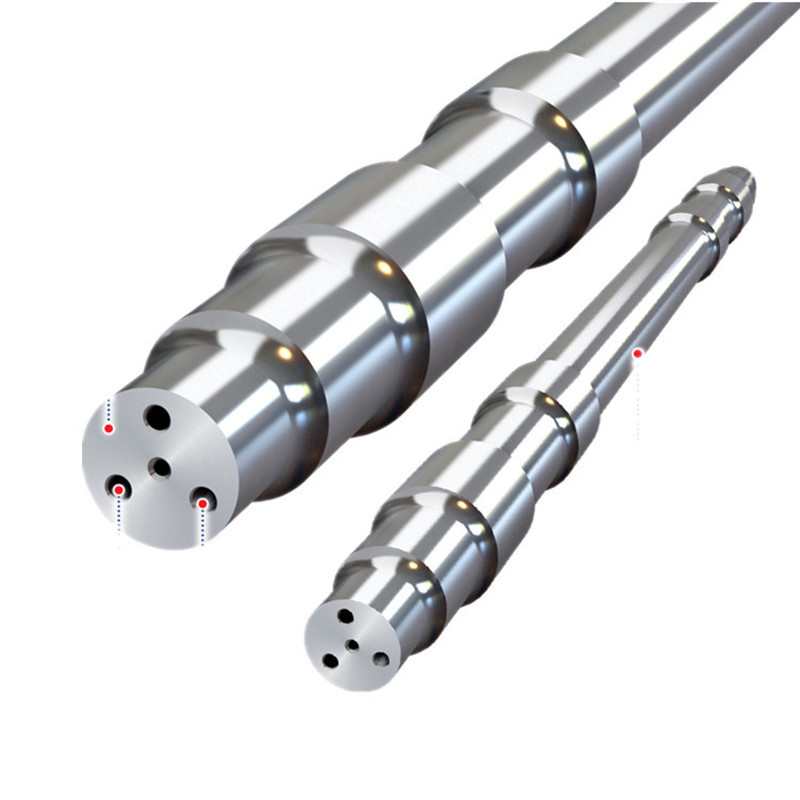

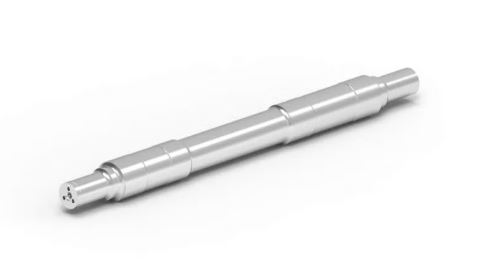

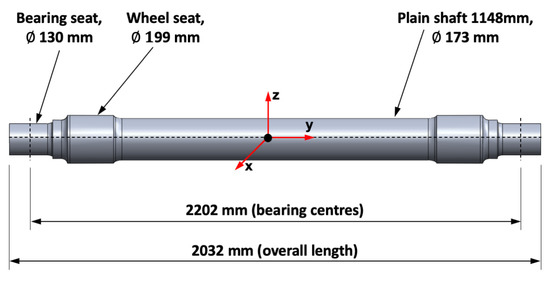

The axle is a solid (or hollow) forged steel shaft divided into segments: Journal (bearing fit), Dust guard seat, Wheel seat (press-fit for wheel), Axle body, and Gear seat (exclusive to powered axles). Dimensions and alloys vary completely by train type.

2.1 Four-Type Axle Parameter Comparison

2.2 Powered vs. Non-Powered Axles (The Biggest Difference)

• Powered Axles (EMU motors & Locomotives): Feature a significantly thickened gear seat in the middle of the axle body, where the traction gear is mounted. The motor transmits torque through the gear to the axle, which then drives the wheels. Cross-sections and fillets are heavily reinforced to prevent torsional fatigue fracture.

• Non-Powered Axles (Trailing passenger cars, Wagons): The axle body is smooth without gear steps. These axles bear only vertical static and dynamic loads (bending stress) and do not experience torsional stress. Therefore, they are structurally simpler and thinner.

2.3 Material Selection and Fatigue Life

• EMU Axles (EA4T / 30NiCrMoV12): High-strength low-alloy steel, vacuum degassed, quenched and tempered. The hollow design reduces unsprung mass while allowing internal ultrasonic inspection. Wheel-seat diameter is typically designed at a ratio of 1.15–1.16 relative to the adjacent axle body to optimize fatigue limits. Fatigue life exceeds 10⁹ cycles (millions of kilometers).

• Freight Axles (LZW): Carbon forged steel. Cost-effective and high load-bearing, but fatigue life is significantly lower. Mandatory periodic flaw detection intervals are much shorter (e.g., RE2B axle: Journal 150mm, Wheel seat 210mm, Body 184mm).

• Locomotive Axles (42CrMo): Ultra-high strength alloy with excellent hardenability. After quenching and tempering, they offer extreme resistance to combined bending + torsional impact loads. NDT standards are the most stringent in the railway industry.




3. Wheel & Axle Matching: Why They Are NOT Interchangeable

3.1 Wheel Seat Interference Fit Matching

The inner bore diameter of the wheel hub must strictly match the outer diameter of the axle wheel seat. Assembly is done via hydraulic press-fitting (interference fit) . No relative movement between wheel and axle is permitted during operation.

Non-interchangeable examples:

• Freight wagon hub bore: 186 mm (for 840 mm wheel) / 195 mm.

• Passenger coach hub bore: 186 mm (for 915 mm wheel).

• Locomotive hub bore: 229–235 mm (for 1050 mm wheel).

• Rule: The heavy-haul thick axle cannot fit a high-speed small-bore wheel, and vice versa.



3.2 Braking System Compatibility

• Disc Brakes (EMUs & Modern Passenger): The wheel web features integrated flanges for brake disc mounting. Axle length is pre-calculated to accommodate the disc space. Heat dissipation is managed via cooling ribs on the disc.

• Tread Brakes (Older Freight & Locomotives): Brake shoes press directly against the outer circumference of the wheel rim. The axle does not have extended mounting space, resulting in a more compact, simpler structure.

3.3 Axle Load and Dimensional Chain Constraints

Why can't I use a high-speed axle on a freight car?

• Freight single-axle load: 25–30 tons → Wheel and axle bodies are thickened significantly.

• High-speed single-axle load: 12–17 tons → Thin-wall lightweight design.

• This 2x load difference drives completely different wheel-rail contact stress levels, bearing selections (EMU bearings: 130x240 mm; Freight journals: 150 mm), and overall structural integrity requirements.



Conclusion & Core Logic for Engineers

To summarize clearly:

• Wheel differences are dictated by speed, load, and braking:

  • High-speed/Light-load: Small diameter, thin rims, disc-brake flanges, monobloc smooth webs.

  • Heavy-load/Freight: Large diameter, thick rims, thick flanges, tyred structures for wear replacement.

• Axle differences are dictated by torque transmission and axle load:

  • Powered: Gear seats, thick torsional sections, high-alloy steel, hollow for fatigue inspection.

  • Non-powered: Smooth bodies, pure bending stress, carbon steel.

Golden Rule: High-speed/Light-load uses thin, hollow axles with thin monobloc wheels. Heavy-haul/Locomotives use thick solid axles with thick tyred wheels. These two categories are 100% non-interchangeable.

Engineering Recommendation: Designers and maintenance personnel must strictly adhere to specific standards (EMU follows EN standards; Freight follows TB/T standards) for press-fit force, ultrasonic testing intervals, and dimensional tolerances to guarantee wheelset safety and reliability
