1. Descriptiion :

Industry data confirms that a significant number of brake beam failures have occurred in freight car bogies, leading to economic losses and service disruptions. These cracks are typically fatigue cracks caused by dynamic loads produced in the loaded bogie frame, often initiating at weld edges near the central strut. Cracked brake beams have been observed with as little as two years (240,000 km) of service. When a brake beam fails, it can damage the shoe holder, brake shoes, or even the wheel— creating serious safety risks and costly downtime.

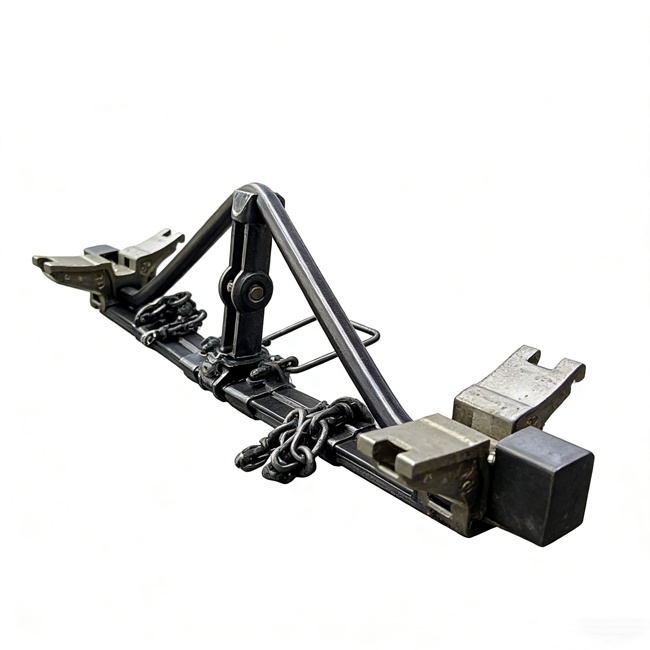

Our AAR S-344 brake beam assembly is engineered to withstand these dynamic loading conditions.

2. The  key specifications of this AAR brake beam

3.  Why does AAR S-344 compliance matter for your brake beam?

AAR S-344 is the definitive North American standard governing brake beam specifications and tests. A brake beam assembly manufactured to this standard ensures:

• Full interchangeability across the North American freight car fleet

• Compliance with AAR Field Manual Interchange Rules — Rule 6 specifically covers brake beam wear limits and renewal criteria

• Verified mechanical performance through standardized testing protocols

• Seamless integration with existing three-piece casting bogie designs

4,  AAR brake beam type for railcar bogie:

Selecting the correct brake beam type ensures proper fitment in your three-piece casting bogie and optimal braking force transmission from the car body to the wheels via the lever device.

5. How does forged construction extend brake beam service life?

• Assembled structure — production quality is better controlled compared with traditional one-piece casting brake beams

• Forged pillar and clip — significantly improves operational reliability under cyclic braking loads

• Non-metal slide wear plate — reduces wear and minimizes inspection frequency

• Slide block structure — improves strength while restraining eccentric wear of brake shoes

• Complete brake beam structure — stress distribution is more reasonable, reducing localized fatigue concentration

The result: extended service life and reduced maintenance costs for your freight car fleet.

6. The quality  requirment of the  this brake beam assembly :

• AAR S-344 — Full compliance with North American brake beam specifications and tests

• TB/T 1978 — Compliance with Chinese railway industry standard for freight car brake beams

• 30-ton load testing machine — used for conducting load tests during production

• Hardness testing — capable of measuring hardness up to 500 BHN

• Full traceability — from casting stage to finished product

Every brake beam assembly is dimensional-checked with specialized gauges and measu
