Railway Tie Plates, Baseplates & Track Sole Plates

1. Product Overview & Functional Applications

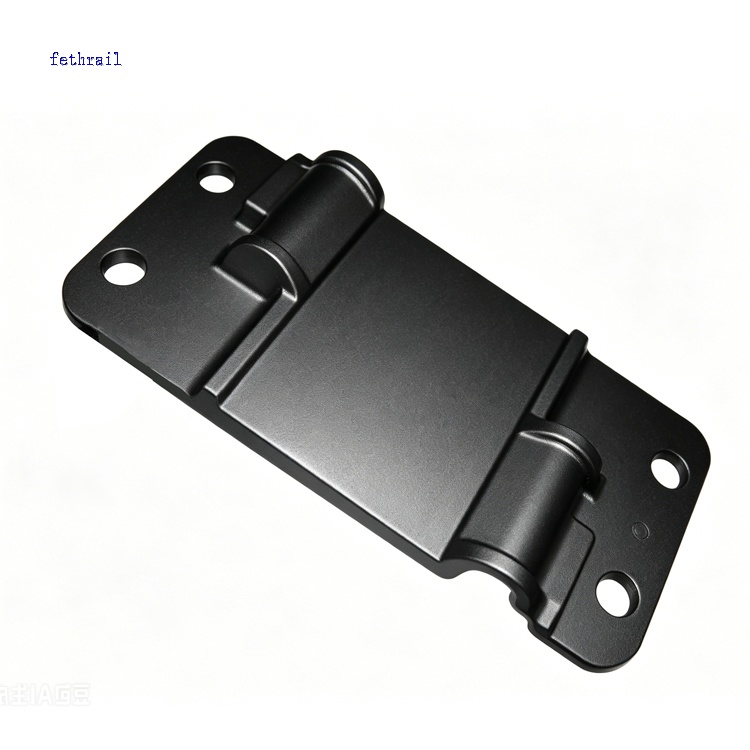

A railway tie plate—alternatively referred to as a baseplate or sole plate—is a foundational safety component used in track and crane rail construction to firmly support, align, and secure the rails. THRAIL specializes in premium rail fastening systems, engineering high-performance tie plates designed to bear heavy vertical and lateral axle loads and distribute them evenly across the track substructure.

Key Functions:

• Load Distribution: Spreads heavy operational rail loads across sleepers (wooden, steel, or concrete) and ballast-less tracks, preventing localized crushing and offering proven track lifecycle economies.

• Alignment & Flat Resting Surface: Provides the rail with an perfectly flat, smooth resting surface while ensuring strict vertical and gauge alignment of the track or crane rail system.

• Fastening System Integration: Serves as the anchoring platform for the entire fastening setup, hosting either boltable clips, weldable clips, or 'K' type fastening systems.

2. Manufacturing Capabilities & Engineering Options

THRAIL accommodates various load criteria, rail profiles, and track types by offering versatile engineering and manufacturing processes:

• Material Selection: Available in high-grade Cast Iron or Cast Steel depending on the specific axle-load demands and rail categorization.

• Fastening Integration: Designed to work seamlessly with elastic fastenings, boltable clips, or weldable clips. For weldable and base clips, the bottom of the clip is precision-welded onto the sole plates prior to the hot-dip galvanizing (FVZ) process.

• Anchoring & Grouting: Plates feature precisely drilled holes for anchor bolts (holding down bolts) and leveling bolts. For track or crane rail support structures, sole plates are typically installed with a specialized grout layer cast underneath to fill any structural voids against the concrete foundation.

• Rail Profile Compatibility: Fully customizable to suit global standard rail sections, including UIC 60, UIC 54, S 49, RN 45, 90 A, and many more. We support both continuous and discontinuous support configurations (including ribbed tie plates).

3. Quality Control & Certifications

Adhering strictly to a "Quality First" directive, THRAIL maintains rigorous quality control management across our entire production line:

• Certifications: Fully accredited with ISO9001-2008 quality management certificates.

• Official Approval: Granted the official production license from China's Railway Ministry for safety-critical railway products.

• Testing Infrastructure: Equipped with a comprehensive suite of mechanical and dimensional inspection instruments to guarantee that every plate matches client-specified tolerances and international rail standards.

4. Technical Specifications & Product Selection Matrix

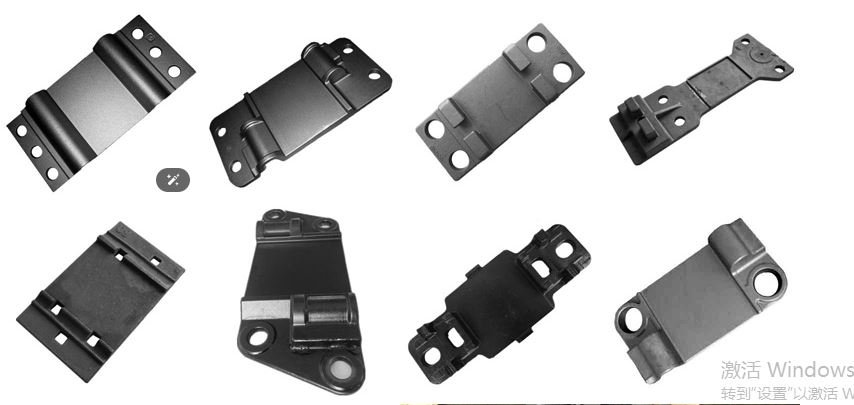

Below is a selection of verified tie plate configurations manufactured by THRAIL to suit diverse international track architectures:
