Engineering Specifications of AAR Coupler Yokes

1. SEO Metadata

• SEO Title: AAR Coupler Yokes Technical Guide | Grade E Steel Yokes for Type E & F Couplers

• Meta Description: Technical analysis of AAR coupler yokes, including Y40, Y45, and Y49 models. Learn about AAR M-211 material standards, metallurgy, and coupler-to-yoke compatibility.

• Primary Keywords: AAR Coupler Yoke, Railway Yoke, Grade E Cast Steel, Y45AE Yoke, Y49HT Yoke, Draft Gear Yoke, AAR M-211 Standard.

2. Functional Role of the Yoke

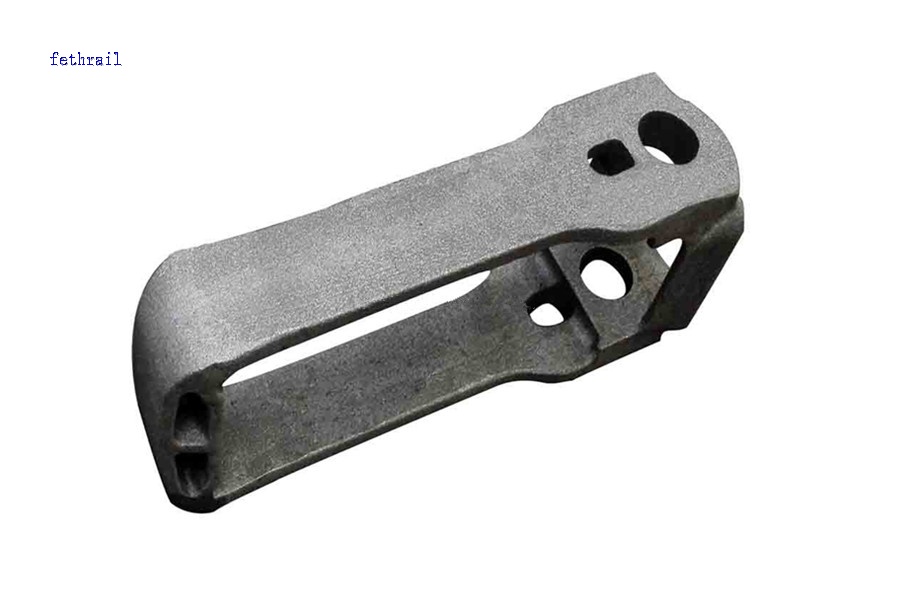

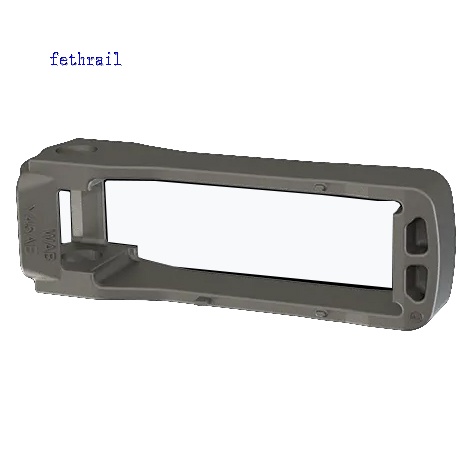

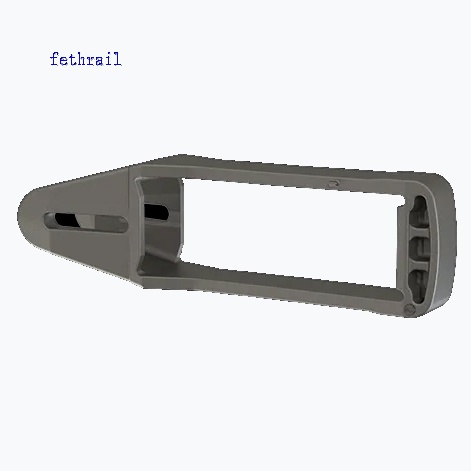

The AAR Coupler Yoke is a high-strength structural frame that encases the Draft Gear and connects it to the coupler shank via a yoke pin or radial pin. Its primary function is to translate longitudinal draft (pulling) forces from the coupler into the draft gear, which then dissipates the energy into the car's center sill.

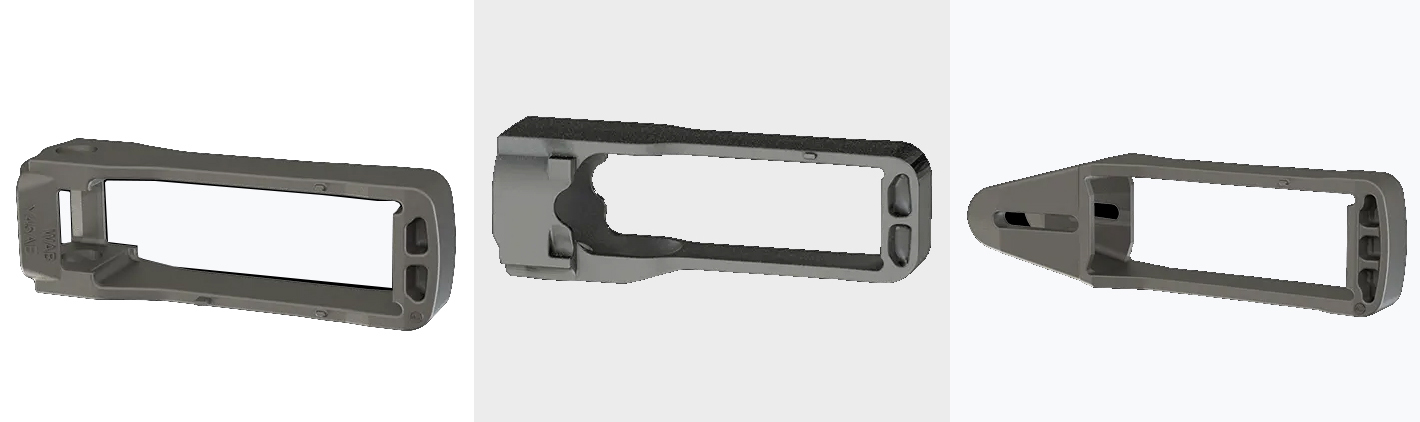

3. Compatibility Matrix: Couplers and Yokes

To optimize for technical searches, the following table defines the industry-standard pairing of AAR couplers with their respective yokes:

4. Material Specifications & Metallurgy

The structural integrity of a yoke is determined by its ability to withstand massive tensile loads without permanent deformation.

4.1 AAR Grade E Cast Steel

In accordance with AAR M-201 and M-211, all heavy-duty yokes are manufactured from Grade E Steel.

• Yield Strength: $\ge 690 \text{ MPa}$ ($100,000 \text{ psi}$)

• Tensile Strength: $\ge 827 \text{ MPa}$ ($120,000 \text{ psi}$)

• Elongation: $\ge 14\%$

• Hardness: $241 - 311 \text{ HBW}$

4.2 Heat Treatment Protocol

To achieve the required fracture toughness, every yoke undergoes a rigorous heat treatment cycle:

1. Normalizing: Refining the grain structure after casting.

2. Quenching & Tempering: Enhancing the strength-to-toughness ratio to ensure performance in extreme cold (down to $-40\text{°C}$).

5. Technical Standards & Compliance

For B2B trust-building, the following standards are strictly adhered to:

• AAR M-211: The definitive specification for the purchase and acceptance of AAR steel castings.

• AAR M-212: Standards for reconditioning and secondary inspection of yokes.

• AAR S-143: Dimensional and design standards for Type E Coupler Yokes.

• AAR S-149: Dimensional and design standards for Type F Coupler Yokes.

6. Engineering Design Features

6.1 Strategic Reinforcement

Modern yokes feature increased cross-sectional thickness at the nose (front) and butt (rear) sections. These "High-Stress Zones" are reinforced to prevent elongation of the yoke pin hole under high-tonnage draft forces.

6.2 Precision Machining

Critical contact surfaces, particularly the internal draft gear pocket, are precision-machined to ensure a clearance-fit with the draft gear. This prevents "cocking" of the gear, ensuring uniform energy absorption.

6.3 Non-Destructive Testing (NDT)

To ensure "Zero-Defect" reliability, yokes undergo:

• Magnetic Particle Inspection (MPI): To detect surface fissures in radius corners.

• Ultrasonic Testing (UT): To verify internal casting soundness.

• Radiographic Testing (RT): Conducted during initial production runs to validate the casting process.

7. Maintenance and Replacement Indicators

AAR interchange rules require the replacement of yokes if:

• The yoke pocket has elongated beyond the AAR S-143 limit.

• Cracks are detected in the strap or nose sections through MPI.

• Wear on the bottom strap exceeds $25\%$ of the original thickness.
