Railway Axle Boxes for Russia: GOST Standard Solutions for Harsh Environments

In the demanding rail networks of Russia and the Commonwealth of Independent States (CIS), the Axle Box is a safety-critical component of the undercarriage. Our products are specifically engineered for the 1520mm gauge system, strictly adhering to GOST 31334 and GOST 4491 technical specifications to ensure stability and reliability in extreme climates.

1. Technical Specifications & Material Integrity （Букса and ）

The operational environment in Russia, particularly in Siberia, demands extreme low-temperature impact toughness:

• Material Grade: Manufactured from premium 20L and 20GL cast steel or high-strength forged steel. These materials undergo specialized low-temperature treatment to maintain structural integrity in Arctic conditions as low as -60°C.

• Manufacturing Excellence: We utilize precision casting or integral forging processes to eliminate internal porosity, ensuring maximum fatigue resistance under heavy-haul loads (23.5t or 25t axle loads).

• System Compatibility: Perfectly compatible with the standard 18-100 bogie and modern high-capacity freight wagons used across the RZD (Russian Railways) network.


  Parameter	Specification
  Bogie Model	18-100 (three-piece freight bogie)
  Track Gauge	1520mm / 1524mm
  Axle Load	22.5T
  Bogie Dimensions (L×W)	2863 × 2590 mm
  Bogie Frame Service Life	30 years (before bolster discarding)
  First Depot Repair	2 years
  First Overhaul	8 years

2. Compliance with GOST & CIS Standards

Our production process is certified to meet the rigorous access requirements of the 1520mm rail network:

• GOST 31334-2007: Technical specifications for railway axles and axle boxes.

• GOST 4491-86: Technical requirements for steel castings for railway rolling stock.

• Safety Certification: Compliant with RZD safety standards and regional railway regulatory requirements.

3. Key Components & Integration

A complete Russian-standard axle box assembly consists of several precision-engineered parts:

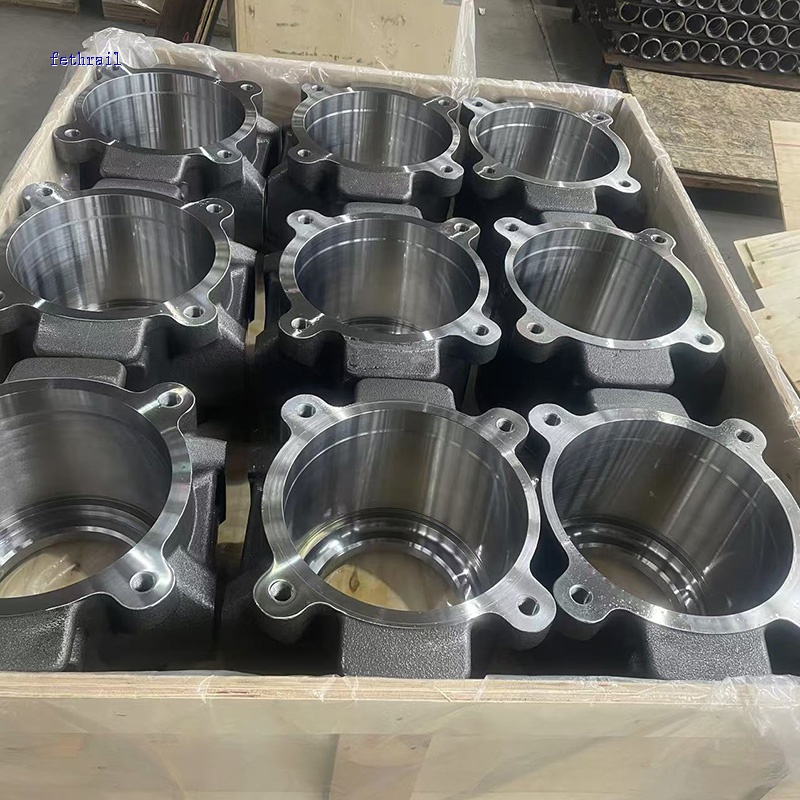

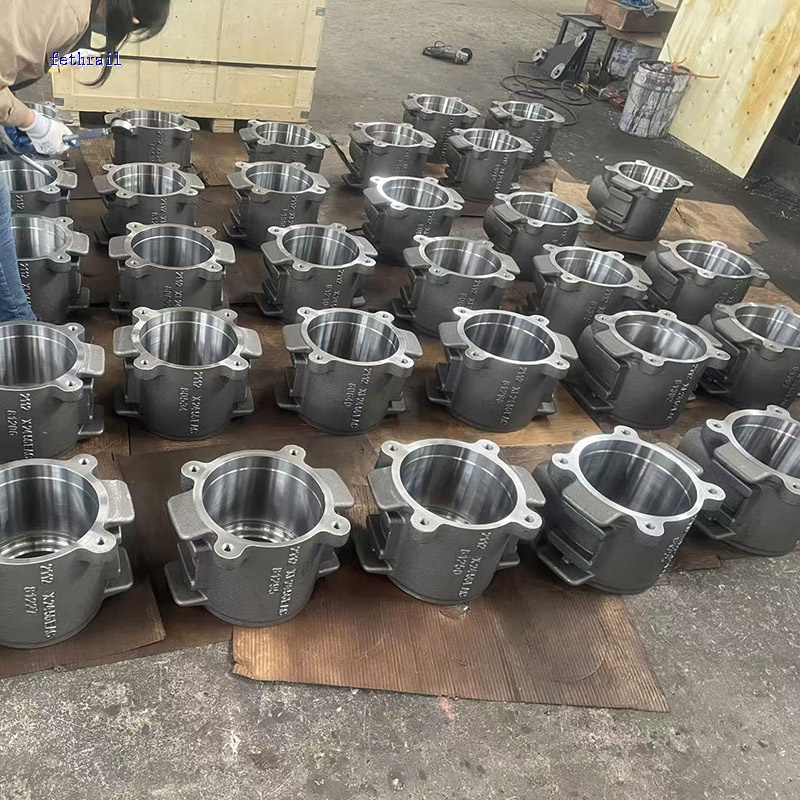

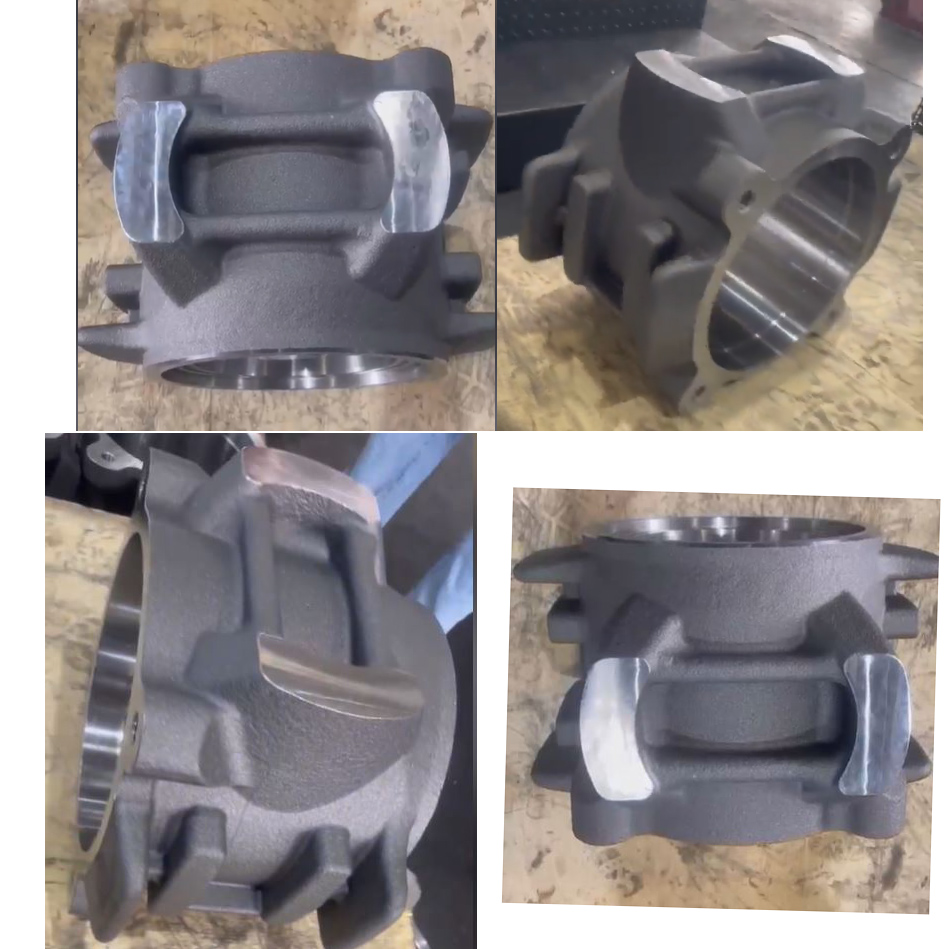

• Axle Box Housing: Designed with superior thermal conductivity to prevent bearing overheating.

• Labyrinth Ring: An advanced dust-proof design that prevents fine particles, ice, and snow from entering the bearing chamber.

• Front & Back Covers: High-sealing performance to ensure zero grease leakage and long-term lubrication.

• Adapter / Saddle: The critical load-transmitting interface between the axle box and the bogie side frame.


  Component	Drawing No.	Function
  Axle Box Housing	100.10.009-0 / 100.10.014-0 / 100.10.020-0	Main cast steel body; houses bearing assembly
  Labyrinth Ring	100.10.007-0	Prevents dust, dirt and moisture from entering bearing area
  Fixed Cover	100.10.002-0	Secures bearing from outboard side
  End Cover	100.10.003-0	Protects bearing from inboard side
  Belleville Washer	100.10.051-0	Provides preload and absorbs axial play
  Lock Washer	100.10.052-0	Prevents loosening of fasteners

4. Operational Advantages: Built for Extremes

• Arctic Resilience: Specifically engineered for the Russian winter to prevent brittle fracture and material cracking.

• Heavy-Haul Capability: Optimized for continuous operation under 23.5-ton and 25-ton axle load requirements.

• Extended Maintenance Intervals: Improved internal oil flow and sealing structures significantly reduce maintenance frequency and operational costs.

5. Applications

• Russian Freight Wagons: Including gondola cars, tank cars, and flat cars.

• Maintenance & Overhaul: OEM-quality spare parts for RZD and private fleet operators.

• Locomotive Axle Boxes: High-tensile housings for electric and diesel-electric locomotives with high tractive effort.
