Technical Specification: AAR Standard Railway Coupler Followers

In the railway draft gear system, the Coupler Follower (Follower Plate) is a critical load-bearing component positioned between the coupler shank and the draft gear, housed within the yoke. Its primary function is to uniformly transmit longitudinal buff and draft forces to the cushioning unit, protecting the wagon's underframe structure.

1. Material & Manufacturing Standards

• Material Grade: Manufactured from AAR Grade E high-tensile cast or forged steel (compliant with AAR M-201 / M-211).

• Heat Treatment: Subjected to a specialized Quenching and Tempering (Q&T) process, achieving a Brinell hardness of 241-311 HBW for an optimal balance of surface durability and core impact toughness.

• Precision Finishing: CNC-machined bearing surfaces ensure flat, uniform contact with the draft gear and coupler butt to prevent localized stress concentration.

2. Core Models and Coupler Compatibility

According to Association of American Railroads (AAR) design specifications, the follower model must strictly match the coupler type and yoke configuration. Below are the three most prevalent models in the global market:

A. Y44 Follower

• Matching Coupler: AAR Type E Coupler (The global standard for freight wagons).

• Yoke Compatibility: Used with the Y40 Yoke.

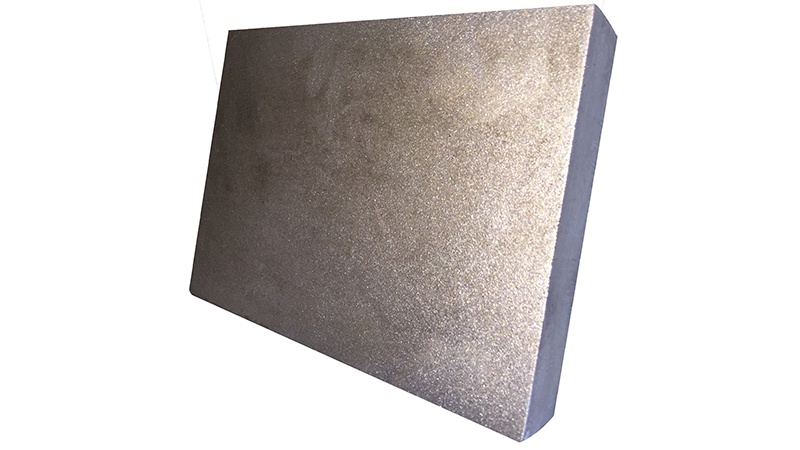

• Technical Detail: The Y44 is the most common follower. Its thickness and geometry are precision-engineered to provide the necessary travel clearance for Type E couplers during draft (pulling) operations.

B. Y46 Follower

• Matching Coupler: AAR Type F Coupler (Interlocking/Rotary or Non-Rotary type).

• Yoke Compatibility: Used with the Y45 Yoke.

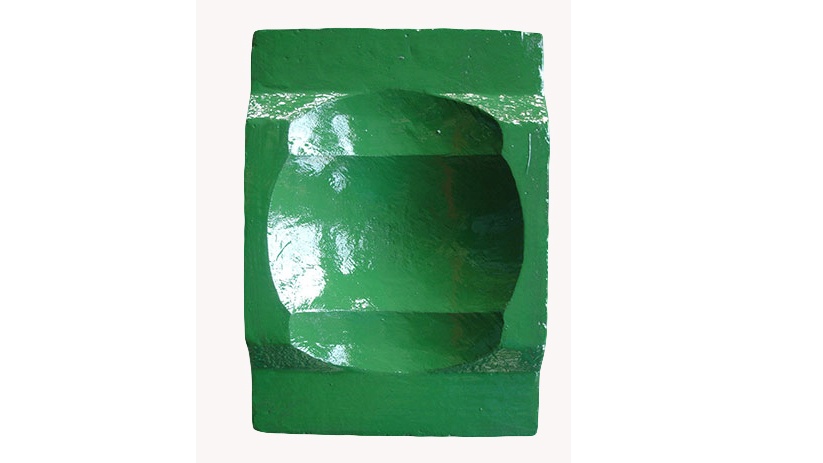

• Technical Detail: Since Type F couplers are designed for heavy-haul and hazardous material transport (like tank cars), the Y46 follower often features specific machined characteristics to accommodate the spherical butt design of the F-type coupler, allowing for necessary pivoting and rotation.

C. Y47 Follower

• Matching Coupler: AAR Type E/F or Type F Couplers (High-capacity configurations).

• Application: Typically found in heavy-haul wagons equipped with high-energy draft gears such as the SL-76 or similar units.

• Technical Detail: The Y47 is often thicker or possesses a distinct geometry designed to fill the specific gap between a heavy-duty yoke and a high-capacity cushioning unit, ensuring a tight and responsive draft system.

3. Key Performance Features

• 100% Interchangeability: Rigorously gauged against AAR master templates to ensure they serve as perfect "drop-in" replacements during maintenance or fleet overhauls.

• Superior Wear Resistance: Reinforced at high-friction contact points to prevent "galling" or spalling during long-term operation.

• Zero-Defect Assurance (NDT): Every production batch undergoes Magnetic Particle Inspection (MPI) to detect internal voids or cracks, preventing brittle fracture under extreme impact.

4. Installation & Maintenance Guidelines

1. Compatibility Check: Always verify that the follower model matches the yoke (e.g., Y44 for a Y40 yoke).

2. Surface Lubrication: Apply a thin layer of railroad-approved grease to the contact surfaces to reduce initial "break-in" wear.

3. Wear Limits: Regularly inspect the thickness of the follower plate. If wear exceeds 3mm (1/8 inch), the component should be replaced to prevent excessive slack in the coupler system, which can lead to damaging impact forces.
