AAR Standard Railway Coupler Spare Parts

In heavy-haul freight and locomotive operations, the coupler system is subject to constant dynamic stress, friction, and high-impact forces. To ensure operational safety and minimize downtime, maintaining a stock of high-quality, AAR-certified spare parts is essential. Our components are engineered from premium Grade E and Grade B+ cast steel, ensuring 100% interchangeability with original equipment.

1. Primary Load-Bearing Components

These parts handle the direct traction and buffing forces of the train.

• Coupler Knuckles (AAR Grade E):

  • Function: The "hand" of the coupler that engages with the adjacent vehicle.

  • Critical Feature: Manufactured to AAR M-211 standards. Every knuckle undergoes Magnetic Particle Inspection (MPI) to prevent fatigue cracking in the pivot pin area.

• Coupler Knuckle Pins (AAR C10):

  • Function: The pivot axis for the knuckle.

  • Critical Feature: Heat-treated for high shear strength and surface hardness to prevent bending under extreme tension.

• Coupler Yokes (Y40 / Y45 / Y49):

  • Function: The structural frame that connects the coupler to the draft gear.

  • Critical Feature: Cast from Grade E steel, precision-machined to ensure a perfect fit for the Follower Plate and Draft Gear.

2. Force Transmission & Cushioning Parts

• Follower Plates (Y44 / Y46 / Y47):

  • Function: Positioned between the coupler butt and the draft gear to distribute forces.

  • Critical Feature: Precision-ground flat surfaces to ensure uniform load distribution, preventing localized "peening" or deformation.

• Coupler Strikers (S-915 Series):

  • Function: Welded to the car end (center sill) to guide the coupler and protect the car body.

  • Critical Feature: High-impact resistance; designed to house replaceable wear plates to extend the life of the main casting.

3. Locking & Safety Mechanisms

Small parts that ensure the coupler remains securely engaged during transit.

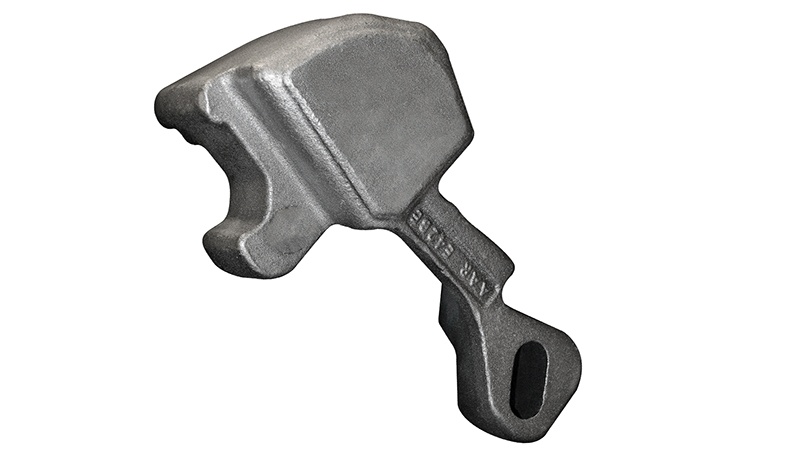

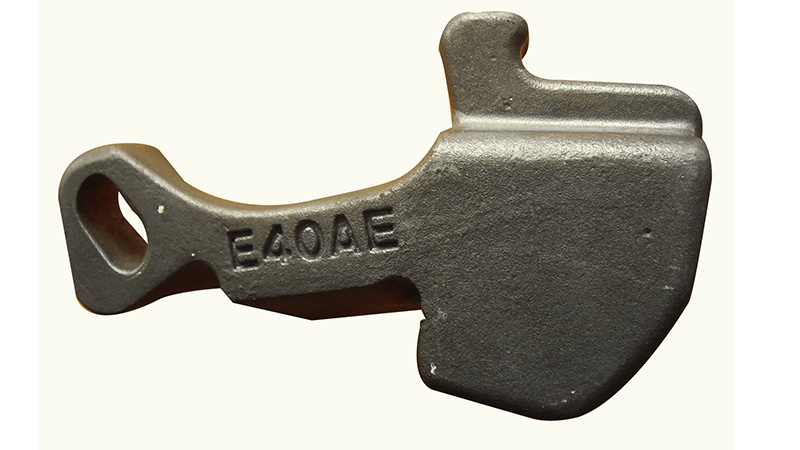

• Coupler Locks: The internal wedge that keeps the knuckle closed. Must be checked for "lock set" and "anti-creep" functionality.

• Lock Lift Assemblies (Single/Double): The linkage system used to manualy unlock the coupler. Available in top-operation and bottom-operation designs.

• Knuckle Throwers: The internal lever that pushes the knuckle into the fully open position.

4. Wear Protection Solutions

To extend the maintenance cycle of expensive castings, we provide high-manganese wear components:

• Coupler Carrier Wear Plates: Protects the horizontal support of the striker.

• Yoke Support Wear Plates: Reduces friction between the yoke and the carrier iron.

• Shank Wear Plates: Applied to the coupler shank to prevent thinning of the structural steel.

5. Quality Assurance & Inspection

• Standard Compliance: All parts meet or exceed AAR M-201, M-211, and M-215 specifications.

• NDT Testing: 100% Ultrasonic (UT) and Magnetic Particle (MPI) testing on critical stress zones.

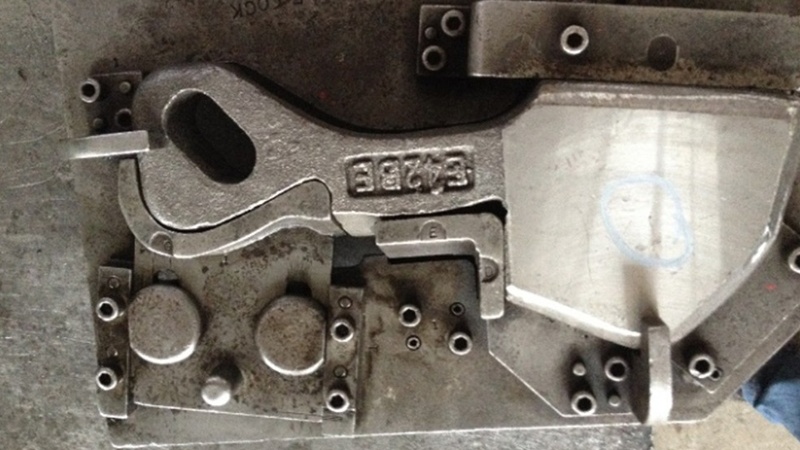

• Dimensional Accuracy: Verified using master gauges to ensure 100% interchangeability for MRO (Maintenance, Repair, and Overhaul) markets.
