Draft system components :

Draft system device is composed of coupler, draft, yoke and coupler tail frame, etc., and is installed in the traction beam at the end of the frame under the vehicle.

Coupler :

In Chinese Railway freight wagon coupler basic requirement is a below :

Ø  Enough strength

Ø  easy to identify the connection state and to avoid the accident of train separation.

Ø  Secure the hook under any condition

Ø  Simple structure, convenient operation, easy disassembly, to reduce the cost of operation and maintenance

AAR Coupler :

There are many couplers in the freight wagon ,like AAR ,LAF ,south Africa and so on .The AAR Coupler is the most widely used coupler . It have included type E, F ,E/F and H (FR is included in the F type ).

l  E type coupler:  Type of E coupler have an E-type head with a horizontal slot

through which the draft or cross key passes

 Type :E60EE (E60DE) , SBE60EE ,SBE60DE ,SBE67DE,SE67DE

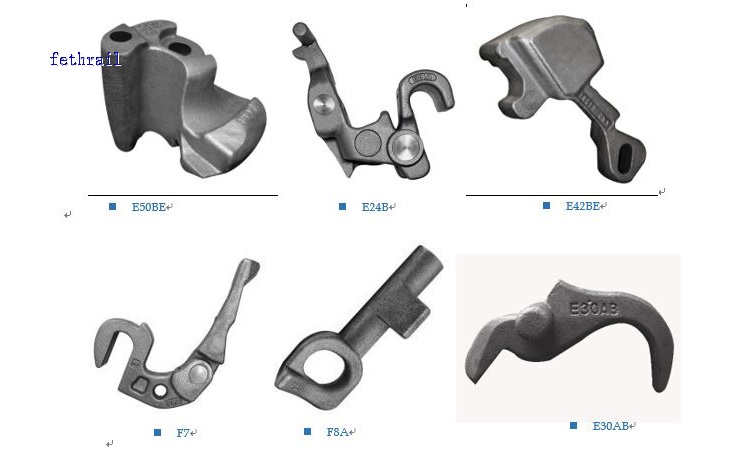

 Component part :  E50BE、 E42AE(E42BE) 、E40AE 、E24B 、E25B、

 E2A、 E2、 E6A、 E30A 、 C10 、C2,

Widely used vehicle: Hopper car、Box car 、and Flat car

Similar Chinese coupler of ：#13 coupler which is widely used on the Chinese freight wagon

l  F type coupler:

The F-Type coupler has a larger head with interlocking wings on the side

and the key opening is vertical requiring a pin to connect with the yoke ;

Type: F70DE 、 SF70DE 、F79DE,

Chinese Similar coupler ：#17 coupler which is used on the 70Ton wagon widely

l  FR type coupler

It is a rotatable interlock coupler, it was developed to

meet the requirement of mass goods transportation and turnover discharge.

Type : FR207AE 、FR209E（interchangeable  of them ）

Widely used vehicle: Tank cars and Coal cars.

Component part :  F51AE、F41AE 、F45AE、,FR41AE 、F7、F8A、

F10A 、,F9A 、,E6A 、,F31A 、C10、C2

Chinese Similar coupler ：#16 coupler
