Technical Specification: AAR Standard Freight Wagon Center Plates

The Center Plate is a critical structural interface in a three-piece bogie system, acting as the primary pivot point between the car body and the truck bolster. It is designed to support the vertical load of the railcar while facilitating smooth rotation during curve negotiation. Our center plates are engineered to withstand extreme compressive stresses and provide long-term operational stability for heavy-haul freight wagons.

1. Material & Metallurgical Standards

To ensure structural integrity under maximum axle loads, our center plates adhere to rigorous material specifications:

• Material Grade: Manufactured from AAR Grade B+ or Grade C cast steel, compliant with AAR M-201 and M-211 standards.

• Heat Treatment: Every casting undergoes a Normalization or Quenching & Tempering (Q&T) process to achieve a superior balance of surface hardness and core ductility.

• Impact Toughness: Optimized for heavy-duty rail environments, ensuring resistance to brittle fracture even in low-temperature operations.

2. Engineering & Design Features

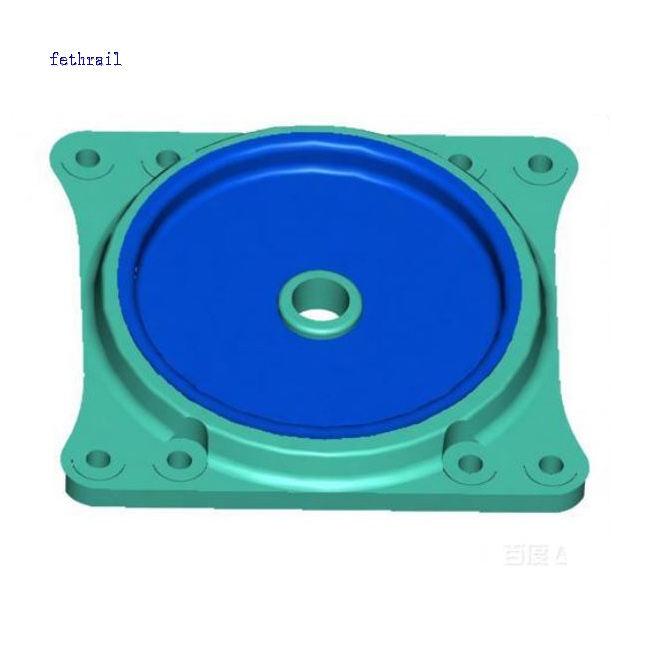

• Precision Machined Surfaces: The bowl-shaped bearing surface is CNC-machined to precise tolerances. This ensures a uniform contact area with the body center plate, reducing localized pressure and friction.

• Optimized Bowl Geometry: Designed according to AAR S-2 or specific wagon blueprints, featuring a deep-dish profile that maintains the car body’s center of gravity and prevents dislodgment during dynamic motion.

• Weld-Ready Flanges: The outer circumference is tapered and cleaned for high-quality welding to the bolster center bowl, ensuring a rigid and permanent bond.

3. Compatibility & Wear Protection

• System Integration: Fully compatible with standard 2-1/16" or 1-1/8" depth center sill configurations and standard truck bolsters.

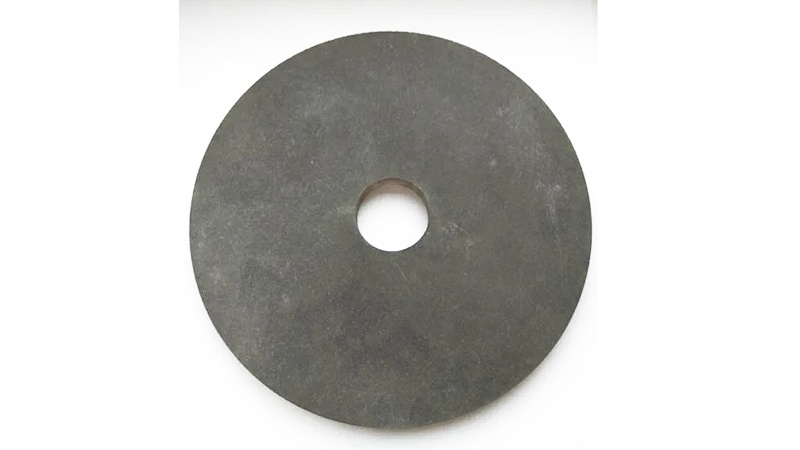

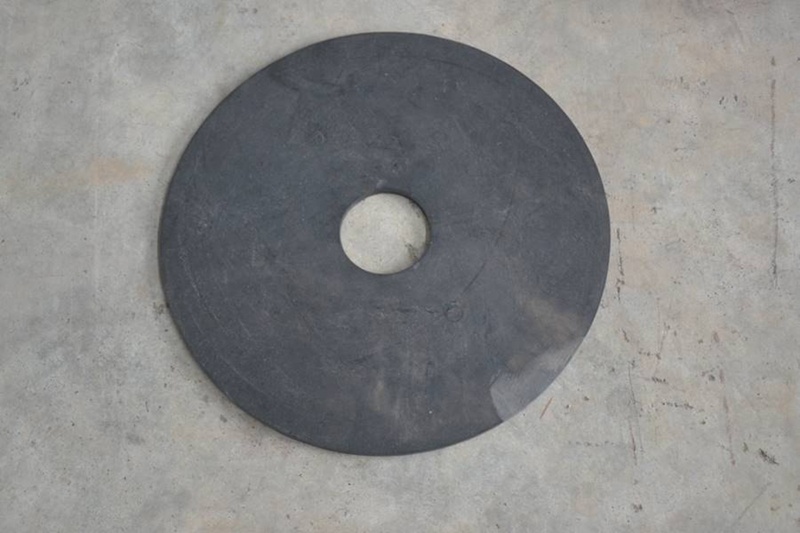

• Wear Liner Compatibility: Engineered to work seamlessly with Manganese Steel Wear Liners or Non-Metallic (UHMW-PE) Lubrication Liners. This combination significantly reduces the frequency of center bowl maintenance.

• Interchangeability: Our center plates are designed as direct replacements for major OEM bogie brands, making them ideal for MRO (Maintenance, Repair, and Overhaul) projects.

4. Quality Control & Safety Certification

Safety is our primary focus. We implement 100% inspection protocols for every center plate:

• Non-Destructive Testing (NDT): Every unit is subjected to Magnetic Particle Inspection (MPI) to ensure the absence of surface cracks or casting defects in the high-stress bowl area.

• Hardness Testing: Verified to meet AAR Brinell hardness requirements (typically 241-311 HBW for Grade C) to ensure long-term wear resistance.

• Dimensional Gauging: Each piece is checked against master templates to guarantee precise diameter, depth, and bolt-hole alignment (if applicable).

5. Maintenance & Lifecycle Management

• Wear Limit Monitoring: We recommend replacing or re-machining the center plate if the vertical wear exceeds 3mm (1/8") or if significant galling is observed on the bearing surface.

• Lubrication Efficiency: When used with approved lubrication liners, our center plates help reduce the "hunting" effect and decrease fuel consumption by lowering curve resistance.
