AAR Standard Railway Bogie Bolsters

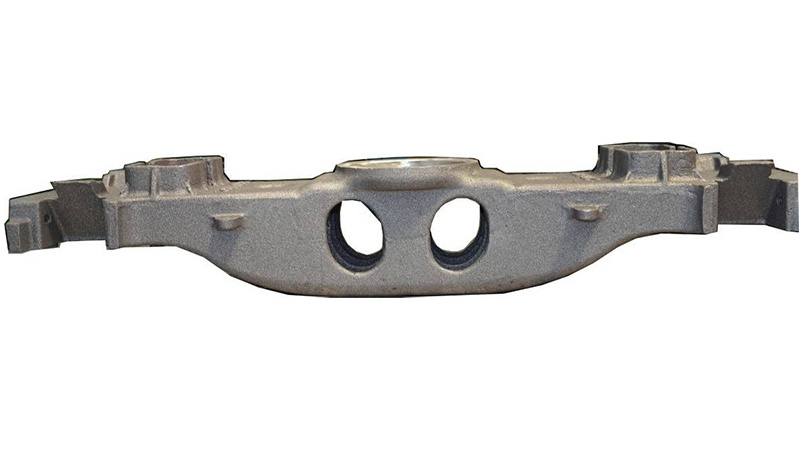

The Bogie Bolster is the primary transverse structural member of a railway freight truck. It sits between the two side frames and supports the car body through the center plate and side bearings. As a critical load-bearing component, the bolster must manage massive vertical, lateral, and longitudinal forces while maintaining the geometric integrity of the bogie assembly. Our bolsters are engineered for maximum durability and precision in heavy-haul environments.

1. Material Selection & Metallurgy

To ensure structural reliability and fatigue resistance under extreme axle loads, our bolsters are cast from vacuum-degassed steel:

• Material Grades: Manufactured from AAR Grade B+ (for standard freight) or AAR Grade C (quenched and tempered for high-tensile heavy-haul applications) in accordance with AAR M-201.

• Heat Treatment: Every casting undergoes a rigorous Normalization or Quenching & Tempering process to refine the grain structure, ensuring superior impact toughness and ductility.

• Chemical Composition: Optimized carbon and alloy levels to provide excellent weldability for maintenance and repair.

2. Precision Engineering & Key Features

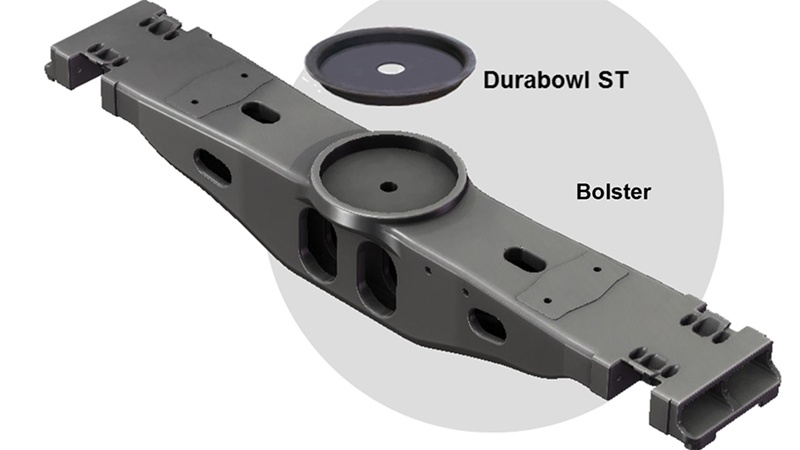

• Integrated Center Bowl: The Center Bowl (or Center Plate Seat) is CNC-machined to precise tolerances, ensuring a perfectly flat and smooth bearing surface for the car body center plate.

• Wedge Pockets (Damping Pockets): The pockets for the friction wedges are precision-cast and machined to ensure consistent damping forces and smooth snubbing action within the suspension system.

• Side Bearing Seats: Specifically designed to accommodate standard constant-contact or roller side bearings, ensuring optimal car body roll control and curve negotiation.

• Lightweight Optimization: Utilizing Finite Element Analysis (FEA), the bolster's internal rib structure is optimized to reduce weight while maintaining maximum stiffness in high-stress zones.

3. Application Standards & Compatibility

Our bolsters are designed to integrate seamlessly with global three-piece bogie architectures:

• Axle Load Ratings: Available for 25-Ton, 30-Ton, and 32.5-Ton (Heavy-Haul) configurations.

• Truck System Compatibility: Fully interchangeable with Barber S-2 (S-2-A, S-2-B, S-2-C, S-2-HD) and Ride Control type bogies.

• Global Interchangeability: Designed as direct "drop-in" replacements for standard North American, South American, and African freight wagon designs.

4. Quality Assurance & Safety Compliance

Safety is our primary focus. We adhere to AAR M-202 (Bolster Static and Dynamic Testing) requirements:

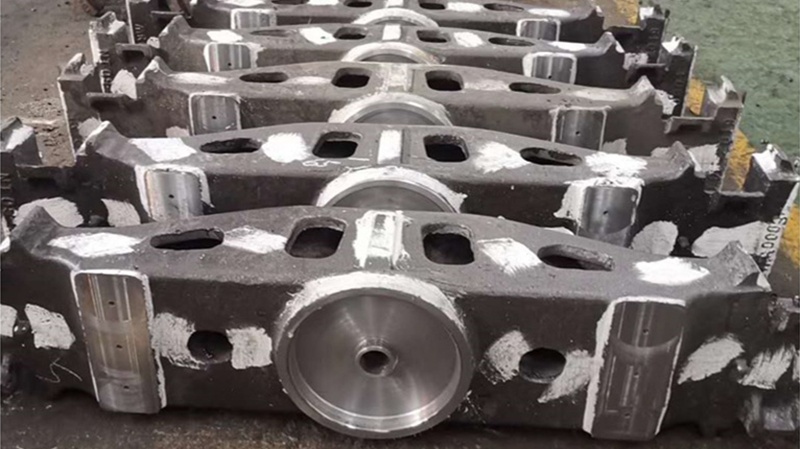

• Non-Destructive Testing (NDT): 100% Magnetic Particle Inspection (MPI) on all critical areas, including the center bowl and wedge pockets. Radiographic Testing (RT) is performed on sample lots to ensure zero internal porosity.

• Load Testing: Verified through rigorous static load tests and dynamic fatigue tests exceeding millions of cycles to ensure zero structural deformation over a 30-year service life.

• Dimensional Accuracy: Every bolster is verified with AAR-approved master gauges to ensure a perfect fit with side frames and spring nests.

5. Maintenance & Serviceability

• Wear Protection: Designed for the easy application of Center Bowl Liners and Wedge Pocket Wear Plates to extend the life of the primary casting.

• Ease of Inspection: The open-bottom or closed-bottom designs (per customer spec) allow for straightforward visual inspection of the internal structural ribs.

• Traceability: Each bolster is cast with a unique serial number, heat number, and production date for full lifecycle tracking.
