Product Description

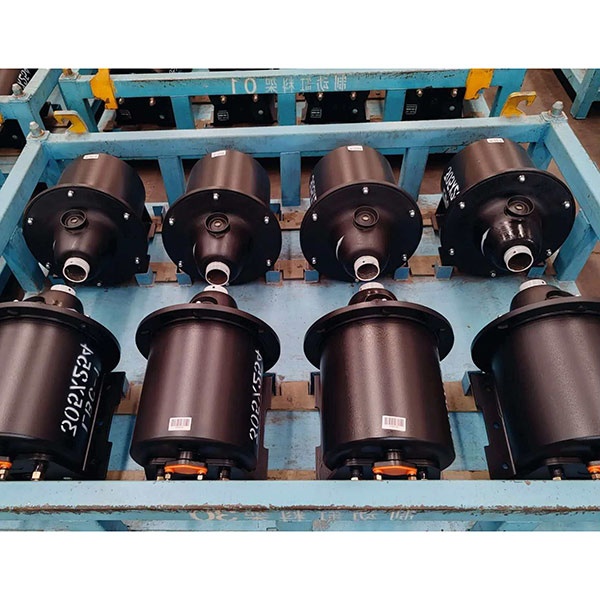

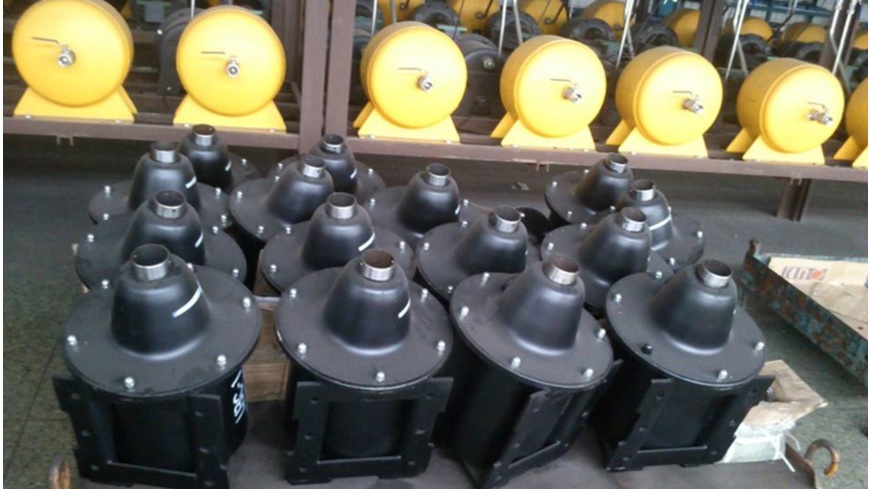

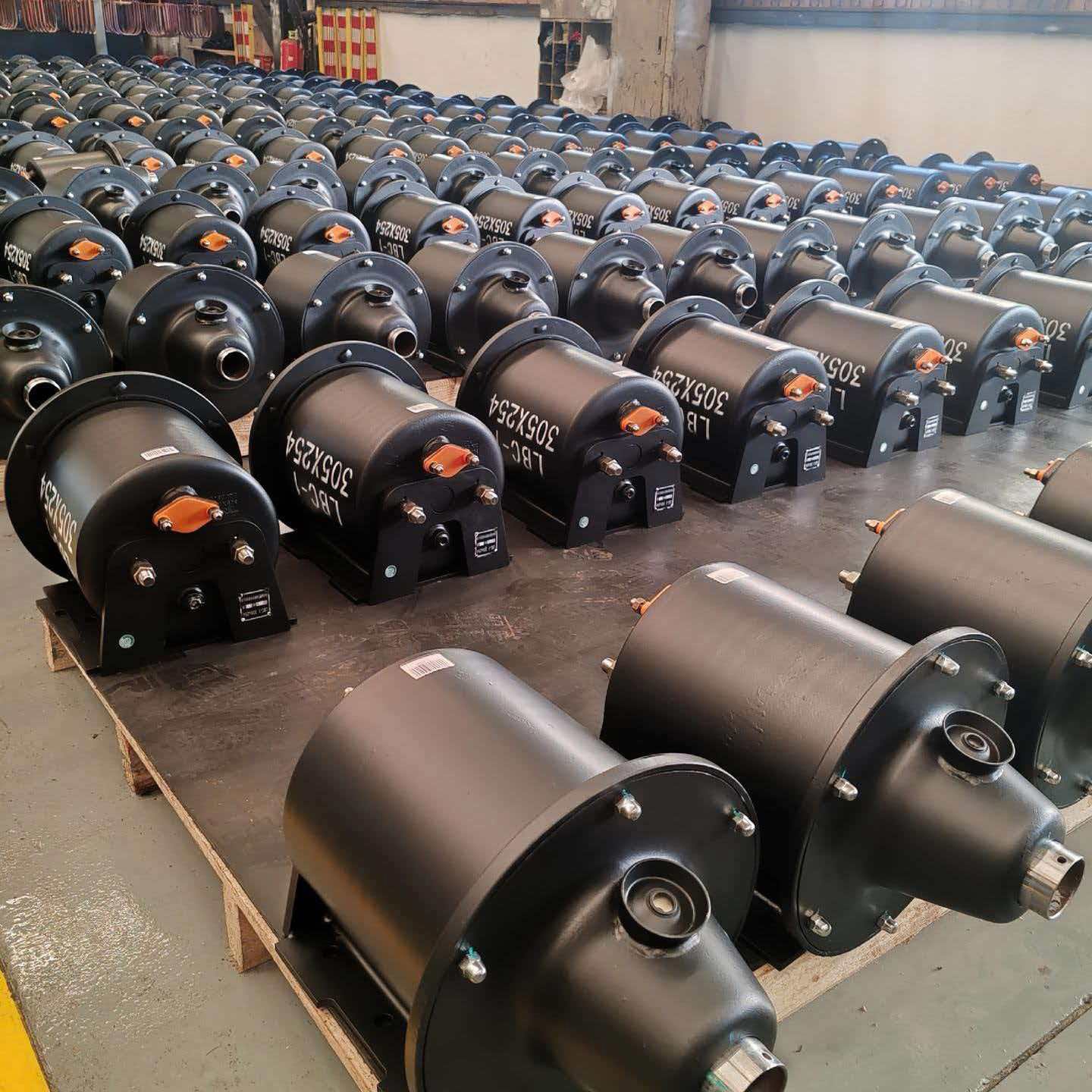

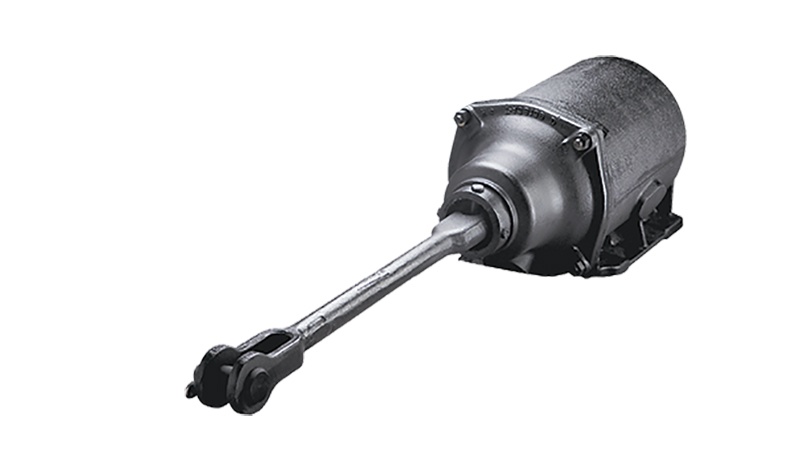

Title: Double Acting Pneumatic Brake Cylinders – High-Performance Railway Braking for Locomotives, Wagons and Coaches

Our Double Acting Pneumatic Brake Cylinders are precision-engineered to deliver reliable, consistent braking performance across the full spectrum of railway rolling stock – from heavy-haul locomotives and freight wagons to high-speed passenger coaches. Designed to meet the most demanding operational requirements, these cylinders provide the foundation for safe and efficient train braking.

Double Acting Design – Superior Control and Reliability

The double acting configuration represents the gold standard in railway brake cylinder design. Unlike single acting cylinders that rely on spring return, double acting cylinders use pneumatic pressure for both application and release, providing more precise control and faster response times. This design ensures:

• Balanced Force Application: Equal pneumatic force in both directions minimizes mechanical stress and wear on brake rigging components

• Faster Brake Release: Quicker release times improve operational efficiency and reduce drag

• Enhanced Redundancy: The dual-pressure design provides an additional layer of operational security

Integral Double Acting Slack Adjuster – Automatic Wear Compensation

Our brake cylinders feature an inbuilt double acting slack adjuster that automatically compensates for brake shoe and wheel wear, maintaining a constant piston stroke for uniform braking performance throughout the service life of the friction materials . This feature:

• Maintains a constant piston stroke (typically 56mm) ensuring consistent braking force delivery

• Compensates for up to 192mm of brake shoe wear and 188mm of wheel wear

• Eliminates the need for manual adjustment, reducing maintenance time and costs

• Prevents over-stroking issues that can reduce braking effectiveness

Standards Compliance

Manufactured to meet the stringent requirements of leading railway standards:

• AAR S-4004: Brake Cylinder Performance Testing

• UIC 541-01: Brake Cylinders/Units for Air Brakes – General Conditions for Certification and Use

• Operational temperature range: -40°F to 150°F (-40°C to 65°C) per AAR requirements

Key Features:

• Corrosion Resistant Construction: Exterior coatings and e-coated piston heads prevent rust and oxidation for extended service life and low cost of ownership

• Optimal Vent Locations: Ensures any condensation can drain, preventing internal corrosion

• Flexible Installation: Multiple inlet locations to suit any car or locomotive installation requirements

• Automatic Piston Stroke Indicator: Provides visual confirmation of cylinder status

Applications:

• Freight and passenger locomotives

• Freight wagons (standard 8-1/2” and 10” sizes)

• Passenger coaches, including high-speed trains

• Light rail and metro vehicles

• All railway vehicles with compressed air brake systems

Technical Specifications

1. General Specifications





Parameter	Specification
Type	Double acting pneumatic brake cylinder
Common Sizes	8-1/2” and 10” standard freight car sizes
Compatible Vehicle Types	Locomotives, freight wagons, passenger coaches
Cylinder Pressure (Typical)	3.8 kg/cm² (loaded), 2.2 kg/cm² (empty) with APM device
Piston Stroke (Constant)	56mm (with integral slack adjuster)
Operating Temperature	-40°F to 150°F (-40°C to 65°C)
Compensation Capacity	Up to 500mm total make-up for shoe and wheel wear

2. Slack Adjuster Specifications





Parameter	Specification
Type	Integral double acting slack adjuster
Brake Shoe Wear Compensation	Up to 192mm nominal
Wheel Wear Compensation	Up to 188mm nominal
Total Make-Up Capacity	500mm

3. Applicable Standards





Standard	Description
AAR S-4004	Brake Cylinder Performance Testing
AAR S-400	Brake Equipment Installation Specifications
UIC 541-01	Brake Cylinders/Units for Air Brakes – General Conditions for Certification and Use
UIC 541-00	General brake component certification requirements

4. Quality Features





Feature	Benefit
Corrosion-resistant exterior	Extended service life in harsh environments
E-coated piston heads	Prevents rust and oxidation, low maintenance cost
Optimal vent locations	Condensation drainage to prevent internal corrosion
Multiple inlet locations	Flexible installation for any vehicle type
Piston stroke indicator	Visual operational status confirmation

Maintenance, Inspection, and Service Life Management

Proper maintenance of double acting pneumatic brake cylinders is essential for ensuring operational safety, reliable braking performance, and maximum service life. The following guidelines are based on industry best practices and established maintenance schedules.

1. Routine Inspections

Daily Inspection (Schedule I):

• Conduct visual inspection of brake cylinders for physical damage or air leakage

• Verify piston indicator is fully in the released condition

• Check foundation bolts of brake cylinders for secure mounting

Regular Maintenance Checks:

• Inspect brake linkage and lubricate pivots

• Check brake shoe clearance (maintain 3 to 5 mm)

• Monitor brake shoe wear; replace when minimum thickness reaches 13mm or less

2. Brake Cylinder Specific Inspections

Visual and Operational Checks:

• Physical Damage: Inspect cylinder body for cracks, dents, or damage

• Leakage: Check for air leaks at connections and seals

• Piston Indicator: Ensure indicator shows correct stroke position

• Hand Brake Cables: If applicable, verify cables are free, not entangled, and not resting on or touching the axle

When to Replace:

Replace brake cylinder with a tested unit if the following defects are identified:

• Physical damage compromising structural integrity

• Evidence of internal air leakage

• Piston indicator malfunction

• Corrosion or pitting on critical surfaces

3. Installation Best Practices

Pre-Installation:

• Blow out steel pipes connecting to the brake cylinder before fitment to prevent dirt particles entering the cylinder (perform 2-3 brake applications before connecting hose pipe)

• Ensure proper orientation of check valves and isolating cocks

• Confirm use of correct size bolts, screws, nuts, and washers

Installation Do's:

• Use bush and dowel pin to lock brake cylinder pins securely

• Ensure proper clamping of APM valve hose with underframe

• Verify rubber hoses do not rub against axle, wheel, or underframe members

• For hand brake cable systems, ensure proper cable routing with no obstacles during return after release

Installation Don'ts:

• Do not hammer on beams or brake blocks

• Do not strike the indicator on the brake cylinder

• Do not use non-standard pins or bolts

4. Lubrication

• Lubricate hand brake screw, nut, and pivots regularly to reduce friction and ensure smooth operation

• Follow manufacturer-specified lubrication intervals and approved lubricants

5. Scheduled Overhaul





Maintenance Level	Frequency	Scope
Level 2 Air Brake Maintenance	Within 368 days (US FRA requirement)	Standard testing and inspection
Level 3 Air Brake Maintenance	Within 736 days (US FRA requirement)	Comprehensive testing and overhaul
Brake Cylinder Overhaul	As per operator's maintenance schedule	Complete disassembly, seal replacement, and re-certification

6. Record Keeping

• Document all inspections, repairs, and testing on the appropriate maintenance records

• Maintain records in railroad files or vehicle cab as applicable

• Include: vehicle number, list of brake components inspected, date and place of inspection and testing

• Include signature or unique employee identifier of person performing work and supervisor

7. Safety Precautions

• Follow established lock-out/tag-out procedures before performing brake system work

• Wear appropriate PPE (gloves, eye protection)

• Use proper lifting equipment for heavy brake cylinders

• Never operate brake system components at pressures exceeding manufacturer specifications

• Follow specific vehicle manufacturer maintenance procedures when available
