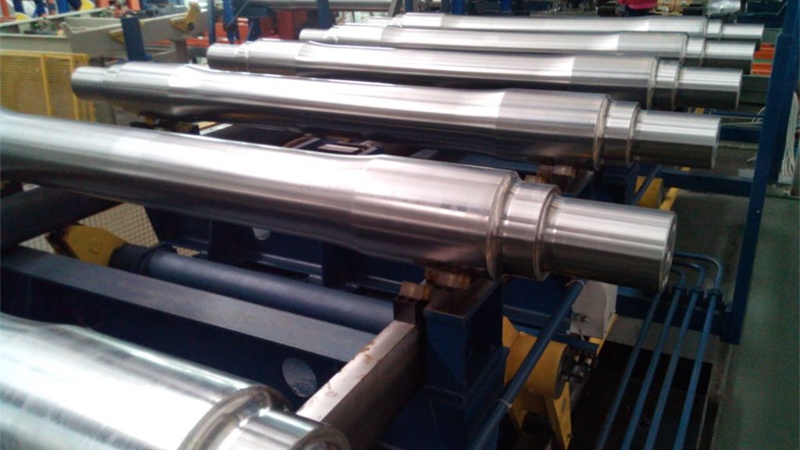

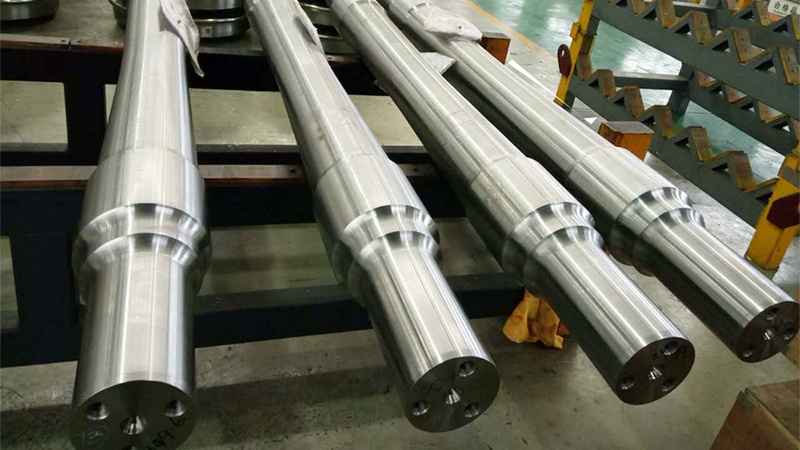

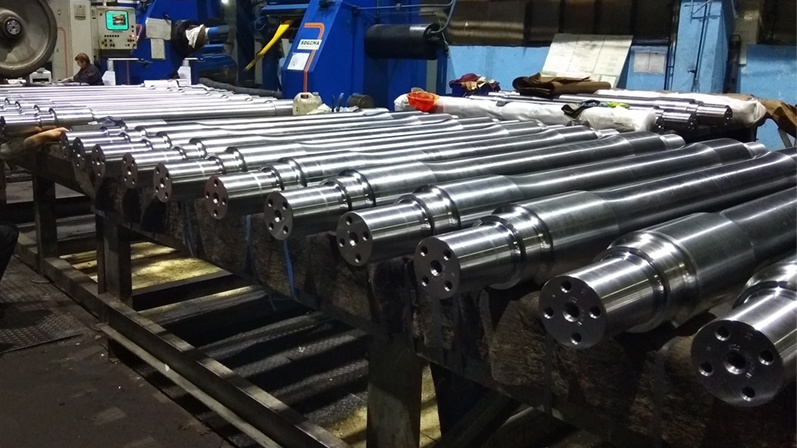

Locomotives Wagons Railway Axles AAR and UIC Certifieds

Locomotives Wagons Railway Axles AAR and UIC Certifieds

Product No.：2023820165747
Price：nogotiation
Material：high-quality carbon steel
Standard：AAR
mould charge：yes
Production time：60
weight：198KGS
Package：Wood Box
Online Inquiry

Product Description

Our AAR and UIC Certified Locomotives Wagons Railway Axles are engineered to deliver exceptional strength, durability, and operational safety for the world‘s most demanding railway applications. These axles are precision-forged from high-grade alloy steel and designed to reliably withstand extreme dynamic loads, heavy-haul conditions, and high-speed operations that define modern freight and passenger rail transport.

Manufactured in full compliance with the stringent Association of American Railroads (AAR) M‑101 specification and International Union of Railways (UIC) standards, our axles meet the rigorous quality and safety requirements for interoperability across North American and international railway networks. We also produce axles to EN 13261, IRS 16/95, BS 5892, and other global standards, ensuring seamless integration with your rolling stock requirements.

Key Features:

Dual Certification Excellence: Full compliance with AAR M‑101 and UIC 811‑1 standards, providing assurance of quality and interoperability for global railway networks.
Material Excellence: Available in a wide range of steel grades including AAR Grade F, EA1N, EA1T, EA4T, LZ50, and other customizable materials to match your specific load and environmental requirements.
Superior Fatigue Resistance: Advanced forging processes (hot die forging and open‑die forging) optimize grain flow, delivering outstanding toughness, ductility, and resistance to fatigue failure under heavy-haul conditions.
Comprehensive Quality Assurance: Every axle undergoes rigorous non‑destructive testing (NDT), including Ultrasonic Testing (UT) and Magnetic Particle Inspection (MPI), along with mechanical property verification to ensure absolute reliability.
In‑House Heat Treatment: Sub‑critical quenching and tempering processes performed in‑house to meet stringent mechanical property requirements, including vertical sub‑critical quenching for enhanced material performance.

Applications:

Heavy‑haul freight locomotives and wagons
High‑speed passenger locomotives and coaches
Electric and diesel locomotives
Light rail, metro, and tramway vehicles

Our axles are available in customized dimensions and configurations—solid, hollow, inboard bearing, and outboard bearing designs—with flexible lead times and competitive pricing to support your project requirements. Count on us as your trusted partner in railway component solutions.

Technical Specifications & Manufacturing

1. Material Specifications

Parameter	Details
Steel Grades	AAR Grade F, EA1N, EA1T, EA4T, LZ50, JZ45, IRS 16/95, or customer‑specified grades
AAR Grade F Chemistry	C: 0.45–0.59%, Mn: 0.75–1.00%, Si: ≥0.15%, P: ≤0.045%, S: ≤0.05%, V: 0.02–0.08%
EA1N Chemistry	C: ≤0.40%, Mn: ≤1.20%, Si: ≤0.50%, P: ≤0.02%, S: ≤0.02%, Cr: ≤0.30%, Ni: ≤0.30%, Cu: ≤0.30%

2. Applicable Standards

Standard	Description
AAR M‑101	Heat‑treated and non‑heat‑treated axles – American Association of Railroads
UIC 811‑1	International Union of Railways axle standard
EN 13261	European standard for railway axles – steel grades EA1N, EA1T, EA4T
EN 13103‑1	Design method for axles with external journals – defines forces, stress calculation, and maximum permissible stresses
BS 5892	British standard for railway axles
IRS 16/95	Indian Railway standard
JIS E 4502	Japanese Industrial Standard for railway axles

3. Manufacturing Process

Step	Description
1. Steelmaking	Electric arc furnace (EAF) or converter smelting → LF refining → RH/VD vacuum degassing to minimize hydrogen and oxygen content
2. Continuous Casting	Continuous casting with electromagnetic stirring to ensure uniform composition and minimize segregation
3. Forging/Rolling	Forging ratio ≥3:1 or rolling ratio ≥6:1 to ensure material integrity and grain refinement
4. Heat Treatment	Normalizing, sub‑critical quenching, and tempering to achieve specified mechanical properties
5. Sampling & Testing	Mechanical properties testing, grain size inspection, and non‑metallic inclusion evaluation
6. Ultrasonic Testing (UT)	100% ultrasonic flaw detection for locomotive axles; defect equivalent ≤φ3.2mm
7. Rough Machining	Initial machining of forged blanks to approximate dimensions
8. Semi‑Finish & Finish Machining	Precision CNC machining to exact dimensional tolerances
9. Grinding	Final surface finishing to specified tolerances
10. Magnetic Particle Inspection (MPI)	Surface and near‑surface defect detection to ensure quality
11. Final Dimensional Check	Comprehensive verification of all critical dimensions

4. Dimensional Range

Parameter	Typical Range
Diameter	Φ90mm – Φ350mm (customizable per customer drawings)
Length	1,600mm – 2,650mm (customizable per customer drawings)
Design	Solid, hollow, inboard bearing, outboard bearing

5. Quality Certifications

Certification	Scope
AAR	Association of American Railroads – M‑101 compliance
UIC	International Union of Railways certification
ISO 9001	Quality management system
IRIS / RISAS	International Railway Industry Standard
TSI	Technical Specifications for Interoperability (European)

6. Applications

Application Type	Description
Freight Locomotives	Heavy‑haul diesel and electric locomotives
Freight Wagons	Standard and heavy‑load freight cars
Passenger Coaches	High‑speed and conventional passenger rail
Light Rail & Metro	Urban transit vehicles and tramways
