Railway AAR Adapter Class C Casting Steel of Bogie parts

1. Decription :

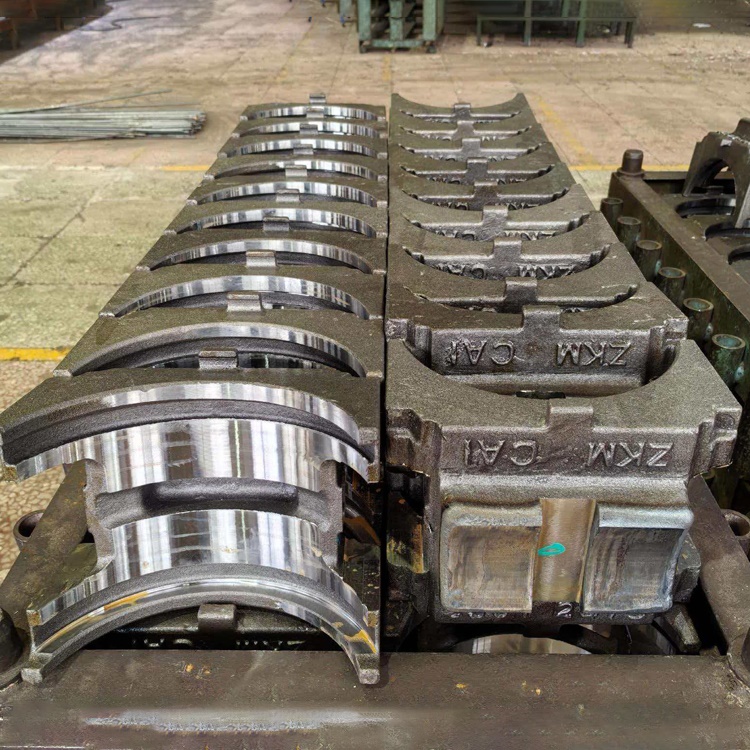

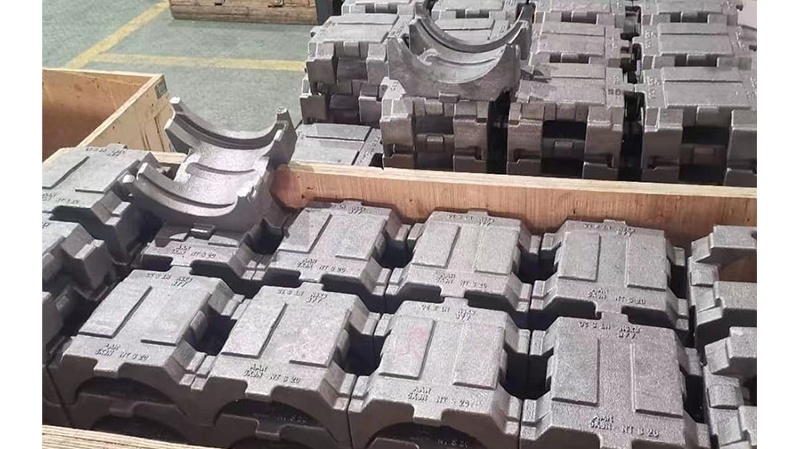

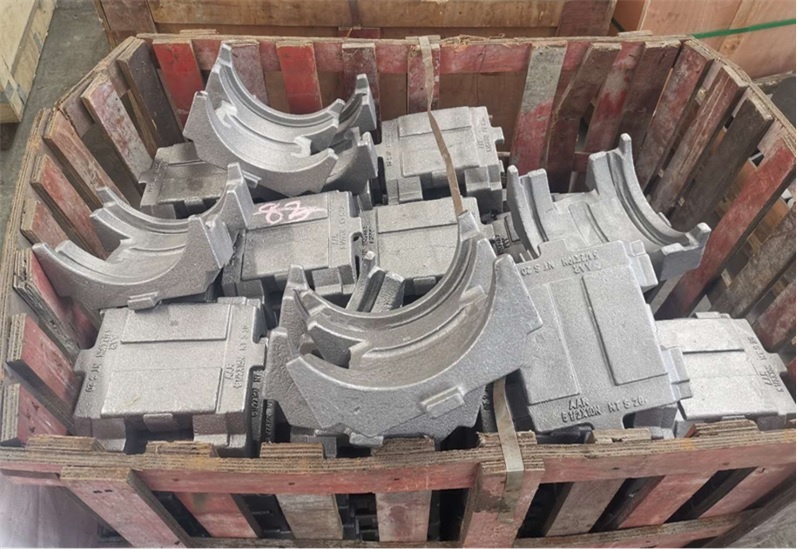

What Is a Railway Roller Bearing Adapter? A railway roller bearing adapter is a critical casting component installed between the axle roller bearing and the bogie side frame pedestal. It transmits vertical car body loads to the bearings and axles while converting wheel rotation into bogie movement. Core function: Prevent eccentric axle loading and maintain proper wheel-axle perpendicular alignment to avoid bogie buckling and high-speed instability.

The Bearing Adapter  Features are as Below :

• Adapter roof – contacts the side frame pedestal roof

• Extending side arms – directly engage the journal bearing assembly

• Lateral edges – feature arcuate cutouts for placement over the bearing assembly

• Hardened crown (optional) – reduces wear at the roof contact point

• Hardened thrust shoulders (optional) – resists lateral thrust loads

Why Do Standard Bearing Adapters Fail Prematurely?

Two major causes of bearing adapter failure are worn adapters and loss of lubricant. Additional failure triggers include:

• Roller misalignment and contact rolling fatigue (RCF)

• Adapter displacement causing seal damage and lubricant leakage

• Eccentric loading from rolling motion between side frame and bearing

• Water contamination and subsurface inclusions

2.  Technical Specifications & Compliance

3. Available Journal Sizes:

• 5"×9" (Class C),

• 5½"×10" (Class D),

• 6"×11" (Class E),

• 6½"×12" (Class F),

• 6½"×9" (Class K),

• 7"×12" (Class G)

Heat Treatment Options:

• No Heat Treat / Hardened Crown Only / Hardened Thrust Shoulders Only / Hardened Crown + Thrust Shoulders

Surface Protection: Shot blasting (SA2.5) + zinc phosphate coating + epoxy sealant

4. Applications

• Freight Wagons: Interchange-ready for Class K and Class G heavy-haul trucks.

• Locomotives: High-strength adapters for 3-axle and 2-axle traction bogies.

• Specialized Mining Cars: Reinforced designs for extreme axle loads
