Production  Description

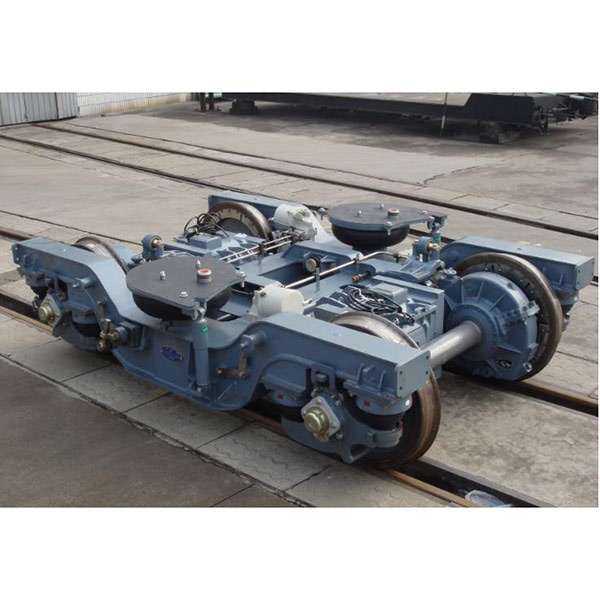

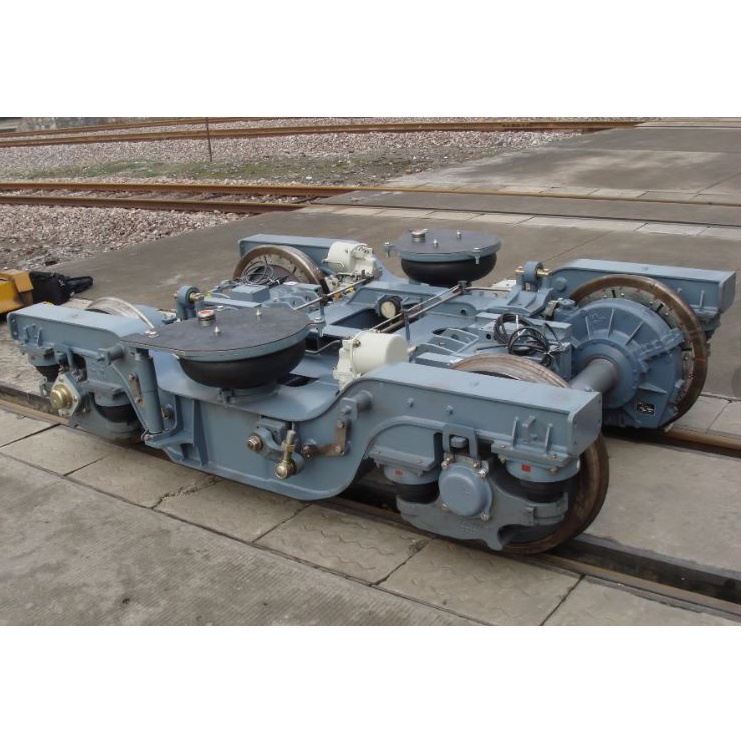

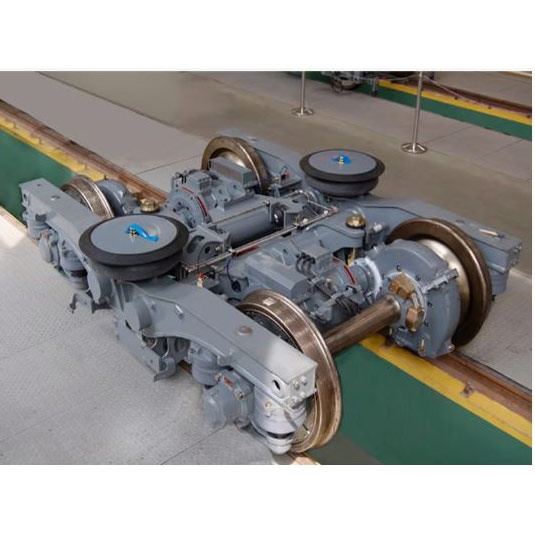

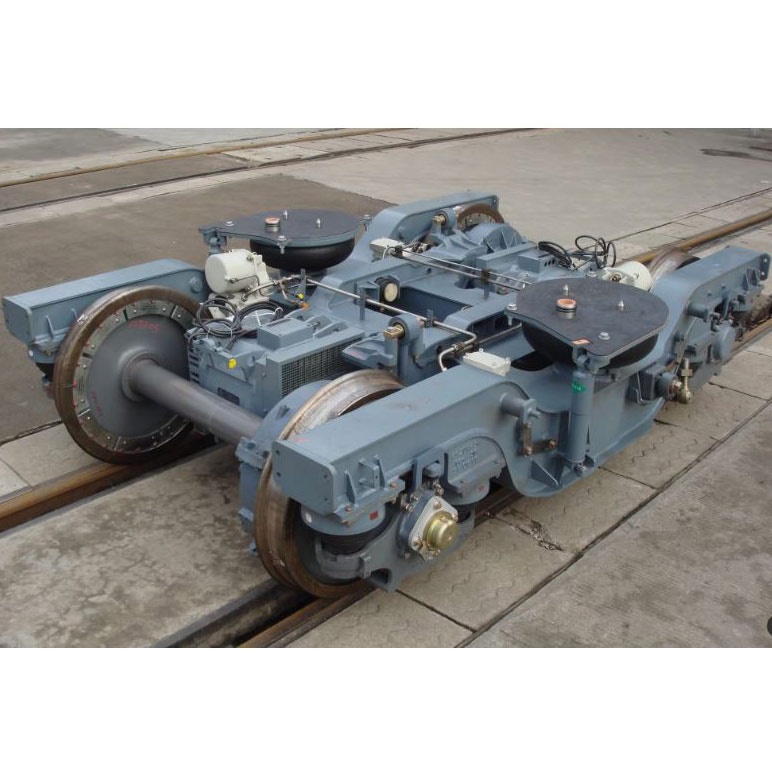

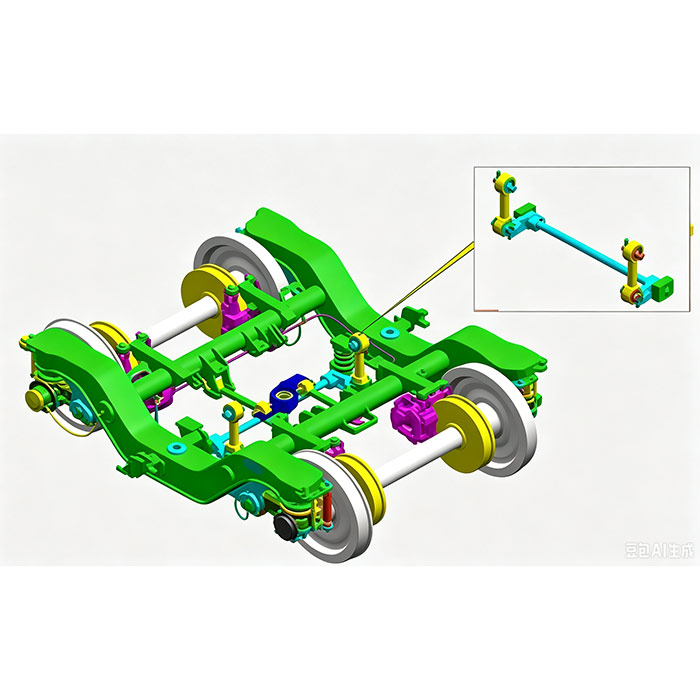

The Railway Passenger Trailer Bogie is a high-performance two-axle bogie system purpose-engineered for metro train applications, designed to deliver superior ride comfort, reliable braking performance, and excellent curve negotiation capability in urban rail environments.

As a trailer bogie, this system is designed for non-powered applications—it does not contain traction motors—making it ideal for use in intermediate metro car positions where power is not required. This design reduces weight and simplifies maintenance while maintaining the structural integrity and suspension performance required for daily metro service.

Manufactured to meet international railway standards including AAR M-201 and EN 13103, this bogie is designed for maximum speeds up to 90–120 km/h and axle loads up to 14–16 tonnes, making it suitable for standard metro and light rail applications.

1. Fully Customizable Configuration

Each bogie is engineered to your exact specifications:

2. Superior Ride Quality

• Advanced Suspension Design: Primary suspension with metal-rubber springs or cylindrical coil springs with vertical hydraulic shock absorbers; secondary suspension featuring air springs with anti-roll torsion bars for superior stability

• Vibration & Noise Reduction: Engineered to minimize transmission of track irregularities to the passenger cabin

• Semi-Active Suspension Option: Available with lateral semi-active dampers for optimized ride performance across varying track conditions

3. Proven Engineering & Safety

• Finite Element Analysis (FEA): Every frame is subjected to rigorous stress analysis and fatigue testing

• International Certification: Manufactured to AAR, IRIS, ISO9001, ISO14001, OHSAS18001, TSI, and other international standards

• Design Life: Engineered for 3+ million kilometers or 30 years of service

4. Low Lifecycle Cost

• Reduced Maintenance: Durable construction minimizes downtime

• Component Interchangeability: Standard parts used wherever possible for ease of maintenance

• Energy Efficiency: Lightweight design options reduce energy consumption






TECHNICAL SPECIFICATIONS

Customization Options

• Frame Material: Standard railway steel (09CuPCrNi-A, Q450NQR1) or alternative grades per customer specification

• Suspension Tuning: Primary and secondary suspension stiffness can be adjusted for specific track conditions

• Braking Configuration: Disc brakes, shoe brakes, electromagnetic brakes, or combinations

• Accessories: Sanders, flange lubricators, speed sensors, ground contacts

• Corrosion Protection: Custom painting and coating systems available

APPLICATIONS

The Tailor-Made Passenger Bogie is suitable for:

• Standard Passenger Coaches: Common-rail passenger cars

• Electric Multiple Units (EMUs): Trailer bogies for EMU trainsets

• Metro & Subway Systems: Urban rail applications

• Light Rail & Tramways: Lower-floor compatible configurations available

• Commuter Trains: Regional and suburban passenger service

Bogie Frame:

• Frame for bogie
• Chassis for bogie

Bogie Transom:

• Crossbeam of bogie frame
• Transverse support member of bogie frame

Brake Cylinder:

• Brake actuator
• Brake piston

Primary Suspension Coil:

• Main suspension spring
• Primary coil spring

Motor Suspension Tube:

• Motor hanger tube
• Suspension tube for motor

Gearbox:

• Transmission box
• Drive mechanism

Motor:

• Electric motor
• Engine

Neutral Section Switch Detector:

• Current switch detector
• Neutral section crossing detector

Secondary Suspension Air Bag:

• Air cushion for secondary suspension
• Rubber air suspension bag

Wheel Slide Protection System Lead to Axlebox:

• WSP sensor connection to axlebox
• Axlebox speed sensor linkage for WSP system

Shock Absorber (Damper):

• Vibration dampener
• Suspension shock absorber

Axlebox Cover:

• Cover for axlebox
• Axle bearing protection cover
