PRODUCT OVERVIEW

The Heavy-Haul 3-Piece Freight Bogie Frame Assembly is a purpose-engineered running gear solution for high-capacity railway freight operations. Built around the globally proven three-piece architecture—two side frames and one bolster—this assembly delivers the structural integrity, serviceability, and load-bearing performance required for today's demanding heavy-haul rail networks.

Three-piece bogies have become the dominant freight solution worldwide due to their simple structure, economical manufacturing cost, and straightforward daily maintenance. This design is the industry standard across North America, South America, Oceania, Asia, and Africa, and is recognized in international standards including the forthcoming ISO/NP 26116.

Why Three-Piece?

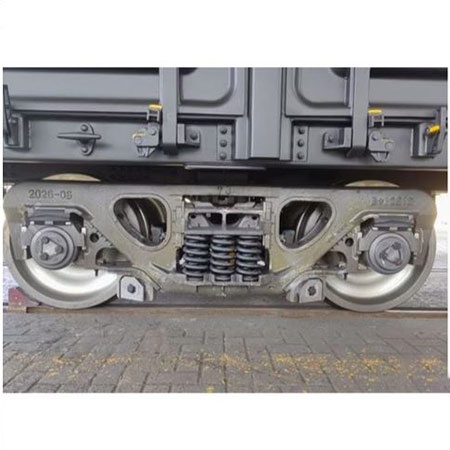

The three-piece bogie frame consists of two parallel side frames connected by a transversely mounted bolster. This configuration provides:

KEY FEATURES & BENEFITS

1. Heavy-Haul Load Capacity

The frame assembly is engineered for North American heavy-haul interchange conditions, supporting gross rail loads up to 286,000 lb standard, with configurations available for 315,000 lb on dedicated heavy-haul lines.

Nominal wheel load calculation at 286,000 lb gross rail load:

• Pwheel = 286,000 / 8 = 35,750 lb per wheel

This rating aligns with AAR M-976 Class K bearing specifications and standard 36-inch wheel dimensions.

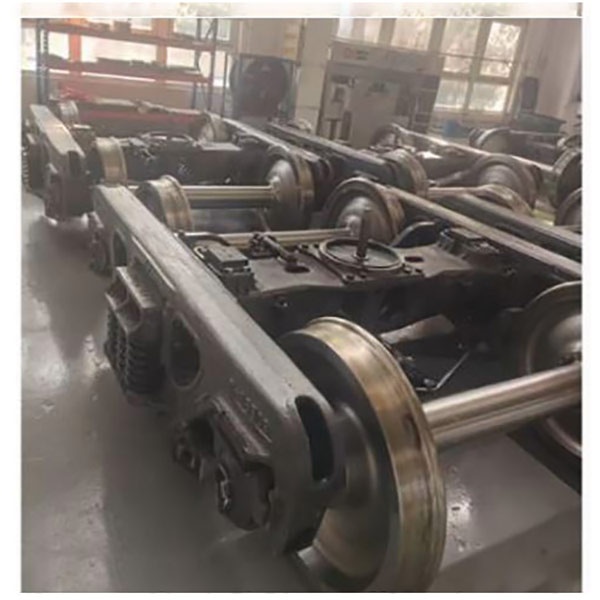

2. Robust Frame Construction

Side Frames (2 per assembly):

• Cast steel or fabricated construction available

• Inverted trapezoidal window design for bolster engagement

• Integral pedestal roof interface for axle connection

Bolster (1 per assembly):

• Transversely mounted between side frames

• Cast steel construction with integrated center plate

• Double-action constant-contact resilient side bearings for yaw stability

3. Optimized Damping System

• Friction Wedge Damping: Variable or constant friction wedge configurations available

• Spring Nest: Coil spring group with 2.8-inch nominal static deflection at rated load

• Side Bearings: Constant-contact resilient design with preload for empty-car hunting control

When properly loaded, the spring nest compresses to engage friction wedges fully, providing the damping authority needed for stable 60 mph service.

4. Service Life & Reliability

TECHNICAL SPECIFICATIONS

Customization Options

• Gauge: Standard, broad, or narrow gauge configurations available

• Axle Load: 21t, 25t, or 30t+ options

• Suspension Tuning: Spring rates and damping characteristics adjustable

• Wheel Diameter: 33-inch to 38-inch options

• Bearing Type: Class K or alternate bearing configurations

• Brake Rigging: High-friction composite shoes or cast iron options

DESIGN & CONSTRUCTION

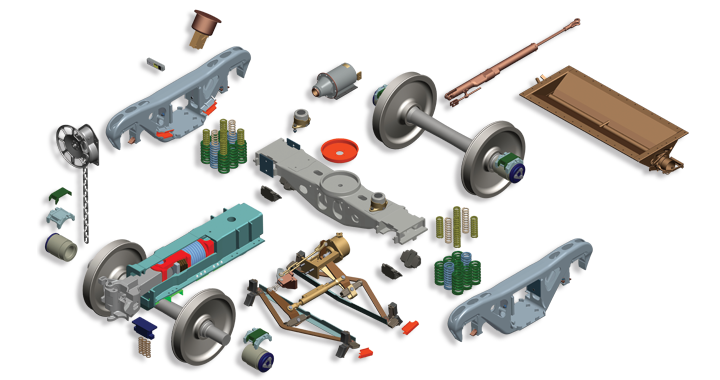

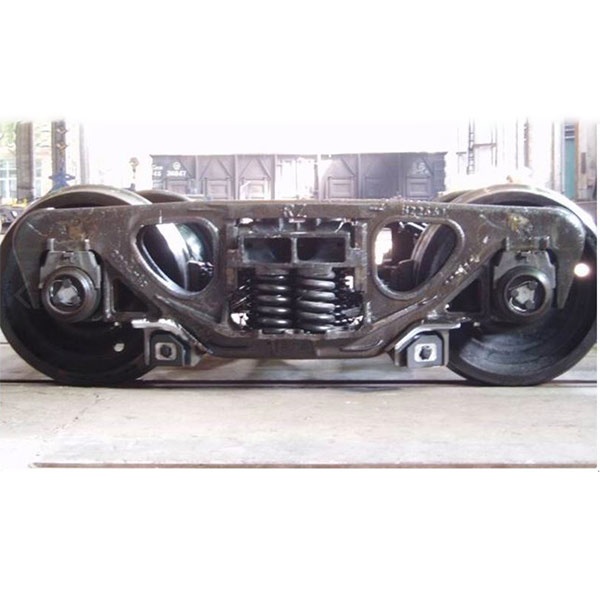

The 3-Piece Architecture

The three-piece bogie frame comprises:

1. Side Frames (×2)

• Longitudinal beams positioned outside the wheel sets

• Pedestal roof interface accommodates axle bearing adaptors

• Inverted trapezoidal windows for bolster ends

• Integral slide tracks for brake beam support

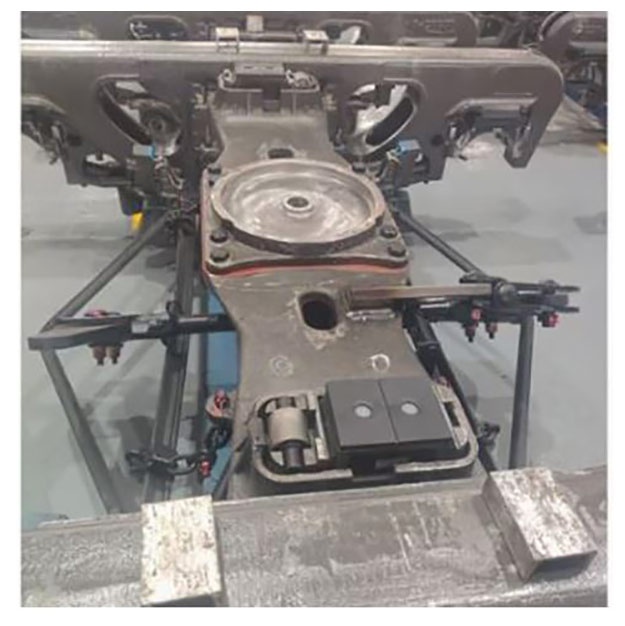

2. Bolster (×1)

• Transverse member connecting side frames

• Ends positioned within side frame windows

• Center plate for carbody connection

• Side bearing seats at each end

3. Connection System

• Load springs transmit vertical forces

• Friction wedges provide damping

• Side bearings control yaw resistance

Material & Quality Standards

The frame assembly is manufactured to meet or exceed:

All castings undergo rigorous quality control including chemical analysis, metallographic testing, ultrasonic testing, and magnetic particle inspection.

APPLICATIONS

The Heavy-Haul 3-Piece Freight Bogie Frame Assembly is suited for:

COMPARATIVE OVERVIEW

WHY CHOOSE THIS BOGIE?

ORDERING INFORMATION

To discuss your heavy-haul freight bogie requirements—including axle load, gauge, wheel diameter, and volume specifications—please contact our railway equipment engineering team.

Specifications subject to change. Custom configurations available upon request.

 .
