Why Three-Piece?

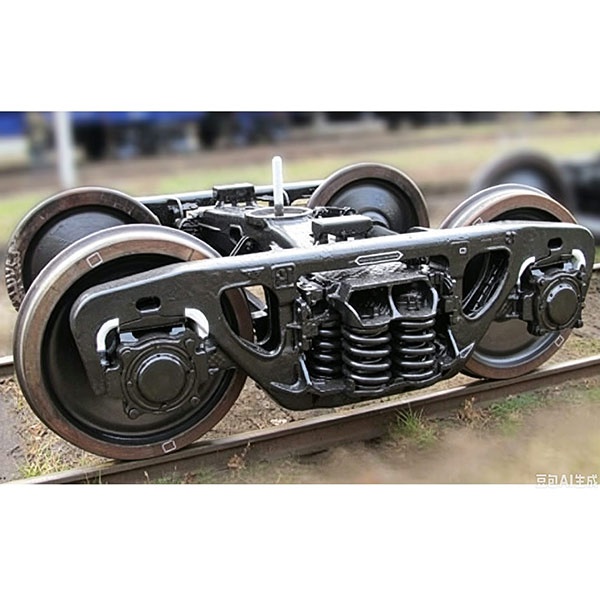

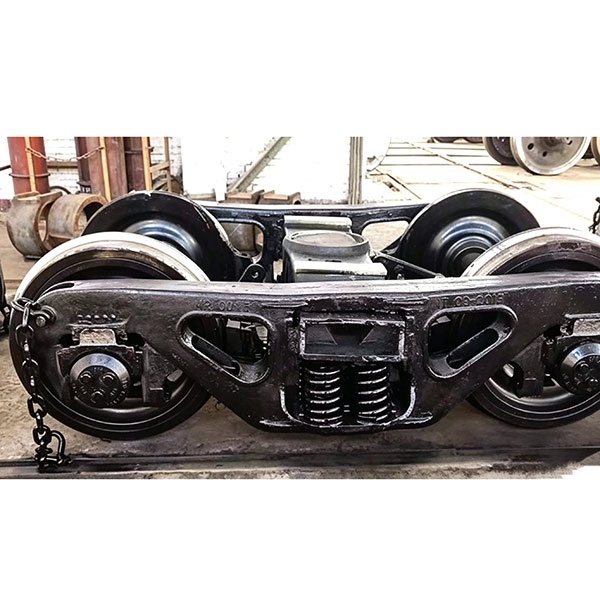

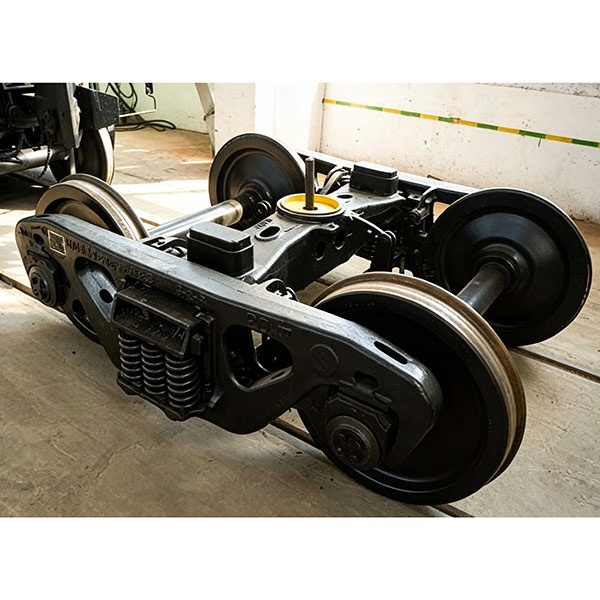

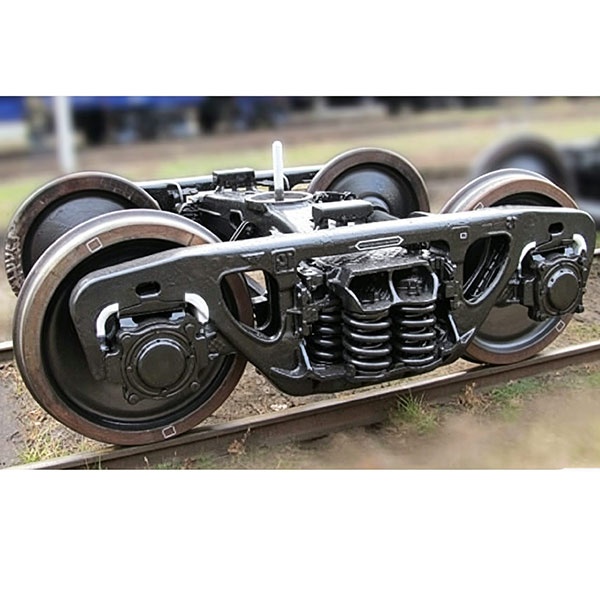

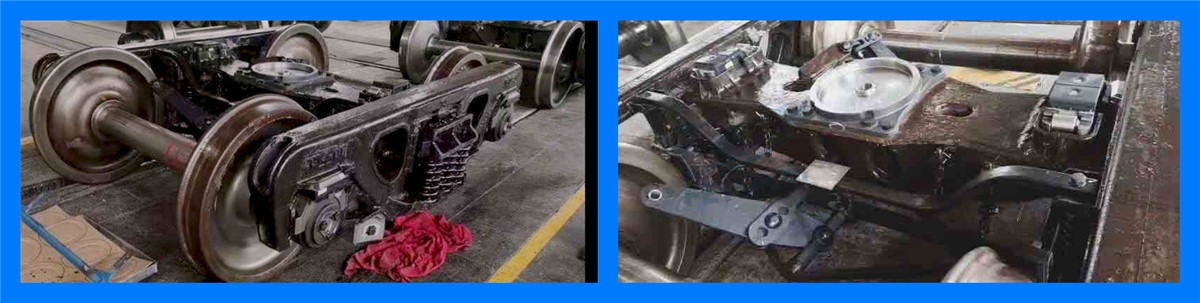

The three-piece bogie frame consists of two parallel side frames connected by a transversely mounted bolster. This configuration provides:

KEY FEATURES & BENEFITS

1. Heavy-Haul Load Capacity

The frame assembly is engineered for North American heavy-haul interchange conditions, supporting gross rail loads up to 286,000 lb standard, with configurations available for 315,000 lb on dedicated heavy-haul lines.

Nominal wheel load calculation at 286,000 lb gross rail load:

• Pwheel = 286,000 / 8 = 35,750 lb per wheel

This rating aligns with AAR M-976 Class K bearing specifications and standard 36-inch wheel dimensions.

2. Robust Frame Construction

Side Frames (2 per assembly):

• Cast steel or fabricated construction available

• Inverted trapezoidal window design for bolster engagement

• Integral pedestal roof interface for axle connection

Bolster (1 per assembly):

• Transversely mounted between side frames

• Cast steel construction with integrated center plate

• Double-action constant-contact resilient side bearings for yaw stability

3. Optimized Damping System

• Friction Wedge Damping: Variable or constant friction wedge configurations available

• Spring Nest: Coil spring group with 2.8-inch nominal static deflection at rated load

• Side Bearings: Constant-contact resilient design with preload for empty-car hunting control

When properly loaded, the spring nest compresses to engage friction wedges fully, providing the damping authority needed for stable 60 mph service.

4. Service Life & Reliability

TECHNICAL SPECIFICATIONS

Frame Assembly Dimensions & Ratings

Customization Options

• Gauge: Standard, broad, or narrow gauge configurations available

• Axle Load: 21t, 25t, or 30t+ options

• Suspension Tuning: Spring rates and damping characteristics adjustable

• Wheel Diameter: 33-inch to 38-inch options

• Bearing Type: Class K or alternate bearing configurations

• Brake Rigging: High-friction composite shoes or cast iron options

• Bogie technical characteristics
• The bogie structure can adjust slant of the body(passenger car), difference of the wheel load.
• Material of the each part meets railway industry standards and could use alternative material according to different regions and national standards
• Standard parts and general parts are used for each part and should be interchangeable.
• Design life is over 3 million km or 30 years
• Noise reduction measures(passenger car) for major components
• Different types of wheels can be used such as cast steel wheels, rolling forging wheels, elastic wheels
• The preliminary suspension is a metal rubber spring (passenger car), or a cylindrical coil spring with a vertical hydraulic shock absorber (passenger car), and the Secondary suspension is an air spring with an anti-roll torsion bar (passenger car)
• The mainframe is evaluated by finite element stress analysis and fatigue strength; Manufacture, welding follow railway standards, and with good corrosion resistance.
• Traction and transmission device are safe and reliable after simulated operation test.
• Easy to install, disassemble and have good maintainability.

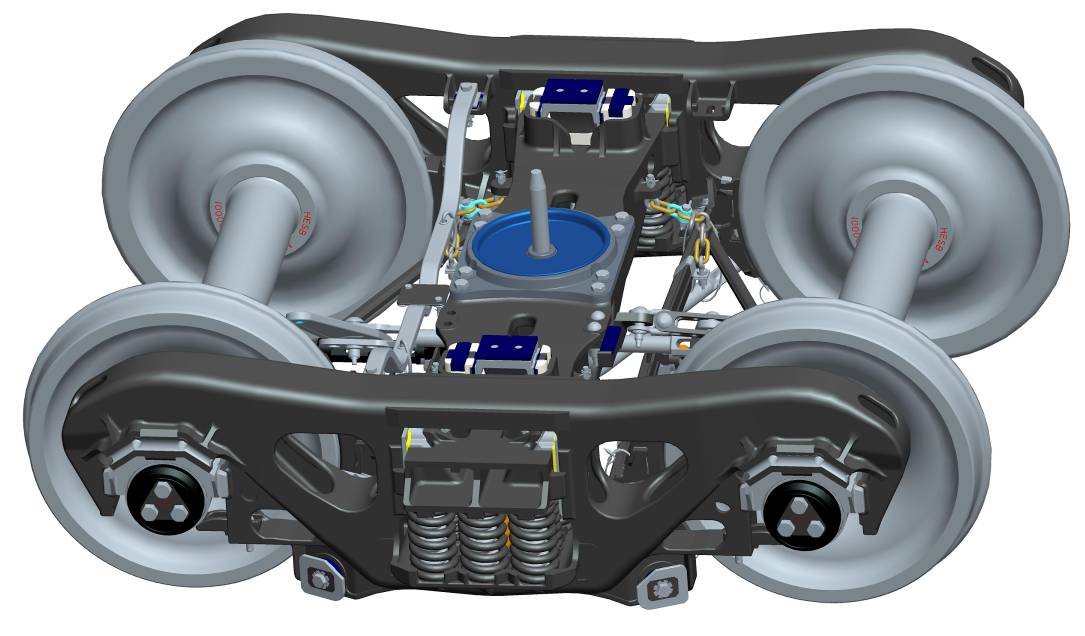

DESIGN & CONSTRUCTION

The 3-Piece Architecture

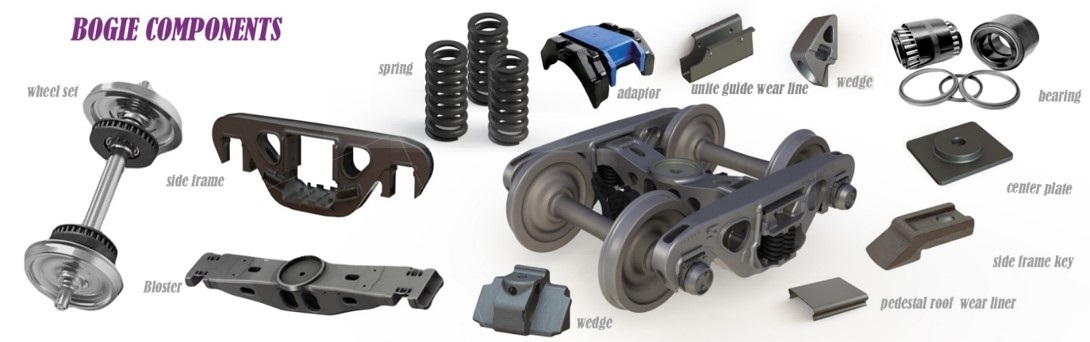

The three-piece bogie frame comprises:

1. Side Frames (×2)

• Longitudinal beams positioned outside the wheel sets

• Pedestal roof interface accommodates axle bearing adaptors

• Inverted trapezoidal windows for bolster ends

• Integral slide tracks for brake beam support

2. Bolster (×1)

• Transverse member connecting side frames

• Ends positioned within side frame windows

• Center plate for carbody connection

• Side bearing seats at each end

3. Connection System

• Load springs transmit vertical forces

• Friction wedges provide damping

• Side bearings control yaw resistance

Material & Quality Standards

The frame assembly is manufactured to meet or exceed:

All castings undergo rigorous quality control including chemical analysis, metallographic testing, ultrasonic testing, and magnetic particle inspection.

APPLICATIONS

The Heavy-Haul 3-Piece Freight Bogie Frame Assembly is suited for:
