PRODUCT OVERVIEW

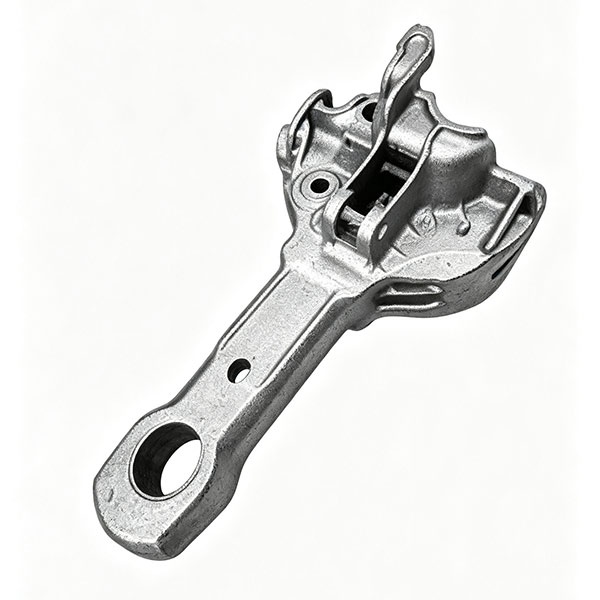

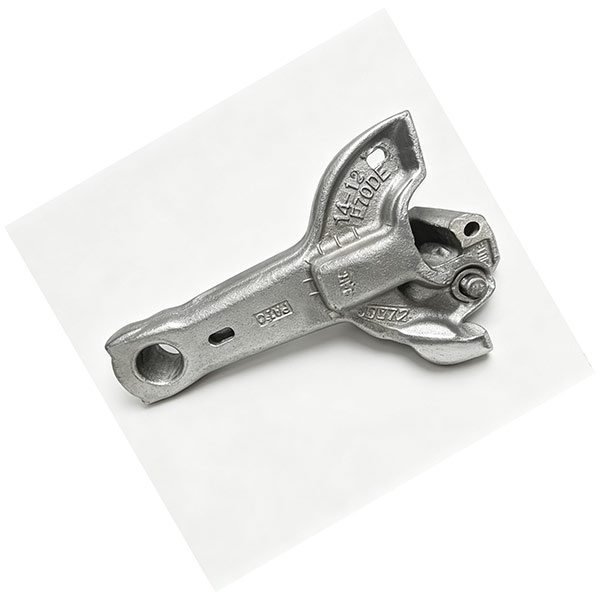

The FR Type Coupler is a specialized AAR-standard rotatable interlock coupler engineered for heavy freight wagons, particularly unit trains dedicated to bulk commodity transport such as coal, ore, and aggregates. This coupler enables rotary dumping operations without uncoupling—a critical capability that dramatically improves unloading efficiency in high-volume freight networks .

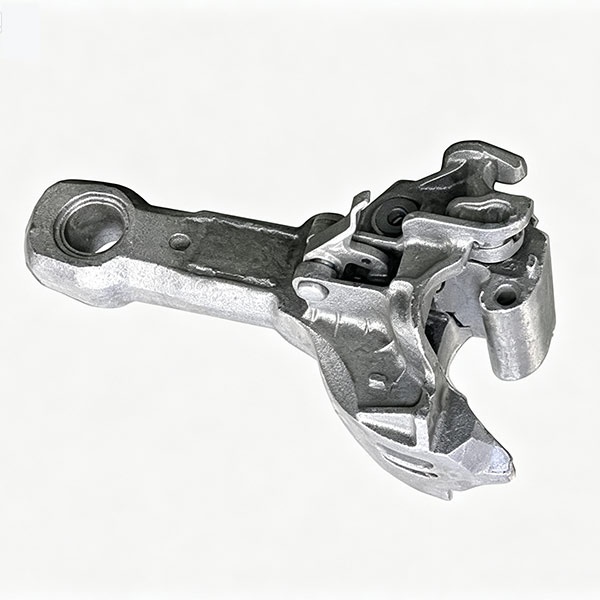

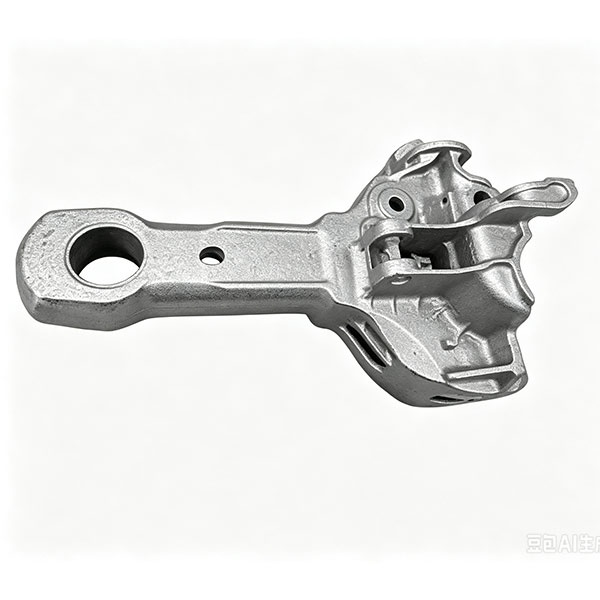

Built upon the proven F-type interlock platform, the FR coupler incorporates a rotation mechanism that allows individual wagons to be rotated for complete cargo discharge while maintaining train consist integrity. This design has been widely adopted across North American heavy-haul rail networks and has significantly enhanced freight transportation productivity .

FR vs. F-Type: Understanding the Difference

KEY FEATURES & BENEFITS

1. Rotatable Design for Efficient Unloading

The FR coupler was specifically developed to meet the requirements of mass goods transportation and turnover discharge . By enabling wagons to be rotated without uncoupling, it eliminates the need for time-consuming manual disconnection at dump sites, reducing cycle times and labor costs.

Third-Generation Rotary Technology: Advanced FR designs such as the FR304E feature spherical buff and draft surfaces that prevent hang-ups during dumping, require fewer parts, and save approximately 50 pounds per assembly compared to earlier generations .

2. Interlock & Anti-Decoupling Mechanism

The FR coupler incorporates a primary anti-creep mechanism to prevent unintentional disengagement . Additional safety features include:

• Anti-falling device beneath the hook head to prevent broken couplers from dropping onto the track

• Auxiliary interlock support for enhanced connection security

• Locking pin and bolt rod anti-disengagement functions

3. Superior Structural Strength

Manufactured from AAR M201 Grade E steel, the FR coupler offers exceptional structural integrity :

4. Reduced Coupling Clearance

The FR coupler features a touch profile gap of just 9.5mm—51% smaller than the E-type coupler. This reduced slack significantly diminishes longitudinal train impulses during operation, improving train dynamic performance and reducing wear on both rolling stock and track infrastructure .

5. Excellent Curve Negotiation

With a maximum relative angle between coupler heads of 3.45° horizontally and a longitudinal swing angle of 13° on the vehicle, the FR coupler provides reliable curve trafficability essential for varied route conditions .

TECHNICAL SPECIFICATIONS

FR Type Coupler - Key Parameters

Material Properties - Grade E Steel

Available FR Models

The FR coupler family includes several variants to suit different applications :

APPLICATIONS

The FR Type Coupler is ideal for:
