Product Description

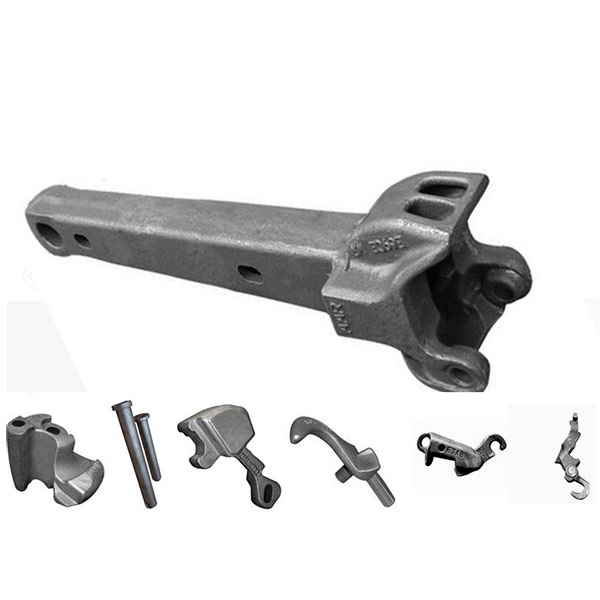

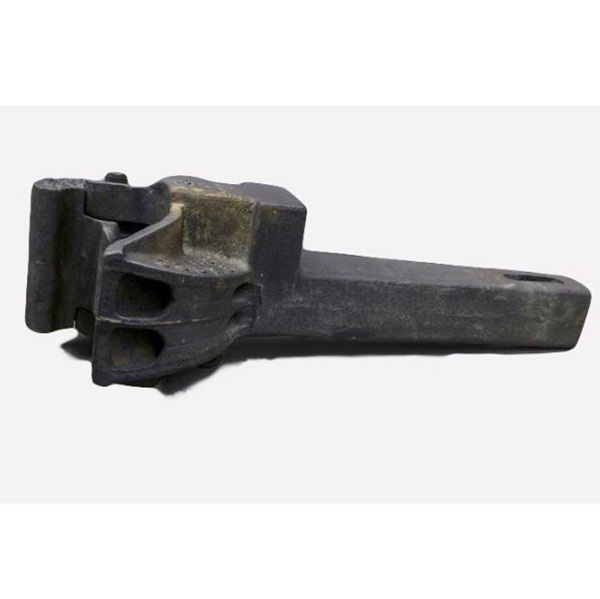

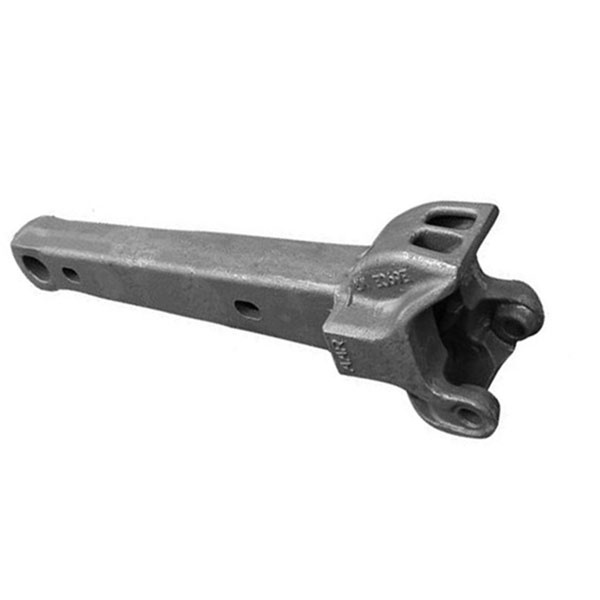

Our AAR Standard SE69CE Type EF Double Shelf Freight Wagon Coupler is a premium railway coupling component engineered to meet the stringent requirements of the Association of American Railroads. The SE69CE is an E/F Type coupler featuring both top and bottom shelves, designed for the most demanding freight service applications including hazardous material transportation .

E/F Type Design Heritage

The Type EF coupler was developed by combining the proven head geometry of the Type E coupler with the advanced shank and tail design of the Type F coupler . This hybrid design provides the lateral oscillating capability required for smooth curve negotiation on longer freight wagons, while maintaining compatibility with existing Type E coupler contours . The SE69CE represents a current service variant within the EF coupler family .

Double Shelf Safety System

The prefix "SE" in the model designation indicates double shelf configuration with both top and bottom shelves projecting from the coupler head front face . This safety feature serves a critical purpose:

The shelves prevent vertical coupler disengagement during train derailment, significantly reducing the risk of car climbing and minimizing the potential for tank car shell puncture . The bottom shelf supports a mating coupler in the event of pull-out from the car sill, keeping it from falling to the roadbed . The top shelf acts as a hood that prevents a derailed car's coupler from riding up and penetrating the head of an adjacent tank car .

Safety Mandate for Hazardous Materials

The double shelf coupler design was developed in response to safety concerns for tank car service in the 1970s. Following AAR mandates, all hazardous material tank cars in interchange service have been required to be equipped with couplers featuring top and bottom shelves since 1995 . This requirement applies to all AAR standard E, E/F, and F couplers .

Grade E Steel Construction

Our SE69CE coupler is manufactured from AAR M-201 Grade E steel, an alloy steel casting with heat treatment including quenching and tempering . Grade E steel provides high strength structure with reliable safety performance and excellent interchangeability . The material offers:

• Tensile strength: 850 N/mm² minimum

• Elongation: 14% minimum

• Impact energy: 27 J minimum

• Hardness range: 241-311 HBW

AAR S-172 Compliance

The SE69CE coupler is manufactured per AAR Standard S-172 for Coupler, E/F Type, SE69BE and SE69CE, Top and Bottom Shelf, ensuring full compliance with AAR technical and performance requirements . All production follows AAR specifications for material, manufacturing, and testing .

System Integration

The SE69CE is designed for integration with standard Type E/F coupler system components including:

• Yoke (Y40AE)

• Draft gear

• Coupler guide

• Follower blocks

Applications

• Hazardous material tank car service

• Interchange freight service requiring double shelf couplers

• Heavy haul rail operations

• Replacement parts for existing fleet

Please contact our technical team to discuss your specific requirements including material grade, quantity, and documentation.

Technical Data Sheet

Design Features

1. Double Shelf Safety System
The SE prefix identifies this coupler as a double shelf coupler with both top and bottom shelves projecting from the head end front faces . This design prevents vertical coupler disengagement during derailment and minimizes puncture risk for tank car shells .

2. E/F Type Hybrid Design
The EF type coupler combines the head geometry of Type E couplers with F type shank and tail design, providing excellent lateral oscillating capability for curve negotiation while maintaining interchangeability with Type E contours .

3. Grade E Steel High Strength Construction
Quenched and tempered Grade E steel provides the strength and safety performance required for heavy duty freight service . The material grade is permanently indicated on the casting.

4. Anti-Creep Mechanism
Modern E/F type couplers, including the SE69CE, incorporate anti-creep mechanism design to prevent disengagement during service operations .

5. Full Interchangeability
Maintains AAR standard dimensions and external contour for interchangeability with existing fleet equipment.

Applicable Standards

• AAR S-172 – Coupler, E/F Type, SE69BE and SE69CE, Top and Bottom Shelf

• AAR M-201 – Steel Castings for Couplers, Grade E

• AAR M-211 – Purchase and Acceptance of AAR Approved Couplers

• AAR M-901 – Quality Assurance Specification

Maintenance Notes

• Inspect top and bottom shelf surfaces for wear and deformation at scheduled maintenance intervals

• Verify casting marks for proper material grade identification

• Check knuckle, lock, and thrower operation during routine inspection

• Inspect for cracks or deformation per AAR inspection guidelines

• Replace components when wear exceeds AAR condemning limits
