Product Description

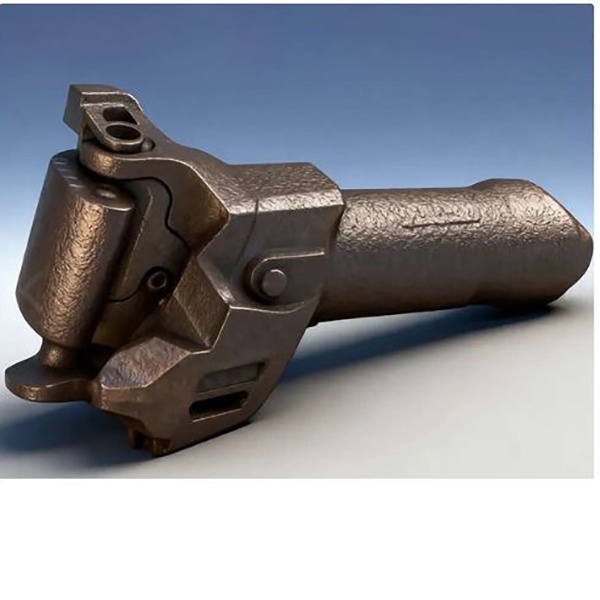

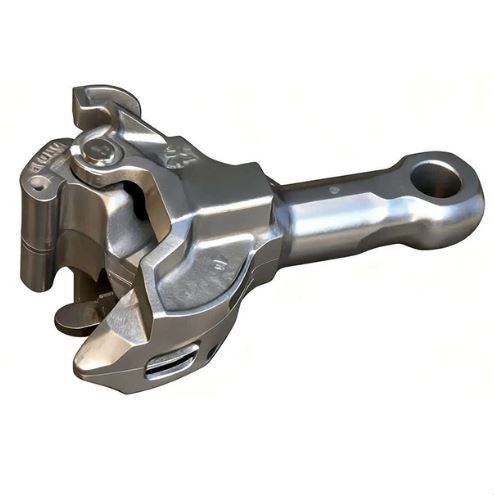

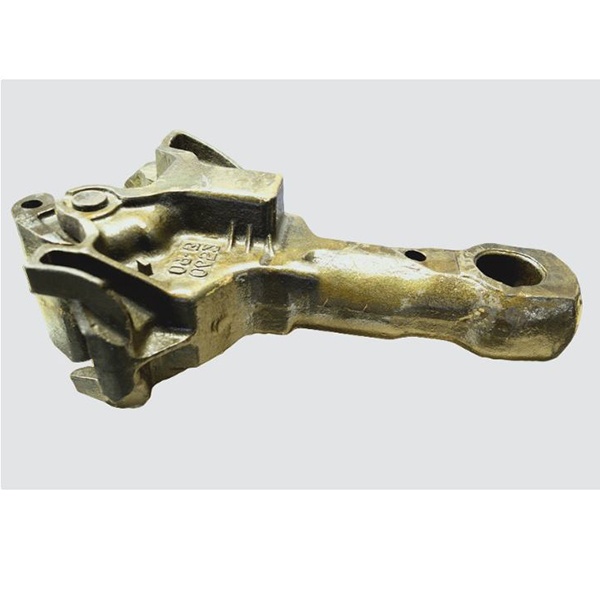

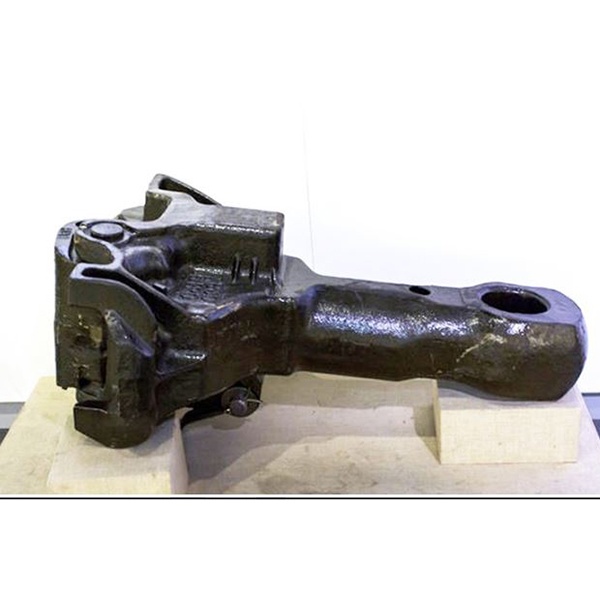

Our AAR SBE60DE Bottom Shelf Railway Coupler is a precision engineered Type E coupler designed and manufactured in compliance with the Association of American Railroads (AAR) standards, specifically AAR S-163 for couplers of this specification . The SBE60DE represents a critical advancement in the Type E coupler family, incorporating a bottom shelf design that provides enhanced anti-climbing protection and safety during train operations.

Type E Coupler Heritage

The Type E coupler, originally designed in 1932, has become the standard freight car coupler across North American railway networks . While standard Type E couplers do not interlock vertically and rely on contour design for separation prevention, the introduction of shelf couplers addressed the need for enhanced vertical retention during derailment scenarios . Our SBE60DE incorporates this crucial safety feature.

Bottom Shelf Anti-Climbing Feature

The SBE60DE designation includes a bottom shelf configuration (indicated by SB in the model designation) that provides mechanical interlocking capability. This feature significantly reduces the risk of coupler separation and car climbing during derailment or extreme service conditions . The shelf design works in conjunction with the standard Type E head contour to maintain compatibility with existing Type E couplers while adding vertical retention capability.

AAR Standard Compliance

Our SBE60DE coupler meets AAR S-163 specifications for E Type couplers with bottom shelf configuration . Compliance with AAR standards ensures reliable interchangeability with existing fleet equipment and adherence to North American railway safety requirements.

Material Options and Strength Grades

The coupler body is available in AAR M-201 Grade C steel or Grade E steel, both alloy steel castings with heat treatment including quenching and tempering . Grade E steel offers enhanced tensile strength for demanding heavy haul applications, with the material grade cast prominently on the product body for identification. Grade E+ material is also available for applications requiring maximum strength .

Rotary and Non Rotary Configurations

The SBE60DE can be configured as a single rotary bottom operating type (standard) or with optional top operating features . Rotary configurations are essential for rotary dumping operations common in unit train coal service. The coupler operates with standard Type E components including E50AE/E50ARE knuckles, E42AE locks, E30A throwers, and C10/C11 locklifts .

Interchangeability and Compatibility

All SBE60DE couplers feature the No. 10-A contour at coupler mating lines per AAR S-106 specification, ensuring full interchangeability with existing Type E couplers in service . The 21.5 inch shank length provides compatibility with standard yoke configurations.

Applications

• Unit train coal service with rotary dumping operations

• General freight interchange service

• Heavy haul rail operations

• Replacement parts for existing fleet

Please contact our technical team to discuss your specific requirements including material grade, operating configuration, and quantity.

Technical Data Sheet

Key Components and Replacement Parts

Design Features

1. Bottom Shelf Safety Feature
The bottom shelf provides mechanical interlocking capability that prevents vertical separation during extreme service conditions, reducing the risk of train jackknifing or car puncturing during derailments .

2. Standard Type E Compatibility
Despite the enhanced shelf feature, the SBE60DE maintains the standard Type E head contour and knuckle geometry, ensuring full interchangeability with conventional Type E couplers in fleet service .

3. Rotary Operating Capability
The SBE60DE is designed for single rotary bottom operation as standard, enabling efficient rotary dumping operations common in bulk commodity unit trains .

4. Material Grade Options
Selection of Grade C, Grade E, or Grade E+ steel allows customers to match material properties to specific service requirements, from standard freight to demanding heavy haul operations .

5. Cast in Material Identification
The material grade is permanently cast into the coupler body, providing immediate visual identification for maintenance and inspection personnel .

Applicable Standards

• AAR S-163 – Coupler, E Type, SBE60DE and SBE60EE, Bottom Shelf

• AAR S-106 – Coupler Contour Requirements (No. 10-A)

• AAR M-201 – Material Specification for Steel Castings for Couplers

Maintenance and Inspection

• Inspect shelf surfaces and coupler head for wear at scheduled maintenance intervals

• Verify casting marks for proper material grade identification

• Check knuckle, lock, and thrower operation during routine inspection

• Inspect for cracks or deformation per AAR inspection guidelines
