Product Description

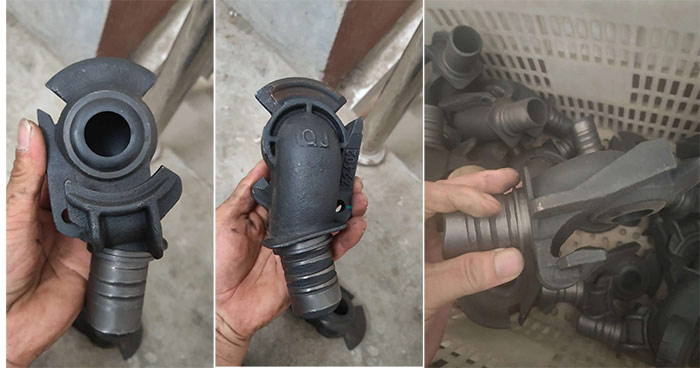

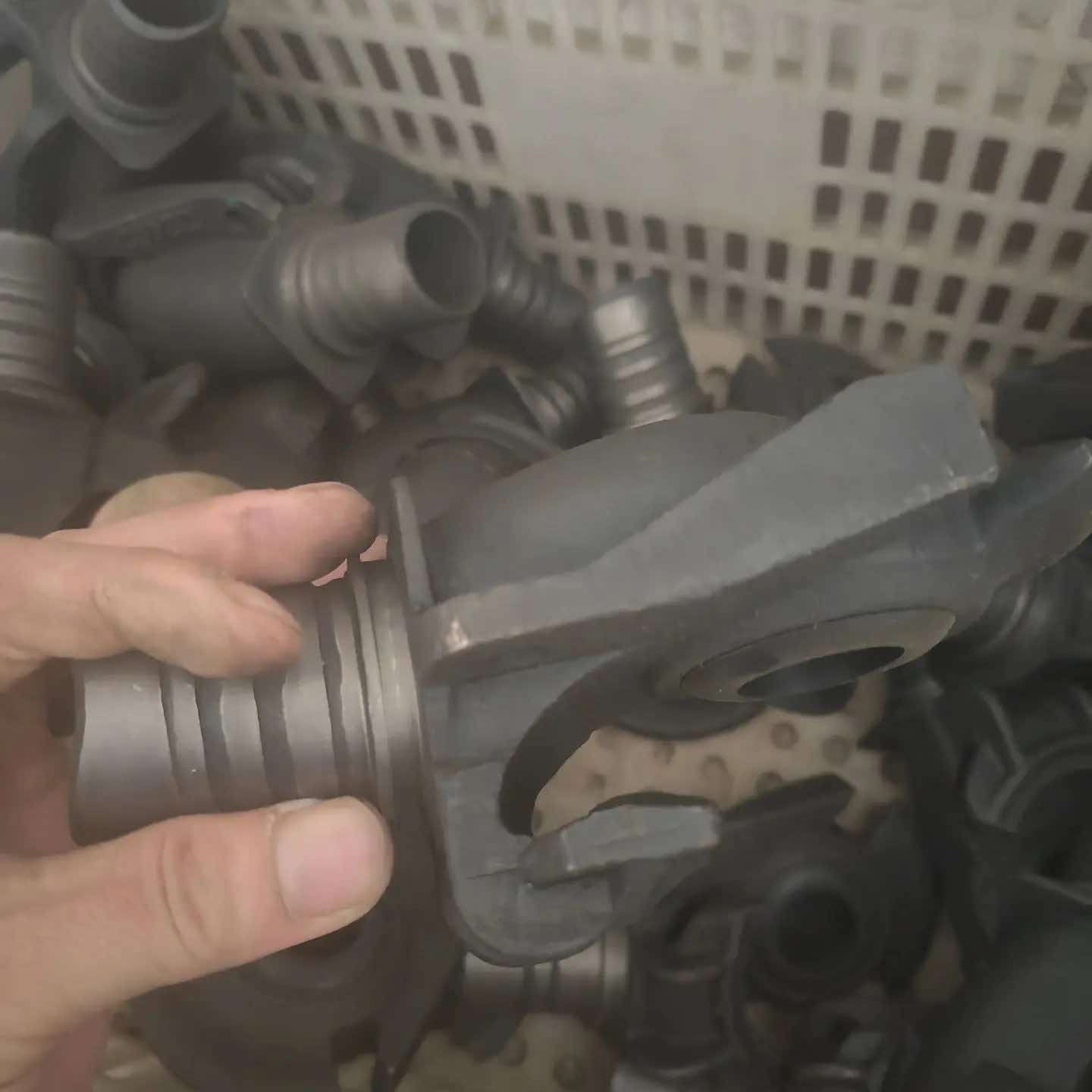

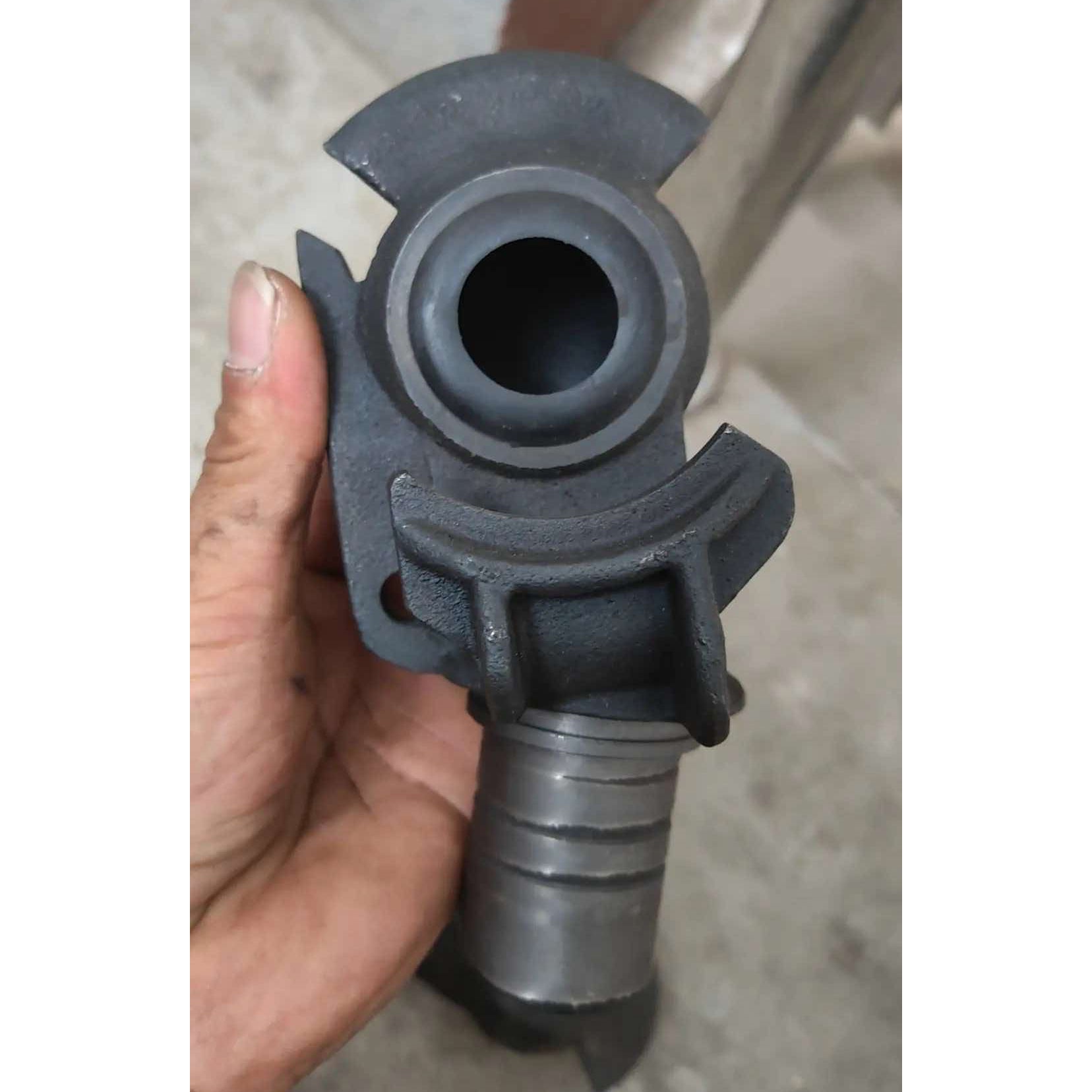

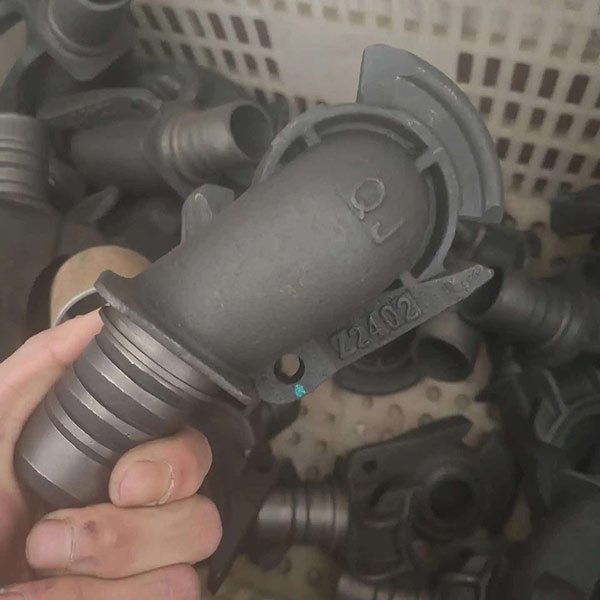

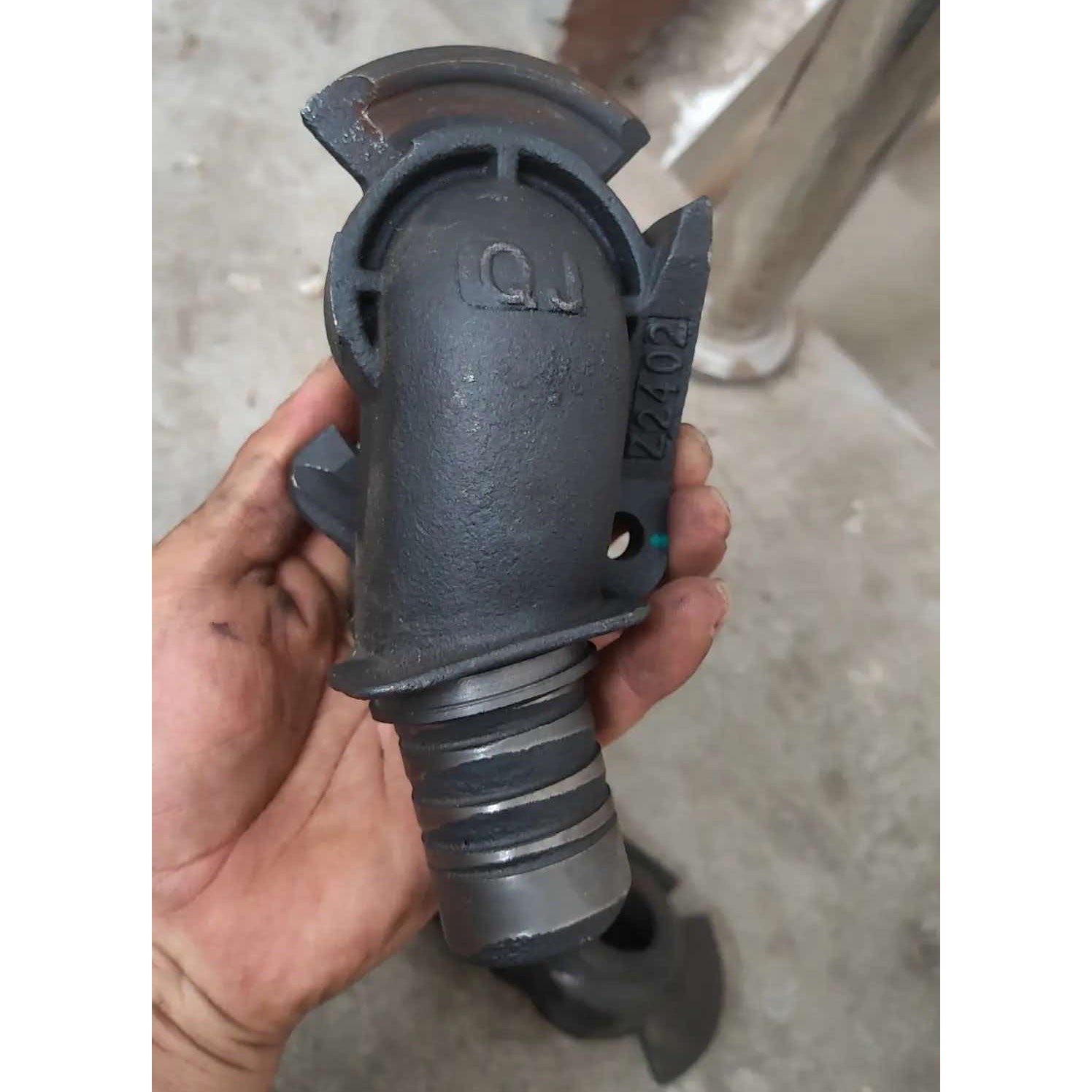

Our railway angle cock is a precision engineered valve component designed for freight car air brake systems, manufactured in compliance with both AAR standards and GB/T 2698-2009 specifications. The angle cock serves as the critical connection point between the rigid brake pipe running along the rail car and the flexible hose coupling that connects to adjacent cars . This valve enables train crews to open or close the flow of compressed air, which is essential for controlling brake application and release throughout the train consist.

AAR and GB Standard Compliance

Our angle cocks meet the rigorous requirements of both the Association of American Railroads (AAR) and Chinese GB standards. AAR is the standard setting organization responsible for technical and mechanical standards for freight rail equipment in North America . Brake components are subject to the most stringent AAR approval processes because brakes are safety critical systems that must operate reliably under all conditions .

Our product line complies with GB/T 2698-2009 for ball angle cocks and combined dirt collectors for rolling stock, and TB/T 3217-2009 for semi spherical angle cocks for locomotives .

Dual Compliance Advantages

By manufacturing to both AAR and GB standards, our angle cocks offer interchangeability across multiple railway networks. This dual compliance simplifies procurement for fleet operators and reduces spare parts inventory requirements.

Design and Construction

Available in two primary configurations:

Ball Type Angle Cock
Features a ball plug with flow passage that rotates 90 degrees between open and closed positions. The ball design provides reliable sealing with flexible sealing members that conform to the chamber walls under air pressure . This self sealing characteristic ensures positive shutoff and minimal leakage.

Semi Spherical Angle Cock
A robust design with a semi spherical plug mechanism, offering proven reliability in locomotive and freight car applications .

Spring Loaded Locking Handle

Our angle cocks incorporate a spring loaded locking handle mechanism that maintains the valve in its selected position against vibration and service shocks . The handle requires lifting before rotation, preventing accidental operation. The handle orientation also serves as a visual indicator: when the handle is aligned with the pipe, the valve is open; when perpendicular, the valve is closed . This intuitive design is specified by AAR standards for quick visual inspection .

Key Components

The angle cock assembly includes:

• Valve body with threaded inlet and outlet connections

• Rotatable plug or ball core with flow passage

• Spring loaded locking handle mechanism

• Flexible sealing members for positive shutoff

• Bonnet and O-ring seals to prevent external leakage

Dirt Collector Integration

Our angle cocks can be supplied as combined units with dirt collectors per GB/T 2698-2009, providing both flow control and filtration in a single assembly .

Applications

• Freight car air brake systems

• Locomotive brake connections

• Replacement and aftermarket parts supply

• International railway operations requiring both AAR and GB compliance

Please contact our technical team to discuss your specific requirements including AAR standard version, GB standard version, valve type preference, and quantity.

Technical Data Sheet

Design Features

1. AAR and GB Dual Compliance
Our angle cocks meet the technical requirements of both AAR and GB standards, ensuring compatibility with both North American and Chinese railway systems. AAR approval is mandatory for brake components used in North American freight service .

2. Visual Position Indicator
The handle orientation provides a clear visual indication of valve position: handle in line with the pipe indicates open, handle perpendicular indicates closed . This design feature enables car inspectors to quickly verify valve status without crawling under the car.

3. Spring Loaded Locking Mechanism
The handle incorporates a spring that biases the handle to a locked position, preventing unintended rotation due to vibration or service shocks . The handle must be lifted against spring tension before it can be rotated, providing positive locking in both open and closed positions.

4. Self Sealing Design
The ball or plug design features flexible sealing members that are pressure energized. Air pressure acting on the seals forces them against the chamber walls, providing a tight seal that improves with higher pressure .

5. Interchangeable Components
Manufactured to precise dimensional specifications per GB/T 1184 and GB/T 1804 tolerance standards, ensuring full interchangeability with existing angle cocks in service .

Applicable Standards

• AAR – Association of American Railroads technical and performance standards

• GB/T 2698-2009 – Ball angle cock and combined dirt collector for rolling stock

• TB/T 3217-2009 – Semi spherical angle cock for locomotive

• TB/T 2697-1996 – Superseded standard for angle cocks

• GB/T 6414 – Casting dimensional tolerances

• GB/T 1804-2000 – General tolerances for dimensions

Maintenance Notes

• Inspect angle cock handle for proper spring tension and locking action

• Check sealing surfaces for wear or damage during routine maintenance

• Verify handle orientation matches valve position

• Test for leakage at connections

• Ensure smooth rotation operation
