Product Description

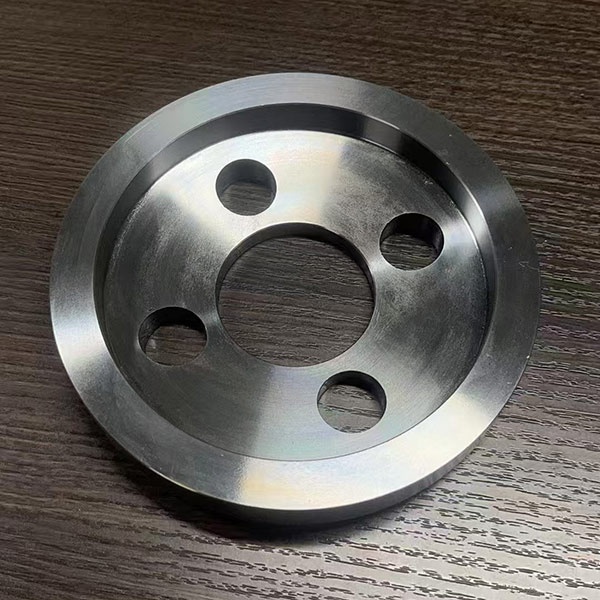

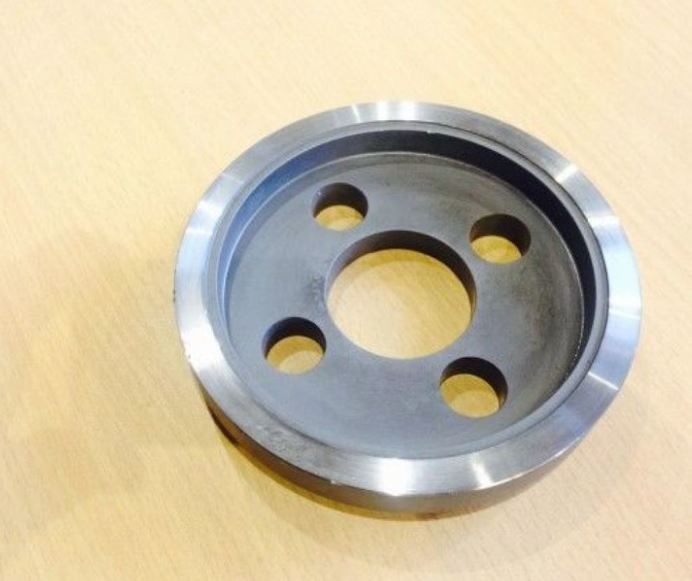

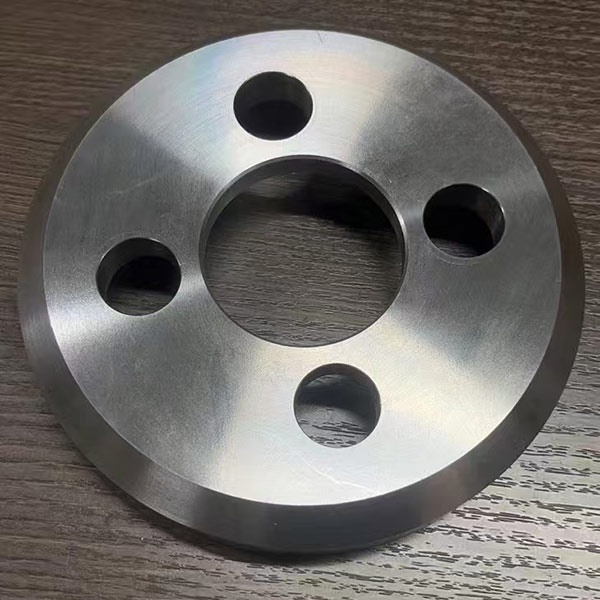

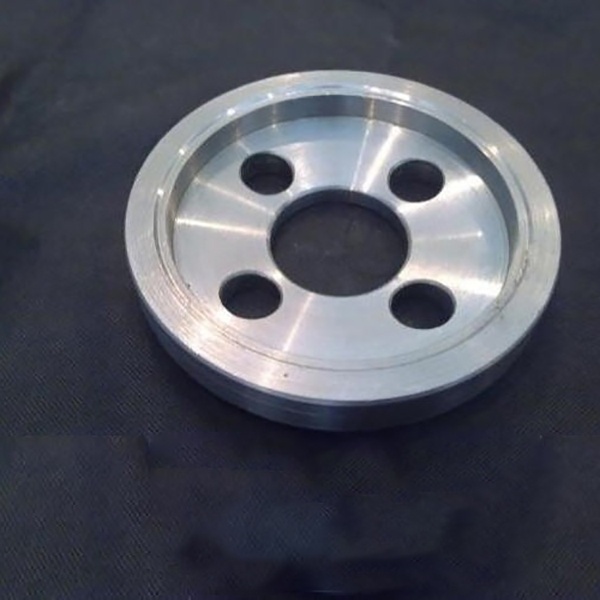

Our GOST Standard Fixed Cover is a precision engineered component specifically designed for Russian railway axle box assemblies used in heavy duty freight wagon bogies. This fixed cover serves as the opposite side sealing component to the fastening cover, providing essential protection for the axle bearing assembly against dust, moisture, and mechanical damage .

18-100 Bogie Compatibility

This fixed cover is designed for the Russian 18-100 bogie, widely used across 1520 mm gauge railway networks in Russia, Ukraine, and other CIS countries . It is an integral component of the axle box unit that connects the wheelset to the bogie frame while supporting the vehicle's weight and allowing smooth wheel rotation .

Heavy Duty Construction

Manufactured from high strength cast steel ZG230-450 using precision casting methods, the fixed cover ensures reliable sealing performance under heavy load and harsh operating conditions . The material provides excellent durability and resistance to impact loads encountered during heavy haul freight operations.

Surface Protection

All fixed covers receive anti-rust oil treatment to ensure long service life even in demanding environmental conditions, protecting against corrosion and wear during extended freight operations .

Key Components and Part Numbers

The complete axle box assembly includes both fixed cover and fastening cover components. The fixed cover is identified by part number 100.10.002 and works in conjunction with the fastening cover (100.10.052-0) to provide complete sealing of the axle bearing housing .

GOST Compliance

Our fixed cover meets the requirements of GOST 34385-2018, the interstate standard for axle-boxes and adapters for wheelsets of freight wagon bogies, which establishes general technical specifications and quality requirements . This standard covers axle boxes and their components, including covers, for two-axle three-element bogies per GOST 9246 .

Applications

• 18-100 bogie freight wagons

• 1520 mm gauge railway operations

• Heavy haul and bulk commodity transportation

• Replacement and aftermarket parts supply

Please contact our technical team to discuss your specific requirements including quantity, packaging, and delivery schedules.

Technical Data Sheet

GOST Standard Fixed Cover – Technical Specifications

Design Features

1. Reliable Sealing Performance
The fixed cover works in conjunction with the fastening cover to provide complete external sealing of the axle box housing, preventing contaminants from entering the bearing area while retaining lubricant within the bearing housing .

2. Robust Cast Steel Construction
Manufactured from ZG230-450 cast steel, the fixed cover withstands the demanding conditions of heavy duty freight service including high impact loads, vibration, and extended service intervals .

3. Precision Fit and Interchangeability
The cover is manufactured to precise dimensions per original drawings, ensuring full interchangeability with existing components in the 18-100 bogie system .

4. Anti-Rust Protection
Surface treatment with anti-rust oil provides corrosion protection for long service life in harsh operating conditions .

Applicable Standards

• GOST 34385-2018 – Axle-boxes and adapters for wheelsets of freight wagon bogies. General specifications

• GOST 9246 – Two-axle three-element bogies for freight wagons of 1520 mm gauge railways

• GOST 977-88 – Steel castings. General specifications

Maintenance Notes

• Inspect fixed cover for cracks or deformation during routine maintenance

• Check sealing surfaces for wear or damage

• Ensure proper torque on mounting hardware

• Apply appropriate anti-corrosion treatment if surface coating is damaged
