Product Description

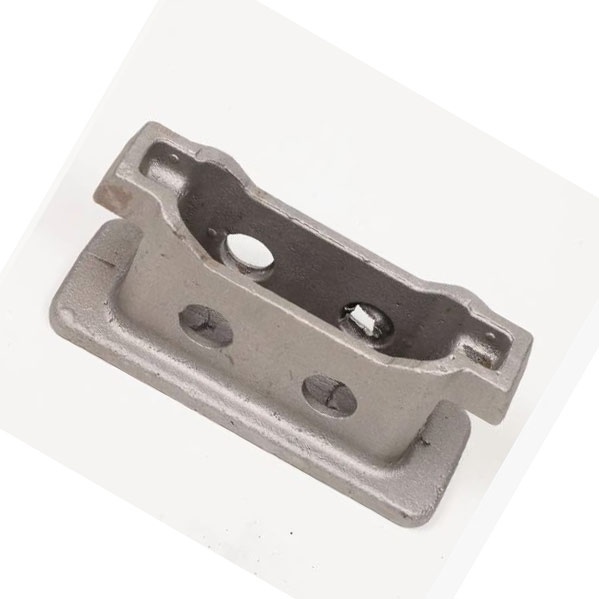

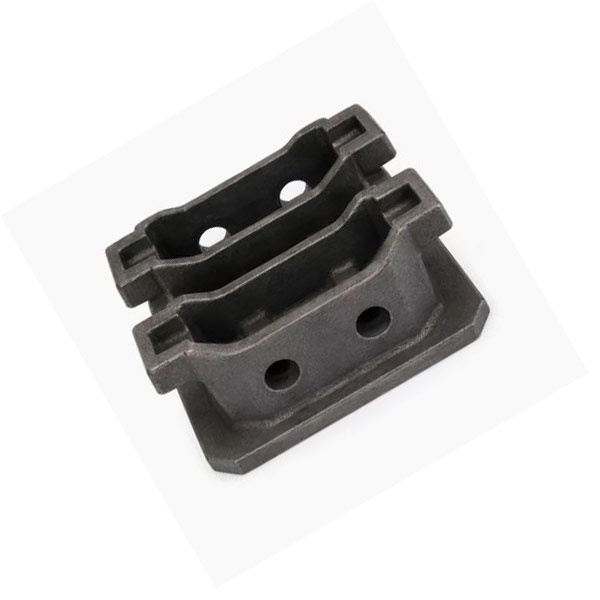

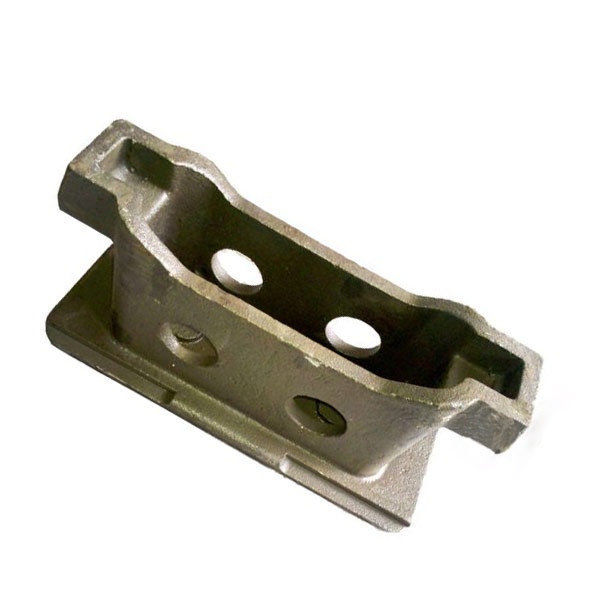

Our C80 Railway Coupler Support Seat is a precision-engineered structural component specifically designed for the C80 series heavy-haul freight wagons widely used in bulk commodity transportation. This support seat serves as a critical load-bearing element in the coupler system, providing stable vertical support to the coupler while accommodating height adjustments essential for safe and reliable train operation.

C80 Series Compatibility

The C80 series (including C80, C80A, C80B, and C80C models) represents China's primary heavy-haul coal transport wagon fleet, operating on 1520mm gauge lines. The coupler support seat is a key wear-prone component that directly affects coupler height maintenance and operational safety . During routine maintenance, adjusting the coupler height typically involves replacing the support seat wear plate, with metal wear plates available in 6–14mm thickness and non-metal wear plates in 8–14mm thickness for C80 series wagons .

Durable Wear Plate Design

The support seat features an integrated wear plate interface that accommodates both metal and non-metal (engineered polymer) wear plates. The wear plate can be replaced without removing the coupler assembly – simply lift the coupler for quick access, significantly reducing maintenance downtime . The wear plate's retention mechanism uses a boss-and-socket fit with optional side flange engagement for enhanced lateral and longitudinal positioning .

Robust Structural Integrity

Manufactured from high-strength steel with precision welding or casting processes, the support seat integrates with the coupler carrier and the vehicle's end sill and draft sill to form a unified load-bearing structure. This closed-box construction enhances overall end-of-car structural strength and protects against environmental ingress . The support surface features a recessed groove design that securely retains the wear plate while allowing thermal expansion and service replacement .

Coupler Height Management

Proper coupler height is critical for safe train operation. The standard coupler center height above rail is 880±10mm, with a maximum height difference of 10mm between couplers on the same vehicle . Our support seat facilitates height adjustment by enabling the installation of wear plates of specified thicknesses, ensuring compliance with operational requirements.

Service and Maintenance

Inspection of the coupler support seat and its wear plate is a standard procedure during wagon periodic maintenance. Worn components can be replaced by swapping the wear plate or, where applicable, adding a reinforcing steel plate up to 8mm thickness to the coupler yoke support plate structure . This flexibility minimizes lifecycle maintenance costs and extends service intervals.

Applications

• C80 series heavy-haul coal wagons

• Bulk commodity freight transportation

• 1520mm gauge railway operations

• Replacement and aftermarket parts supply

For technical specifications, dimensional drawings, or to place an order, please contact our sales engineering team.

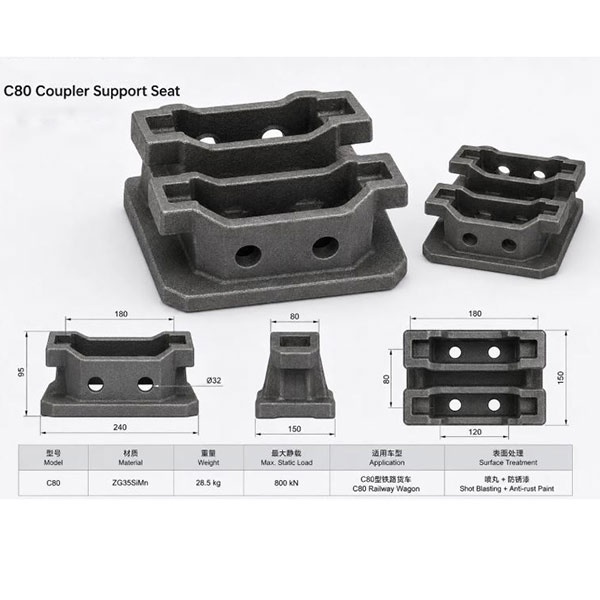

Technical Data Sheet

Design Features

1. Wear Plate Replacement Without Coupler Removal – The support seat accepts wear plates that can be replaced by lifting the coupler, eliminating the need for complete coupler disassembly .

2. Multiple Wear Plate Options – Supports both metal and non-metal (engineered polymer, such as oil-impregnated nylon) wear plates for different operating conditions and maintenance budgets .

3. Enhanced Structural Design – Optional closed-box section construction for improved strength-to-weight ratio and protection against corrosion .

4. Gap and Height Adjustment – The support seat design accommodates adjustment of coupler sag/droop by swapping wear plates of appropriate thickness, ensuring optimal coupler alignment.

Maintenance Notes

• Inspect wear plate thickness at scheduled maintenance intervals

• Replace wear plate when thickness falls below minimum specification

• For C80 series: metal wear plates should be between 6–14mm; non-metal wear plates between 8–14mm

• When using metal coupler yoke support plates, a reinforcing steel plate up to 8mm may be welded if required
