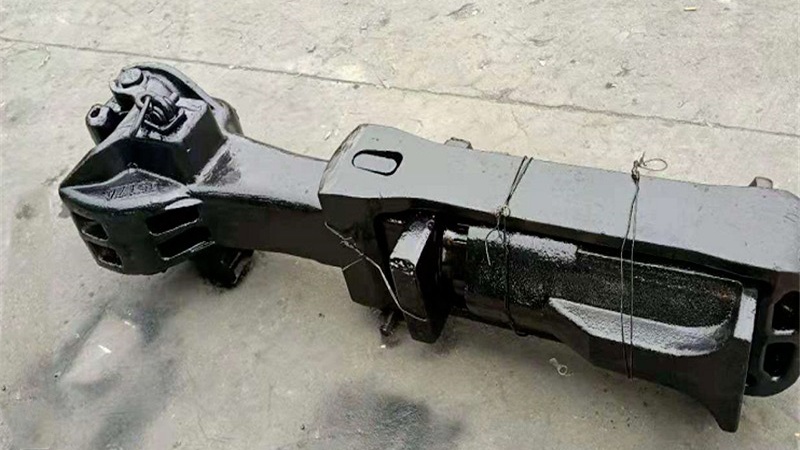

Durable China Railway Automatic Knuckle Couplers for Heavy-Haul Rail

Product No.：202382212716
Online Inquiry

Engineering Excellence of China Railway (CR) Coupling Systems

1. Structural Evolution and Design Standards

China Railway (CR) Couplers are engineered to facilitate high-capacity, heavy-haul transportation across one of the world’s most demanding rail networks. Unlike standard light-rail couplings, CR couplers are designed to manage extreme longitudinal forces inherent in 10,000 to 20,000-ton consist trains.

All components are manufactured in strict accordance with TB/T (China Railway Industry Standards), specifically focusing on TB/T 456 (General specifications for railway couplers and yokes).

1. Technical Performance Matrix

The following table highlights the specifications of the most prominent China Railway coupler models used in global export and domestic heavy-haul:

Feature	Type 13 (Standard)	Type 16 (Interlocking)	Type 17 (High-Strength)
Material Grade	Grade E Cast Steel	Grade E / E+ Steel	Grade E+ Cast Steel
Tensile Load Capacity	$\ge 2,250 \text{ kN}$	$\ge 3,000 \text{ kN}$	$\ge 3,450 \text{ kN}$
Compression Load	$\ge 3,000 \text{ kN}$	$\ge 3,500 \text{ kN}$	$\ge 4,000 \text{ kN}$
Interlocking Feature	Non-Interlocking	Semi-Interlocking	Full Interlocking (F-type style)
Primary Application	General Freight Wagons	80t Capacity Wagons	100t+ Heavy-Haul (Coal/Ore)

3. Metallurgical Integrity: Grade E & E+ Steel

The reliability of CR couplers stems from advanced metallurgy. We utilize vacuum-degassed, fine-grained cast steel to ensure maximum fracture toughness.

Chemical Composition: Optimized Carbon-Manganese-Silicon alloy with trace elements (Ni, Cr, Mo) to enhance hardenability.
Mechanical Properties: * Yield Strength: $\ge 620 \text{ MPa}$
- Impact Energy (Charpy V-Notch): $\ge 27 \text{ J}$ at $-40\text{°C}$ (Ensuring performance in Siberian or Alpine climates).

4. Key Engineering Innovations

4.1 Anti-Uncoupling & Interlocking (Type 17)

The Type 17 Coupler features a specialized interlocking wing design. In the event of a derailment or extreme track verticality, the interlocking interface prevents the coupler heads from separating vertically, significantly reducing the risk of train pile-ups and protecting the Railway Axle and bogie integrity of adjacent cars.

4.2 Wear-Resistant Knuckle Technology

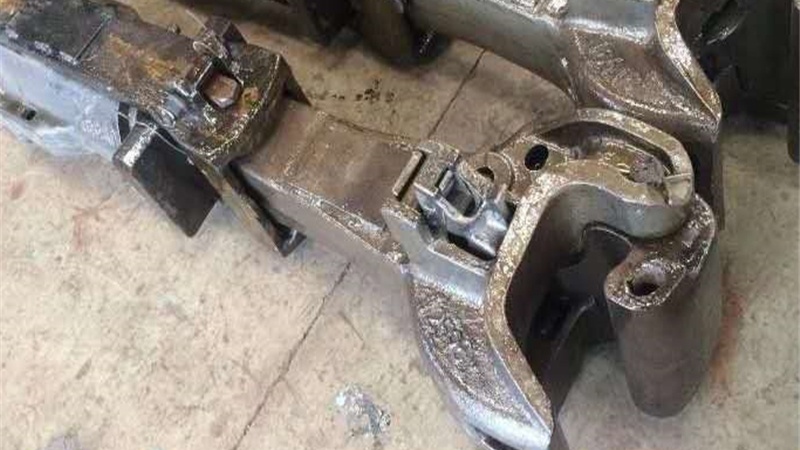

The knuckle is the primary wear component. Our CR couplers feature:

Induction Hardened Surfaces: Critical contact faces are hardened to $380 - 450 \text{ HBW}$.
Precision Geometry: Minimizing the "slack" or free-play within the coupling contour to reduce longitudinal impact shocks during braking and acceleration.

5. Non-Destructive Testing (NDT) & CRCC Certification

To meet the "Zero-Defect" mandate of China Railway, every coupler undergoes a multi-stage quality protocol:

Magnetic Particle Inspection (MPI): 100% surface inspection to detect micro-fissures in the knuckle and shank transition zones.
Ultrasonic Testing (UT): Internal volumetric inspection ensuring no casting shrinkage or gas porosity.
Static Tensile Testing: Destructive and non-destructive load testing to verify the yield point.
Certification: All products carry the CRCC (China Railway Test & Certification Center) mark, the prerequisite for any component entering the CR supply chain.
