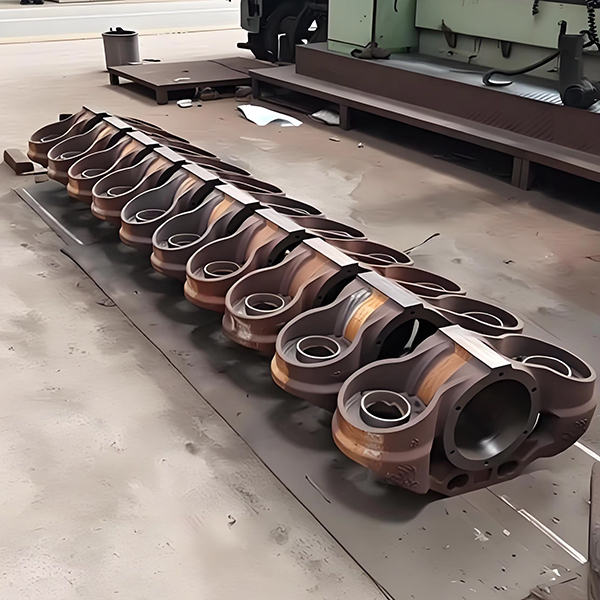

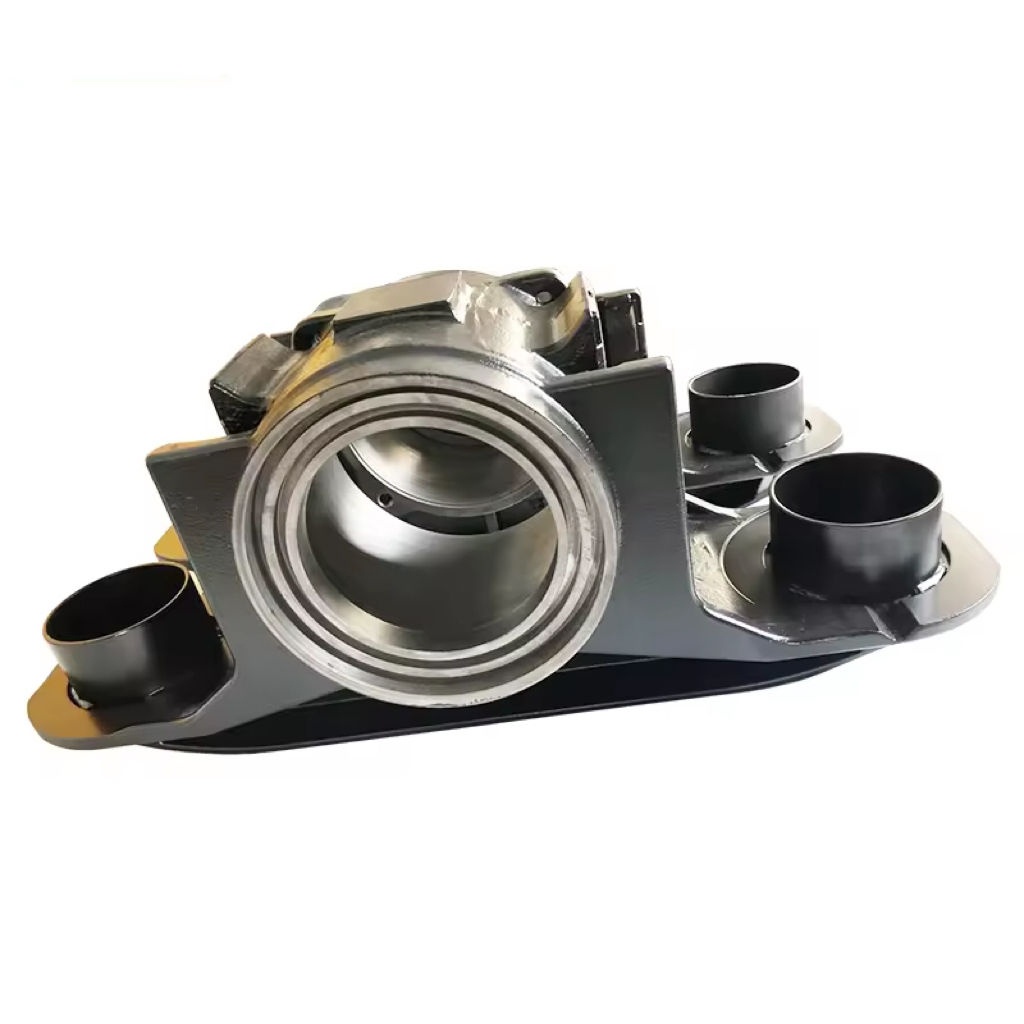

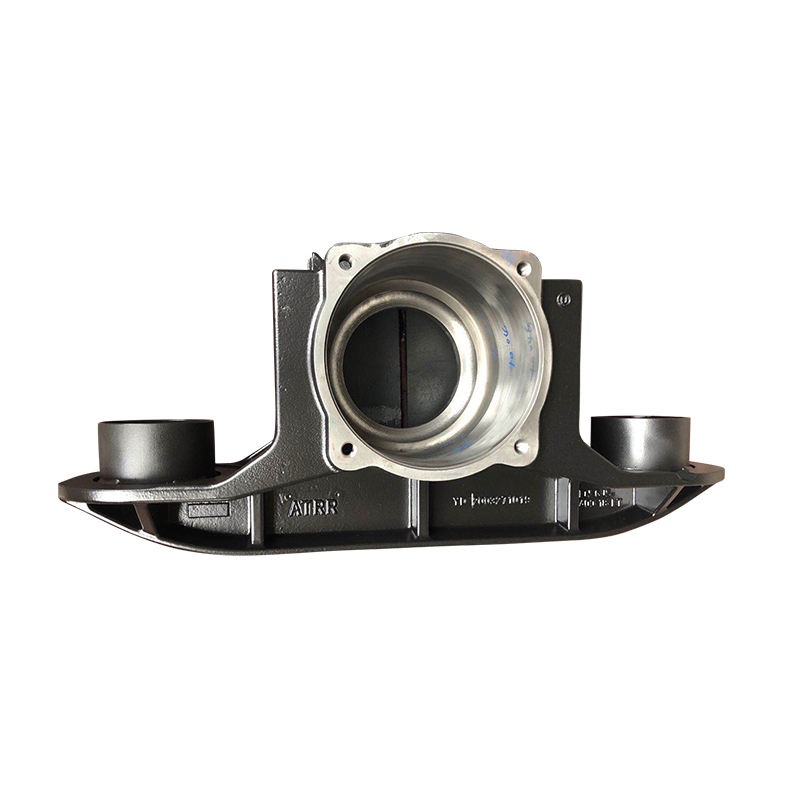

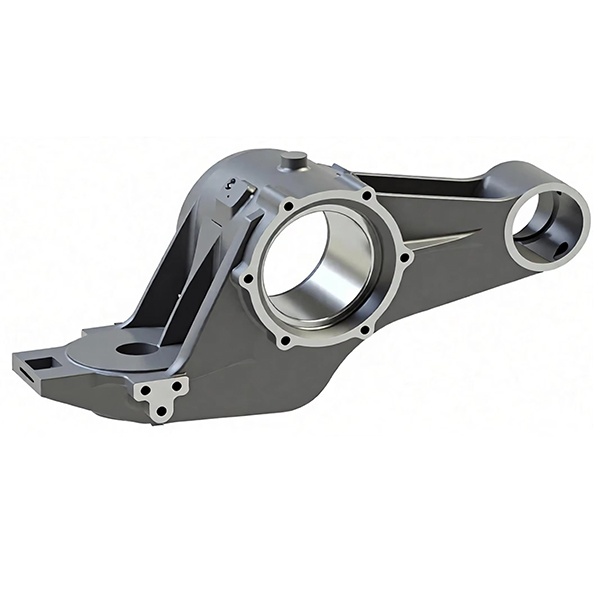

Metro Cast Steel Axle Box for Railway Vehicle

Our Metro Cast Steel Axle Box is a precision-engineered railway component designed for metro, passenger coach, and freight wagon bogie applications. The axle box serves as the critical interface between the wheelset and the bogie frame, housing the rolling bearings that allow the axle to rotate while transmitting vertical and lateral loads from the vehicle body to the wheelset. Manufactured through advanced casting processes, our axle boxes meet rigorous international railway standards for safety, durability, and performance in demanding urban transit environments.

Product Overview

The axle box (also referred to as axlebox or journal housing) is a fundamental component of railway bogie systems. It functions as the suspension connection point between the axle bearings and the bogie frame, working in conjunction with axle box springs to permit vertical movement and sliders to prevent lateral movement. Our cast steel axle boxes are designed for reliable operation on metro networks worldwide, supporting axle loads up to 25 tons with proven performance.

Key Technical Specifications

Material Compliance

• Cast Steel: Manufactured to Grade 230-450W per IS:1030, with chemical composition controlled for Carbon, Manganese, Sulfur, and Phosphorus content

• Ductile Cast Iron: Available in GGG40/EN-GJS-400-18-LT per EN 1563 for European UIC applications

• Traceability: Each axle box marked with manufacturer name, heat number, month and year of manufacture

Quality Assurance

All activities relating to quality assurance are maintained under an ISO 9001 certified quality management system. Key quality controls include:

• Pattern and core box inspection

• Sand preparation quality

• Molding and core making control

• Metal pouring monitoring

• Heat treatment cycle recording (time vs. temperature charts)

• 100% visual examination of rough and finish machined surfaces

• 2% radiographic examination per heat (minimum one per heat)

• Comprehensive inspection: visual, gauging, NDT





Key Features

• Heavy-Haul Capability: Supports axle loads up to 25 tons, ideal for metro and freight applications

• Precision Machining: Axle box bore finish machined to exacting tolerances for optimal bearing fit

• Defect-Free Casting: Radiographic and NDT tested to ASTM E446 Level IV standards, ensuring freedom from blowholes, porosities, and sand inclusions

• Corrosion Protection: Coated with red oxide zinc chromate primer (IS:2074), bore protected with grease or rust-preventive oil

• Packaging Security: Individually packed in wooden boxes with bore covers to prevent damage and contamination during transit

• Customization: OEM designs available based on customer drawings

Applications

• Metro/Subway train bogies

• Passenger railway coaches (up to 250 km/h)

• Freight wagon bogies (Y25, 18-100 types)

• Locomotive bogies (GE, EMD compatible)

• Light rail vehicles

Scope of Supply

Typical supply includes: axle box housing, cover, labyrinth ring, hex head screws M16x40 with washers, and O-ring seals as per customer specifications.

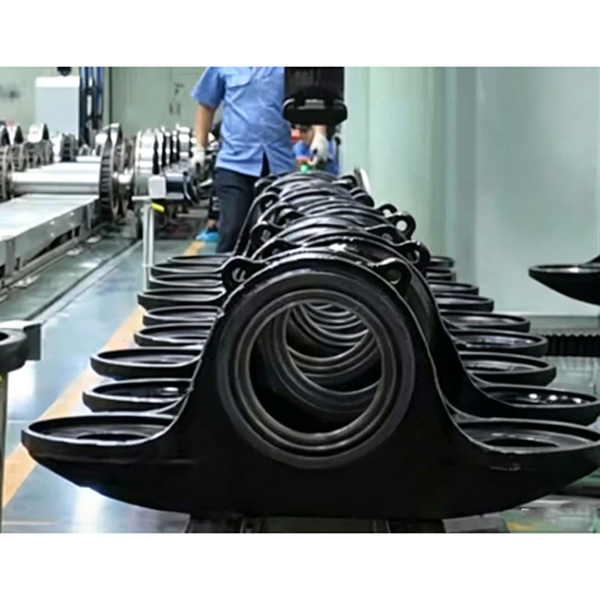

Production & Delivery

• Production Capacity: 10,000+ pieces per month

• Customization: OEM designs available

• Packaging: Standard export wooden packaging with bore protection
