AAR Standard Railway Wheelset for Freight Wagon

Our AAR Standard Railway Wheelset is designed specifically for heavy-duty freight wagon applications, delivering exceptional durability, safety, and performance in demanding rail operations. Manufactured to meet stringent AAR (Association of American Railroads) standards, this wheelset ensures reliable service under high axle loads and extended operational cycles.

Product Overview

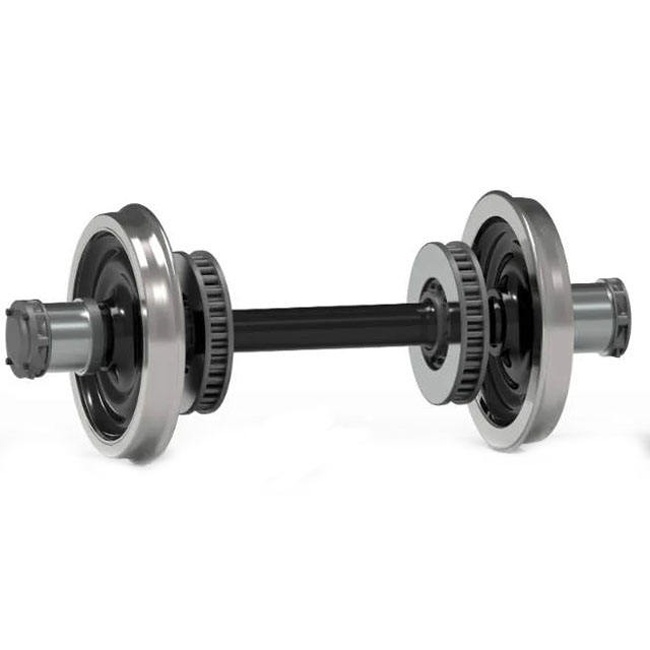

Each wheelset comprises two forged steel wheels precision-pressed onto a solid forged axle, forming a unified assembly that supports vehicle weight, transmits tractive and braking forces, and guides the train along the rails. The wheelset is engineered for freight wagons operating on standard and narrow gauge rail networks worldwide.

Key Technical Specifications

Material Compliance

• Wheels: Manufactured from AAR M 107 Class B steel, ensuring high rim hardness and wear resistance for extended service life

• Axles: Forged from AAR M 101 Grade F steel with tensile strength ≥800 MPa and yield strength ≥600 MPa

• Bearings: Compatible with Class C rolling bearings (FAG or SKF) with 800,000 km service life

Key Features

• Heavy-haul Capability: Supports axle loads up to 25 tons, ideal for bulk freight and heavy cargo transportation

• Precision Engineering: Wheels and axle mounted via interference fitting with press force of 80-90 tons, ensuring structural integrity

• International Compatibility: Available for rail gauges including 762mm, 1000mm, 1067mm, 1435mm, 1520mm, and 1676mm

• Comprehensive Quality Assurance: 100% non-destructive testing (NDT) performed on each wheelset to ensure defect-free components

• Traceability: Each wheel and axle stamped with unique type and serial numbers for full traceability throughout service life

Applications

• Heavy-haul freight wagons

• General freight railcars

• Industrial railway vehicles

• Mining rail transport vehicles

Customization

We offer OEM customization based on customer drawings and technical specifications, including custom wheel diameters, axle dimensions, bearing configurations, and protective coatings (4-5mm thick coating available for corrosion resistance).

Production & Delivery

• Production Capacity: 3,000 sets/month (wheels), 10,000 pieces/year

• Delivery Time: 30-45 days for standard orders

• Packaging: Standard export wooden packaging or as per customer requirements
