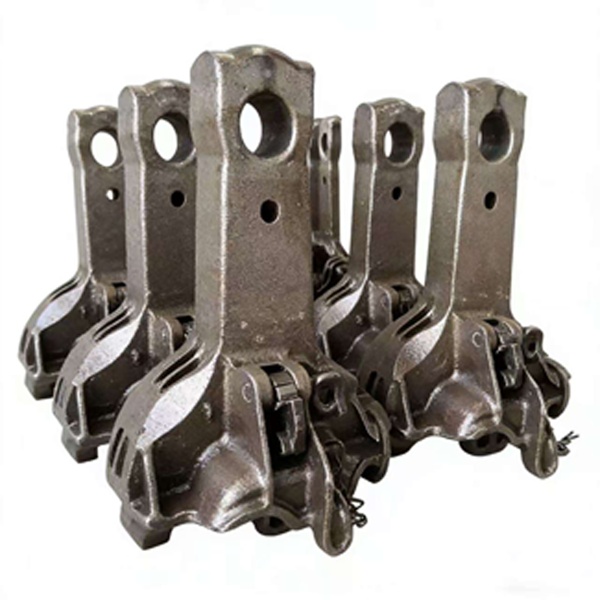

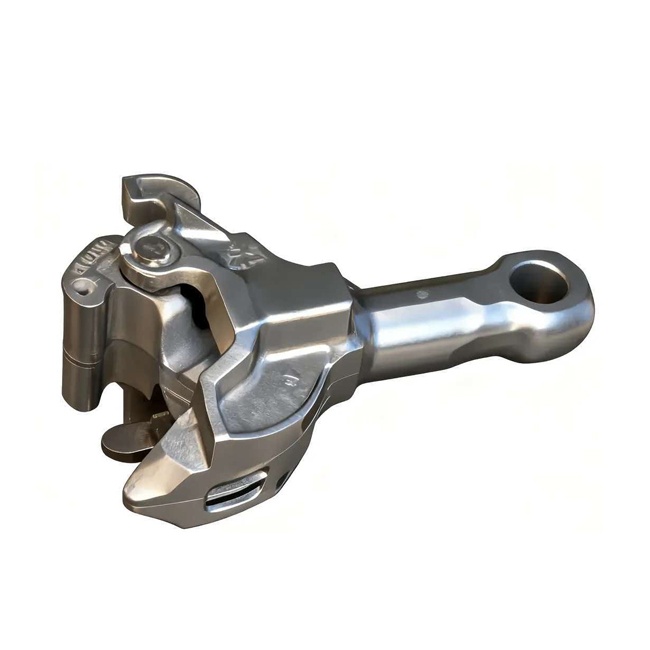

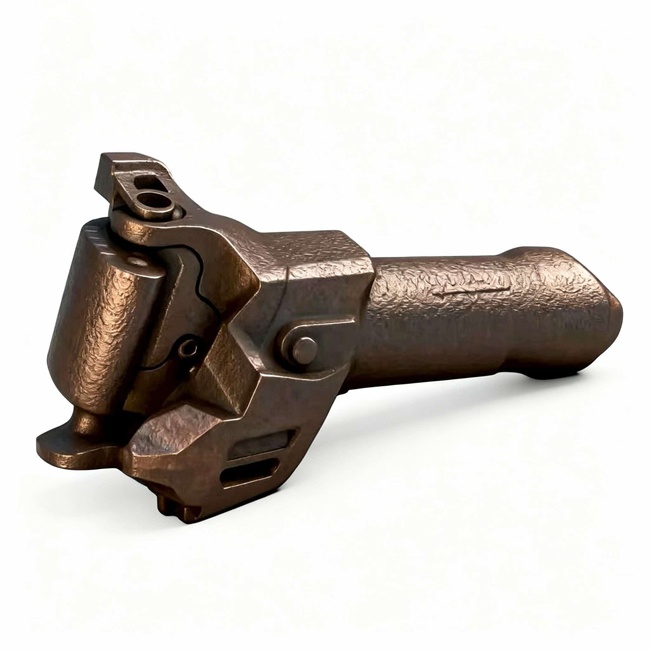

Railway AAR railway Coupler of F Type for freight wagon

Railway AAR railway Coupler of F Type for freight wagon

Product No.：2026723183014
Price：nogotiation
Material：high-quality carbon steel
Standard：AAR
mould charge：yes
Production time：75
weight：215
Package：Wooden Box
Online Inquiry

AAR F Type Railway Coupler for Freight Wagon – Product Technical Specification

1. Overview

The AAR Type F railway coupler (also referred to as F-type interlocking coupler) is a standard automatic knuckle coupler widely used in North American heavy-haul freight operations. Developed in 1947 based on the H-type tightlock coupler used on passenger cars, the F-type coupler was officially designated as an AAR standard coupler in 1954.

The coupler is a critical component of the draft gear system, serving to connect locomotives and vehicles or vehicles to vehicles, transmit traction and impact forces, and maintain a specified distance between coupled units. The complete draft gear system consists of the coupler, draft gear, yoke, follower plate, and other components, mounted in the centre sill at the vehicle end.

The Type F coupler is characterised by high structural strength, small coupling clearance, anti-creep mechanism, interlocking and automatic centering functions, reliable three-state operation, and excellent curve negotiation performance. As an interlocking coupler, it provides enhanced safety features that make it particularly suitable for heavy-haul and unit train applications.

2. Applicable Standards

AAR F-type couplers shall be designed, manufactured, and tested in compliance with the following AAR (Association of American Railroads) standards:

Standard	Title / Scope	Reference
AAR M-201	Material Standard – Grade E Cast Steel for Couplers
AAR S-106	Coupler Touch Profile Standard (10-A contour for E and E/F couplers)
AAR S-117	F-Type Interlock Coupler Profile Standard
AAR M-211	Manufacturing Standard for Couplers
AAR M-215	Coupler System Standards (covering E, E/F, F type coupler systems)

All F-type couplers are manufactured from Grade E cast steel in compliance with AAR M-201, with profile dimensions conforming to AAR S-117, and manufacturing processes adhering to AAR M-211.

3. Technical Specifications

3.1 General Specifications

Parameter	Specification
Coupler Type	AAR Type F – Interlocking Automatic Knuckle Coupler
Material	Grade E Cast Steel (AAR M-201)
Material Hardness	241–311 HBW
Service Life	5–8 years
Fatigue Life	Not less than 600,000 cycles
Impact Test	>27 J at -40°F (-40°C)
Operating Temperature Range	-34°C to +121°C (-30°F to +250°F)
Surface Treatment	Organic coatings, rust-inhibiting treatments, chrome-free zinc plating, electro-painting

3.2 Strength and Load Capacity

Parameter	Specification
Minimum Failure Load – Coupler Body	4005 kN
Minimum Failure Load – Knuckle	3430 kN

3.3 Dimensional and Clearance Specifications

Parameter	Specification
Coupling Line to Hook Shoulder Length	305 mm
Maximum Longitudinal Movement Clearance	9.5 mm
Touch Profile Gap Reduction vs. Type E	51% smaller than Type E coupler
Maximum Relative Angle (Between Coupler Heads)	Horizontal: 3.45°; Vertical: 2-0°
Maximum Longitudinal Swing Angle (On Vehicle)	13°
Maximum Vertical Swing Angle (On Vehicle)	Upward: 5.3°; Downward: 7°
Coupler Free Slack	0.37 inch (reduced compared to Type E system)

3.4 Free Slack Comparison

The Type F coupler features significantly reduced free slack compared to the Type E system:

Coupler Type	Free Slack
AAR Type E	Greater free slack (reference)
AAR Type F	0.37 inch

Note: Even rigid coupler systems must maintain some free slack to allow proper coupling under ice and snow accumulation conditions.

4. Structural Composition

The AAR F-type coupler consists of three main sections: coupler head, shank, and tail.

4.1 Coupler Head

The coupler head is the thick forward section of the coupler. It is equipped with the following internal components:

Component	Function
Knuckle	The rotating jaw that engages with the mating coupler; made of quenched and tempered Grade E steel
Knuckle Pivot Pin	Hinges the knuckle to the coupler head
Knuckle Lock	Secures the knuckle in the closed position
Knuckle Thrower	Assists in opening the knuckle during uncoupling
Lock-Lift Pin	Operates the locking mechanism

4.2 Shank

The shank is the intermediate section connecting the coupler head to the tail. Extended-shank variants (e.g., F70DE) are available for wide-wheelbase freight cars. E/F couplers combine the E-type coupler head with the F-type shank and tail, providing sufficient lateral swing for train curve negotiation.

4.3 Coupler Tail

The coupler tail is the rear section featuring a keyhole for connection with the yoke. Critical stress areas in the tail section feature strengthened materials and design enhancements for improved durability in heavy-haul operations.

4.4 Interlocking and Safety Features

Feature	Description
Anti-Creep Device	Primary anti-creep mechanism located below the coupler head to prevent disengagement during derailment
Auxiliary Interlocking Support	Additional interlocking device under the hook head
Interlocking Bush End and Pocket	Located on both sides of the coupler head for secure interlocking
Bottom Support Shelf	Front-end bottom support that prevents broken couplers from falling onto the rail
Automatic Centering	Self-centering function for reliable coupling
Three-State Operation	Reliable locked, unlocked, and fully open positions

Key Safety Benefit: The Type F coupler's anti-creep mechanism and interlocking features help maintain couplers and derailed cars in alignment, assisting in preventing over-turning and telescoping of cars during accidents.

5. F-Type Coupler Variants

The AAR F-type coupler series includes several variants to meet different operational requirements:

5.1 Standard F-Type Couplers

Model	Description
F70DE	Extended-shank variant engineered for heavy-haul freight operations; features reinforced draft gear structure and dual-rib interlock socket
F79DE	Long-body variant
F73BE	Standard variant
SF70DE	With top shelf

5.2 FR-Type Rotatable Couplers

FR-type rotatable couplers are developed on the basis of the F-type coupler to meet the requirements of coal and bulk goods unloading without uncoupling and tipping.

Model	Description
FR207E	Rotatable interlocking coupler
FR209E	Rotatable interlocking coupler; fully interchangeable with FR207E

FR-type couplers have been widely applied in heavy unit freight wagons, significantly improving transportation efficiency.

5.3 E/F Combination Couplers

E/F couplers are developed on the basis of E-type and F-type couplers to provide sufficient horizontal swing for train curve negotiation. They feature:

Head: E-type coupler head design
Shank and Tail: F-type coupler shank and tail design
Primary Application: Freight cars with long traction beams

Model	Description
E68DE	Standard E/F coupler
E69CE	Standard E/F coupler
SBE68DE	With bottom shelf
SE68DE	With top and bottom shelves

6. Key Advantages of AAR Type F Coupler

Advantage	Description
High Structural Strength	Grade E cast steel construction with minimum failure load of 4005 kN
Reduced Coupling Clearance	9.5 mm longitudinal clearance – 51% less than Type E coupler
Anti-Creep Protection	Primary anti-creep mechanism prevents disengagement during derailment
Interlocking Function	Dual interlocking devices ensure secure coupling
Automatic Centering	Self-centering for reliable automatic coupling
Excellent Curve Negotiation	Good curve passing performance with horizontal swing angle up to 13°
Enhanced Safety	Bottom support prevents broken couplers from falling onto rails
Rotatable Option	FR-type allows rotary dumping without uncoupling
Full Interchangeability	All AAR standard couplers are completely interchangeable regardless of manufacturer

7. Applications

The AAR F-type coupler and its variants are primarily used in the following applications:

Application	Recommended Coupler Type
Heavy-Haul Freight Operations	F70DE extended-shank
Unit Train Transport	F-type with reinforced draft gear
Rotary Dumping (Coal, Bulk Goods)	FR-type rotatable couplers
Long Traction Beam Freight Cars	E/F combination couplers
General Freight Service	Standard F-type couplers
North American Rail Networks	All AAR-compliant F-type variants

8. Supporting Components

The complete draft gear system for F-type couplers includes the following supporting components:

Component	Typical Model
Yoke	Y45AE (for F-type)
Draft Gear	MT-2
Follower Plate	Y46AE (for F-type)
Rotary Follower	For FR-type couplers

9. Quality Assurance and Testing

9.1 Material Certification

All couplers are manufactured from Grade E cast steel certified to AAR M-201.
Critical components (coupler body, knuckle, and lock) are quenched and tempered.

9.2 Performance Testing

Test	Requirement
Failure Load Test	Coupler body: ≥4005 kN; Knuckle: ≥3430 kN
Impact Test	>27 J at -40°F (-40°C)
Fatigue Test	≥600,000 cycles
Profile Inspection	Conforms to AAR S-117 "F Type Interlock Coupler Profile"
