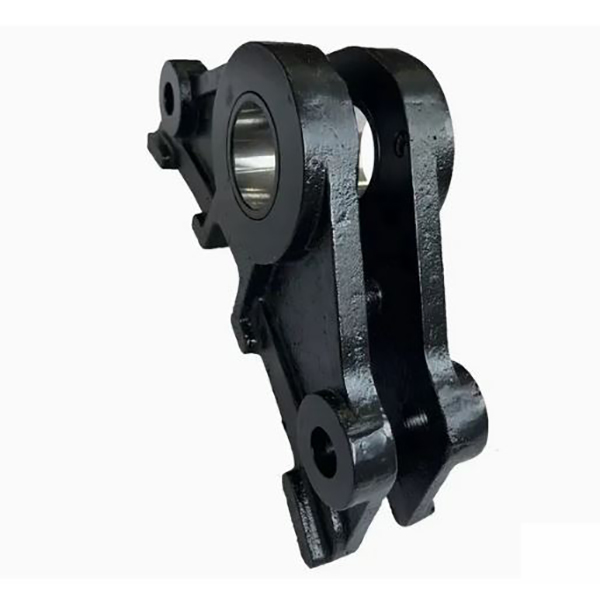

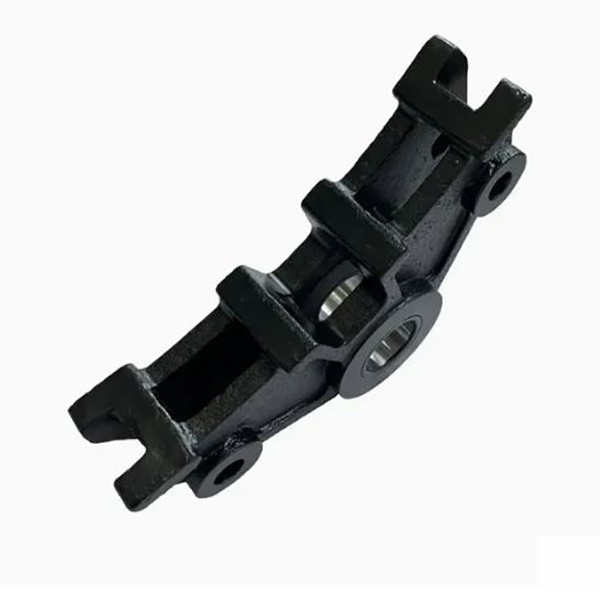

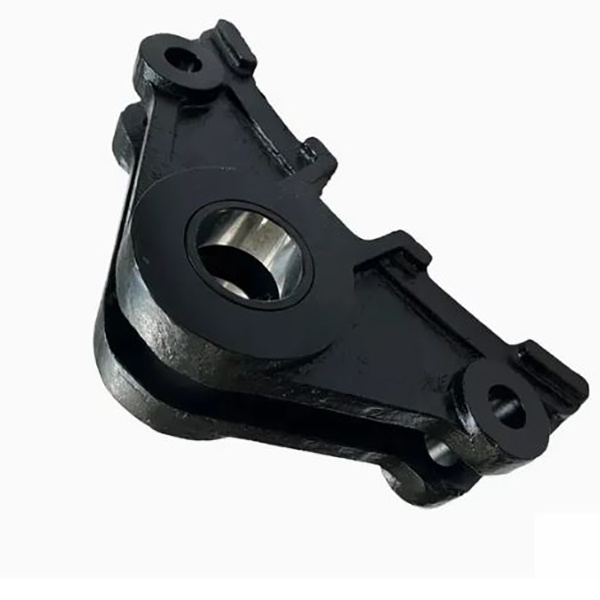

Railway Brake Shoe Holder of freight car braking system parts

Railway Brake Shoe Holder of freight car braking system parts

Product No.：2026715171132
Price：nogotiation
Material：high-quality carbon steel
Standard：AAR
mould charge：yes
Production time：60days
weight：45kgs
Package：Wooden Box
Online Inquiry

Railway Brake Shoe Holder of freight car braking system parts

A worn or cracked brake shoe holder can compromise the entire braking system and, in the worst case, may even cause derailment. Our railway brake shoe holder is engineered to eliminate these risks – delivering consistent braking force transmission and long service life under the harshest operating conditions.

What Is a Brake Shoe Holder and Why Does It Matter?

A brake shoe holder (also known as a brake block holder or brake head) is the critical mounting component that secures the brake shoe to the brake beam and transmits braking force from the rigging to the wheel tread. It acts as the interface between the brake shoe and the brake rigging – if the brake shoe holder fails, the brake shoe cannot engage the wheel properly.

Key functions of a brake shoe holder:

Securely mounts the brake shoe to the brake beam
Transmits braking force from the push rod to the brake shoe
Allows the brake shoe to "float" and maintain continuous contact with the wheel
Enables quick brake shoe replacement during maintenance

Technical Specifications – Built to Global Standards

Our brake shoe holders are manufactured to meet TB/T 39-1974 (Technical specifications for vehicle-use brake head), EN 15329:2015 (Railway applications – Braking – Brake block holder and brake shoe key for railway vehicles), and UIC Leaflet 542 interchangeability requirements.

Technical Specifications – Built to Global Standards

Parameter	Specification
Applicable Standards	TB/T 39-1974, EN 15329, UIC 542
Material	Cast steel / Forged steel / Cast iron (ferrous materials only)
Yield Strength	≥ 230 MPa
Compatible Brake Shoes	High friction (H) / Low friction (L)
Application	Freight cars, locomotives, passenger coaches
Brake Rigging Type	Suspension-type brake beam (吊挂式制动梁)
Corrosion Protection	Anti-rust coating per standard requirements

Left vs. Right Brake Shoe Holder – Get the Correct Orientation

Are you replacing a brake shoe holder and unsure whether you need a left or right type? This is one of the most common sourcing mistakes in railway maintenance. Our brake shoe holders are available in both left and right configurations, precisely as defined by TB/T 38-1999 (left brake shoe holder for freight cars) and TB/T 37-1999 (right brake shoe holder for freight cars).

Left Brake Shoe Holder – TB/T 38-1999 compliant
Right Brake Shoe Holder – TB/T 37-1999 compliant

⚠️ Never mix left and right types – they are designed for opposite sides of the bogie and are not interchangeable.

Material Options – Cast Steel, Forged Steel, or Cast Iron

Our brake shoe holders are manufactured exclusively from ferrous materials – cast iron, cast steel, or forged steel – as required by railway industry standards. Non-ferrous materials are not permitted for this critical safety component.

Cast Steel Brake Shoe Holder

High impact resistance
Excellent durability for heavy-duty freight car applications

Forged Steel Brake Shoe Holder

Superior strength-to-weight ratio
Ideal for high-speed and high-axle-load operations

Cast Iron Brake Shoe Holder

Cost-effective for standard applications
Good wear resistance and machinability

Common Failure Modes – How Our Design Prevents Them

What causes brake shoe holder failure? The most common issues include:

Torsion cracks in the hanger bracket – leading to brake system failure
Wear on one side due to geometrical defects – causing uneven braking
Excessive gap between the holder and adjusting head – reducing braking efficiency
Brake shoe key loosening due to vibration – risking component shedding

Our brake shoe holder features a torsion-free hanger design that eliminates torsion stress – one of the primary causes of bracket cracks and premature failure. Every unit undergoes type testing per EN 15329 requirements, including dynamic loading verification.

Interchangeability – UIC-Compliant for International Operations

Need brake shoe holders that work across different railway networks? Our products comply with UIC Leaflet 542 and UIC 50542 interchangeability requirements, ensuring seamless compatibility with brake rigging systems across main-line railways, regional railways, and private railways worldwide.

Every brake shoe holder is clearly marked with the interchangeability sign per standard requirements, making identification and replacement quick and error-free.
